10.1 Inch Automotive Display For Reference

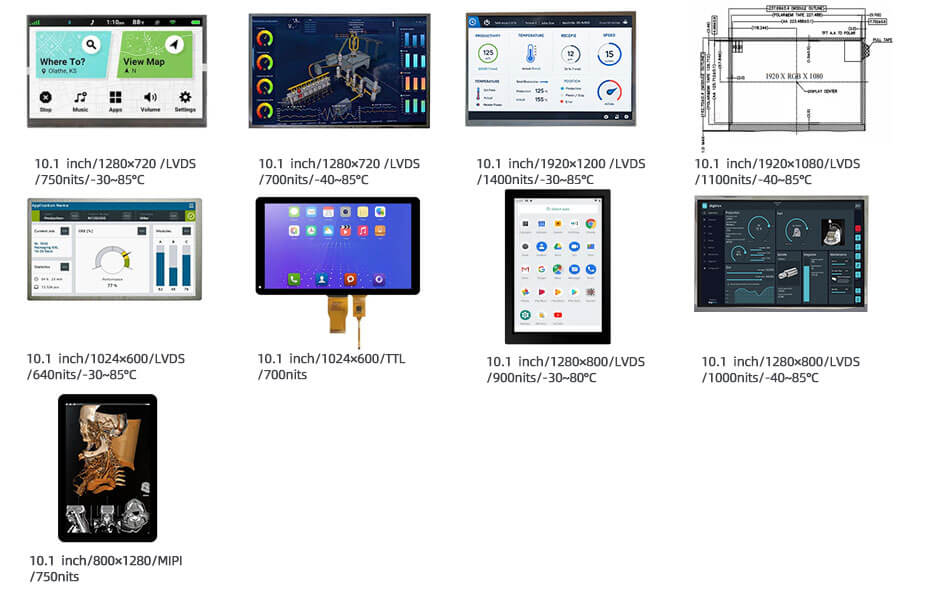

More 10.1 Inch Automotive Display For Reference
DJ101IA-07A (1280×720, LVDS, IPS, 750nits, -30~85°C, 238.6×148mm)
AV101HDM-N11 (1280×720, LVDS, IPS, 700nits, -40~85°C, 233.9×141.4mm)
C101UAN01.0 (1920×1200, LVDS, IPS, 1400nits, -30~85°C, 236.96×163mm)
COG-VLSZT115-01 (1920×1080 , LVDS, IPS, 1100nits, -40~85°C, 237.69×142.7mm)
M101GWT9 R3 (1024×600, LVDS, TN, 640nits, -30~85°C, 244×143mm)
ET101WS06-TT (1024×600, TTL, IPS, 700nits, -20~70°C, 252×150mm)
ET101WX10-T (1280×800, LVDS, IPS, 900nits, -30~80°C, 229.1×148.9mm)
TX26D207VM0AAA (1280×800, LVDS, IPS, 1000nits, -40~85°C, 231×153.5mm)
ET101WX15-TT (800×1280, MIPI, IPS, 750nits, -20~70°C, 166.5×249.7mm)

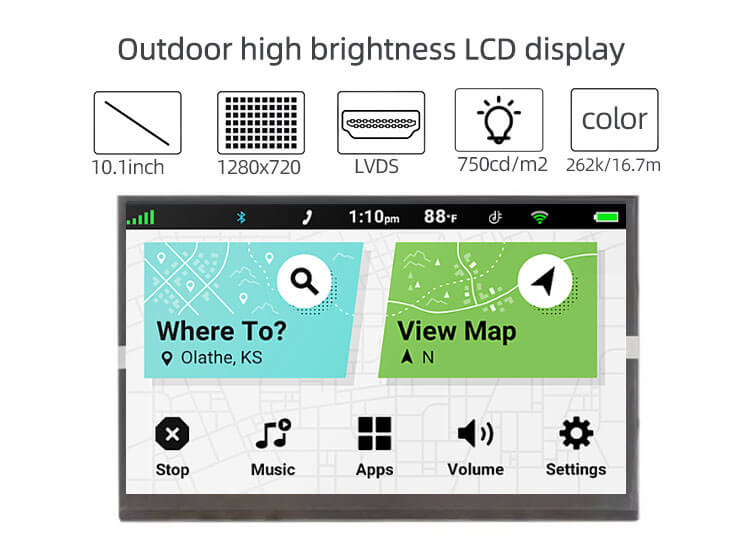

DJ101IA-07A supports display 1280(RGB)×720 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 223.68(W)×125.82(H) mm, outline size of 238.6(W)×148(H)×9.7(D) mm, viewing area size of 226.68(W)×128.82(H) mm, with surface treament of Antiglare, net weight of 330g (Max.). As a AAS, Normally Black, Transmissive LCM product, DJ101IA-07A can provides 750 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 70% (NTSC).
Product Link: https://www.youritech.com/products/dj101ia-07a-innolux-10-1-inch-tft-lcd-display-2208x1242-sunlight-readable-lvds-interface-lcd-panel.html

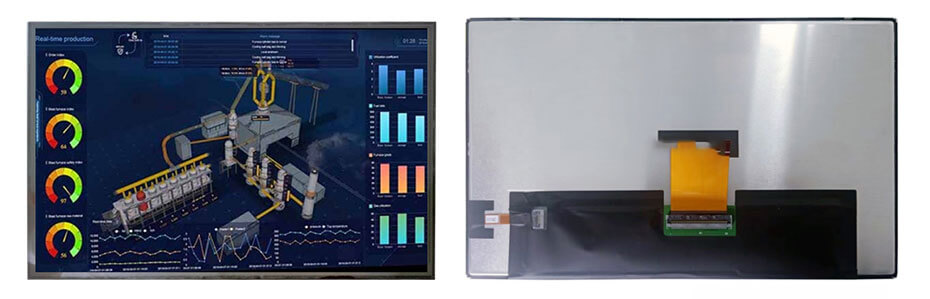

AV101HDM-N11 supports display 1280(RGB)×720 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 223.68(W)×125.82(H) mm, outline size of 233.9(W)×141.4(H)×12(D) mm, viewing area size of 226.68(W)×128.82(H) mm, with surface treament of Antiglare, net weight of 347±30g. As a ADS, Normally Black, Transmissive LCM product, AV101HDM-N11 can provides 700 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 8S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. AV101HDM-N11 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link:  https://www.youritech.com/products/10-1-inch-tft-lcd-display-1280x720-lvds-high-brightness-700nits-wide-temperature-lcd-display-for-automotive.html

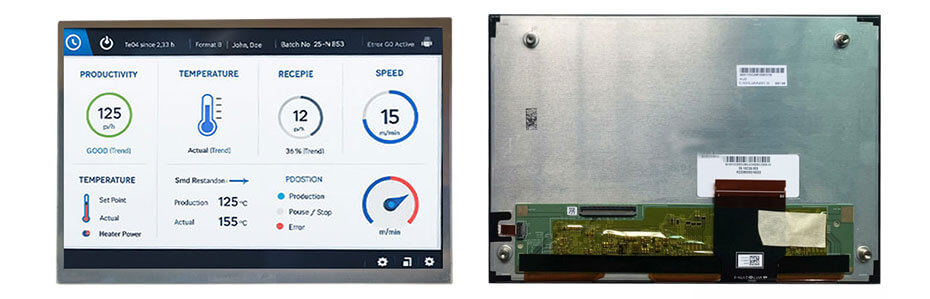

C101UAN01.0 is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without touch screen. C101UAN01.0 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 217.44(W)×135.9(H) mm, outline size of 236.96(W)×163(H) mm, net weight of 425±43g. As a AHVA, Normally Black, Transmissive LCM product, C101UAN01.0 can provides 1400 cd/m² display brightness 5000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type. C101UAN01.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link:  https://www.youritech.com/products/10-1-inch-tft-lcd-display-1920x1200-lvds-high-brightness-1400nits-wide-temperature-lcd-display-for-automotive.html

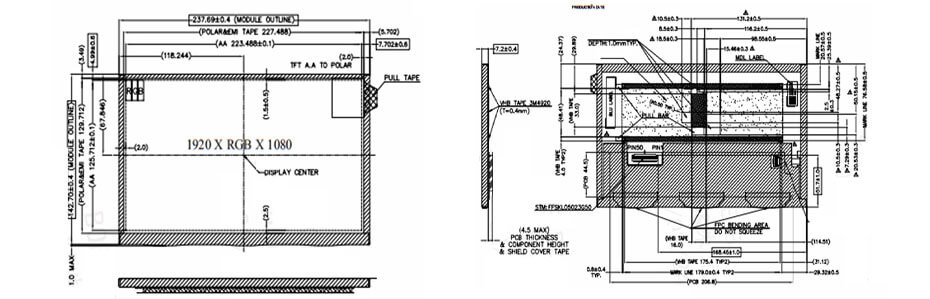

COG-VLSZT115-01 is a 10.1 inch diagonal a-Si TFT-LCD display screen, with an incorporated WLED lighting system, without backlight driver, without touch screen.COG-VLSZT115-01 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 223.488(W)×125.712(H) mm, outline size of 237.69(W)×142.7(H)×11.7(D) mm, with surface treament of Hard coating. As a ADS, Normally Black, Transmissive LCM product, COG-VLSZT115-01 can provides 1100 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/30/30 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 85% (NTSC). This product adopted 8S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. COG-VLSZT115-01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/10-1-inch-tft-lcd-display-1920x1080-lvds-high-brightness-1100nits-wide-temperature-lcd-display-for-automotive.html

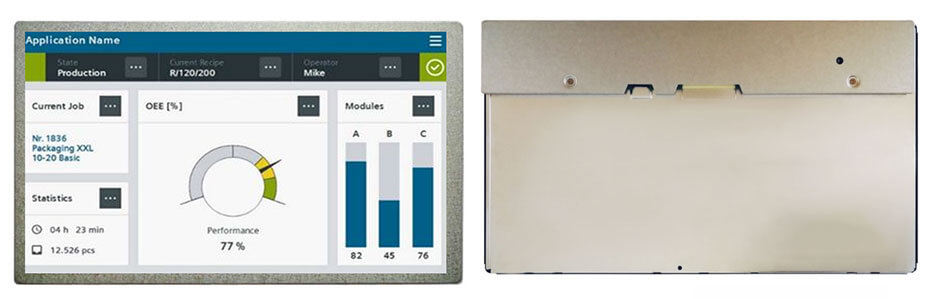

M101GWT9 R3 is a 10.1 inch diagonal a-Si TFT-LCD display screen product from IVO, with a built-in WLED backlight, With LED Driver, without touch screen. M101GWT9 R3 supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 222.72(W)×125.28(H) mm, outline size of 244(W)×143(H)×12.9(D) mm, viewing area size of 225.72(W)×128.28(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 400/440g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, M101GWT9 R3 can provides 640 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. M101GWT9 R3 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link:  https://www.youritech.com/products/10-1-inch-tft-lcd-display-1024x600-lvds-high-brightness-640nits-wide-temperature-lcd-display-for-automotive.html

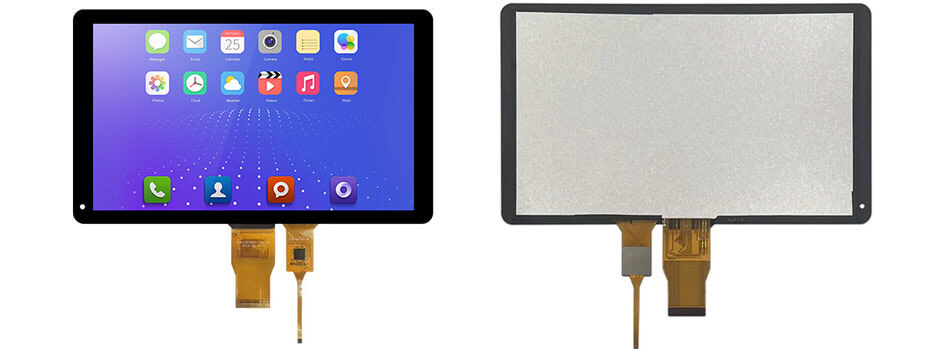

ET101WS06-TT is a 10.1-inch high-brightness IPS TFT LCD display with a 1024 × 600 resolution in transmissive mode. It supports a TTL interface and features capacitive touch functionality. The display delivers a typical brightness of 700 cd/m² with wide 85° viewing angles in all directions. It has an active area of 222.72 × 125.28 mm and an outline dimension of 252 × 150 mm, operating reliably from −20 to 70 °C (storage −30 to 80 °C).
Product Link:  https://www.youritech.com/products/10-1-inch-high-brightness-display-700nits-ips-1024x600-ttl-tft-lcd-display-with-capacitive-touch.html

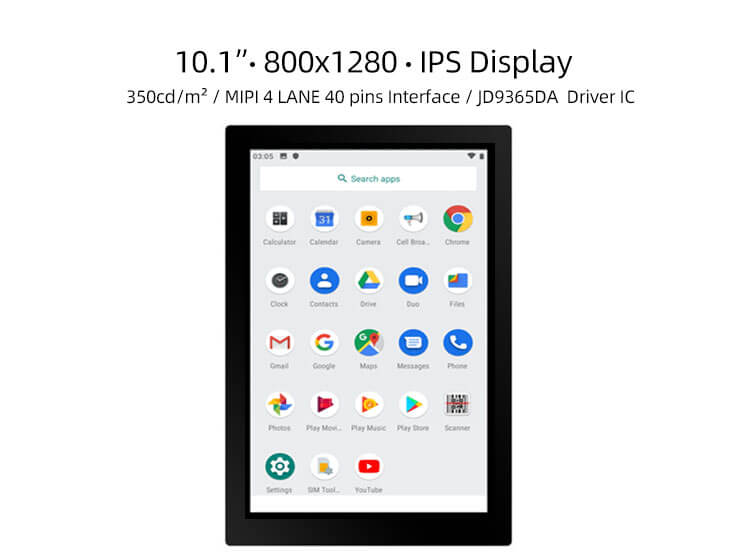

ET101WX10-T is a 10.1-inch TFT LCD display module featuring a resolution of 800 × 1280 and a 16:10 aspect ratio. It adopts IPS technology with a JD9365DA driver IC and supports a MIPI 4-lane interface. The module has an active area of 135.36 (W) × 216.58 (H) mm and an outline dimension of 143 (W) × 228.6 (H) × 2.7 (D) mm, delivering a typical brightness of 350 cd/m². It is a non-touch display suitable for medium-size display applications.
Product Link:  https://www.youritech.com/products/10-1-inch-tft-lcd-display-800x1280-jd9365da-mipi-4-lane-ips-lcd-panel.html

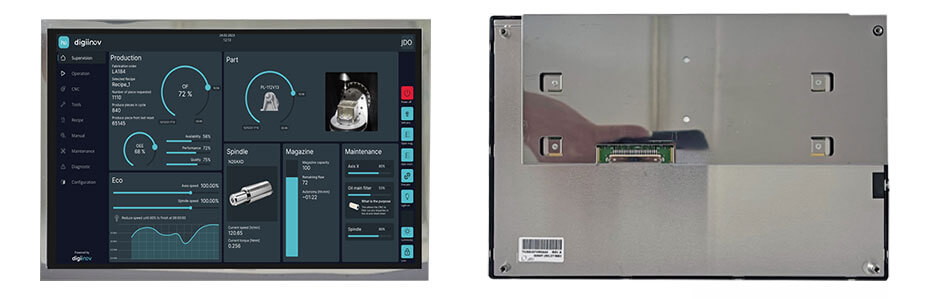

TX26D207VM0AAA is a 10.1 inch diagonal a-Si TFT-LCD display screen, with a built-in WLED backlight, With LED Driver, without touch screen. TX26D207VM0AAA supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 217.344(W)×135.84(H) mm, outline size of 231(W)×153.5(H)×11.07(D) mm, viewing area size of 220.344(W)×138.838(H) mm, net weight of 340g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TX26D207VM0AAA can provides 1000 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 65% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. TX26D207VM0AAA utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/10-1-inch-tft-lcd-display-1280x800-lvds-high-brightness-1000nits-wide-temperature-lcd-display-for-automotive.html

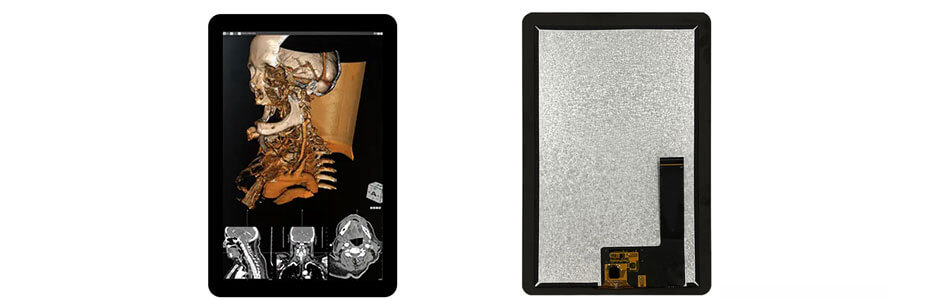

ET101WX15-TT is a 10.1-inch diagonal TFT-LCD display product with a transmissive display mode. ET101WX15-TT supports a resolution of 800×1280 with an aspect ratio of 10:16 (W:H), delivering clear and vertically oriented image performance, and utilizes a MIPI interface for signal transmission. It features an active area of 135.36(W)×216.58(H) mm and an outline size of 166.5(W)×249.7(H) mm. The display provides a brightness of 750 cd/m², suitable for automotive and high ambient light environments, and offers viewing angles of 80/80/80/80 (L/R/U/D). ET101WX15-TT operates within a temperature range of -20 to 70°C and can be stored at -30 to 80°C. This model does not include a touch function.
Product Link:  https://www.youritech.com/products/10-1-inch-tft-lcd-display-800x1280-mipi-high-brightness-750nits-lcd-display-for-automotive.html
