10.1 Inch TFT LCD Display 1920×1080 LVDS High Brightness 1100nits Wide Temperature LCD Display For Automotive

10.1 Inch Automotive Display Overview

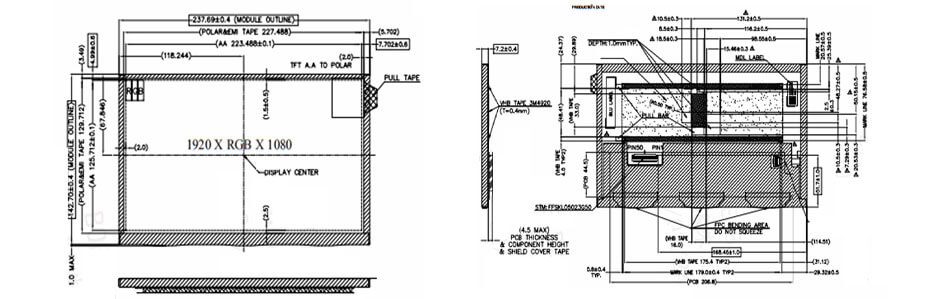

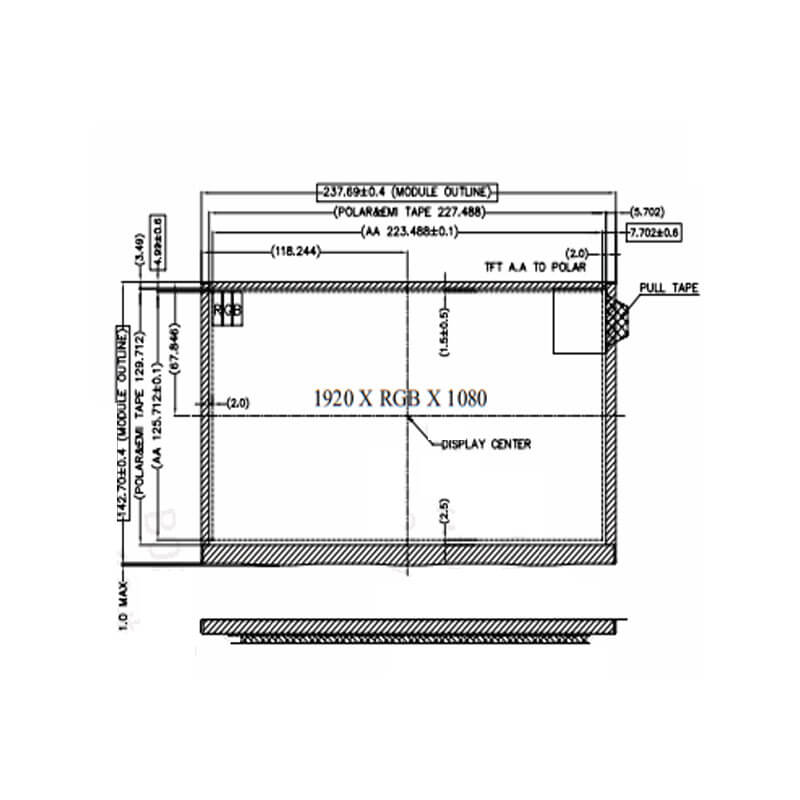

COG-VLSZT115-01 is a 10.1 inch diagonal a-Si TFT-LCD display screen, with an incorporated WLED lighting system, without backlight driver, without touch screen.COG-VLSZT115-01 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 223.488(W)×125.712(H) mm, outline size of 237.69(W)×142.7(H)×11.7(D) mm, with surface treament of Hard coating. As a ADS, Normally Black, Transmissive LCM product, COG-VLSZT115-01 can provides 1100 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/30/30 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 85% (NTSC). This product adopted 8S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. COG-VLSZT115-01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

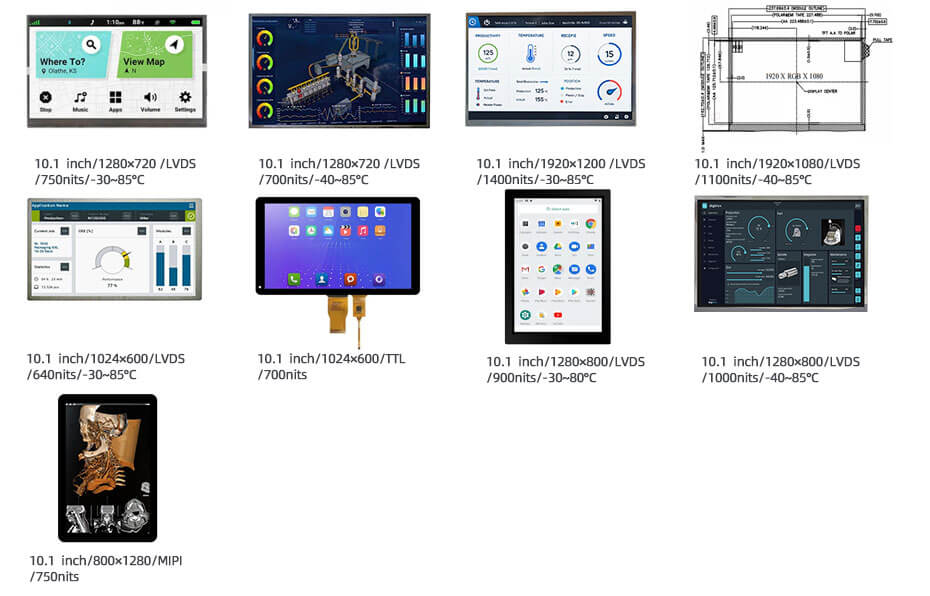

More 10.1 Inch Automotive Display For Reference
DJ101IA-07A (1280×720, LVDS, IPS, 750nits, -30~85°C, 238.6×148mm)
AV101HDM-N11 (1280×720, LVDS, IPS, 700nits, -40~85°C, 233.9×141.4mm)
C101UAN01.0 (1920×1200, LVDS, IPS, 1400nits, -30~85°C, 236.96×163mm)
COG-VLSZT115-01 (1920×1080 , LVDS, IPS, 1100nits, -40~85°C, 237.69×142.7mm)
M101GWT9 R3 (1024×600, LVDS, TN, 640nits, -30~85°C, 244×143mm)
ET101WS06-TT (1024×600, TTL, IPS, 700nits, -20~70°C, 252×150mm)
ET101WX10-T (1280×800, LVDS, IPS, 900nits, -30~80°C, 229.1×148.9mm)
TX26D207VM0AAA (1280×800, LVDS, IPS, 1000nits, -40~85°C, 231×153.5mm)
ET101WX15-TT (800×1280, MIPI, IPS, 750nits, -20~70°C, 166.5×249.7mm)
