7.1"-10.1" LCD Display (10.1")

10.1 Inch TFT LCD Display 800×1280 MIPI High Brightness 750nits LCD Display For Automotive

Part No.:ET101WX15-TT
Size:10.1″ inch
Resolution:800x1280
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:166.5x249.7mm
Active Area:135.36x216.58mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:750nits
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

10.1 Inch TFT LCD Display 800×1280 MIPI High Brightness 750nits LCD Display For Automotive Video

10.1 Inch TFT LCD Display 800×1280 MIPI High Brightness 750nits LCD Display For Automotive Overview

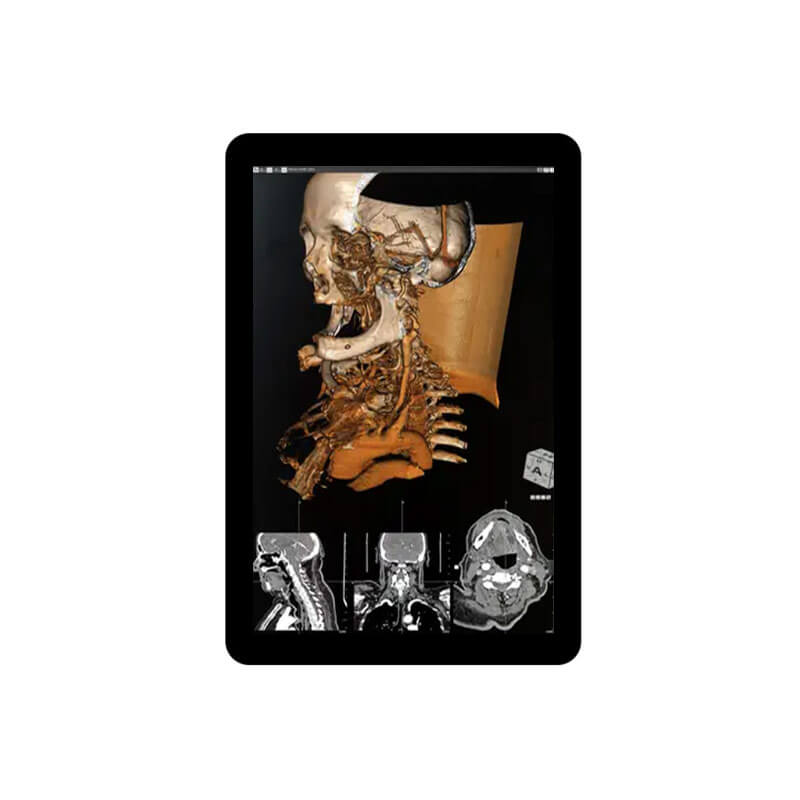

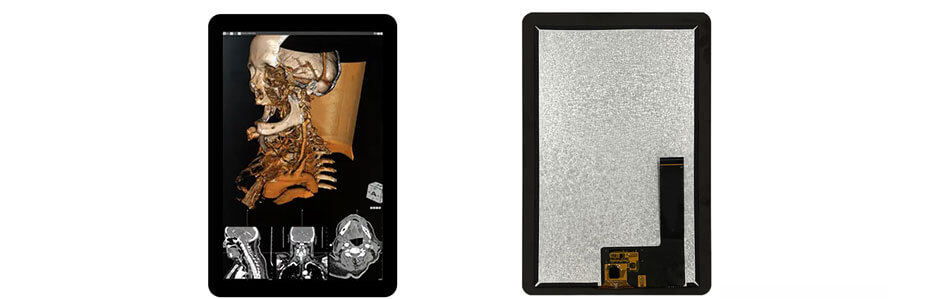

ET101WX15-TT is a 10.1-inch diagonal TFT-LCD display product with a transmissive display mode. ET101WX15-TT supports a resolution of 800×1280 with an aspect ratio of 10:16 (W:H), delivering clear and vertically oriented image performance, and utilizes a MIPI interface for signal transmission. It features an active area of 135.36(W)×216.58(H) mm and an outline size of 166.5(W)×249.7(H) mm. The display provides a brightness of 750 cd/m², suitable for automotive and high ambient light environments, and offers viewing angles of 80/80/80/80 (L/R/U/D). ET101WX15-TT operates within a temperature range of -20 to 70°C and can be stored at -30 to 80°C. This model does not include a touch function.

More 10.1 Inch Automotive Display For Reference
DJ101IA-07A (1280×720, LVDS, IPS, 750nits, -30~85°C, 238.6×148mm)
AV101HDM-N11 (1280×720, LVDS, IPS, 700nits, -40~85°C, 233.9×141.4mm)
C101UAN01.0 (1920×1200, LVDS, IPS, 1400nits, -30~85°C, 236.96×163mm)
COG-VLSZT115-01 (1920×1080 , LVDS, IPS, 1100nits, -40~85°C, 237.69×142.7mm)
M101GWT9 R3 (1024×600, LVDS, TN, 640nits, -30~85°C, 244×143mm)
ET101WS06-TT (1024×600, TTL, IPS, 700nits, -20~70°C, 252×150mm)
ET101WX10-T (1280×800, LVDS, IPS, 900nits, -30~80°C, 229.1×148.9mm)
TX26D207VM0AAA (1280×800, LVDS, IPS, 1000nits, -40~85°C, 231×153.5mm)
ET101WX15-TT (800×1280, MIPI, IPS, 750nits, -20~70°C, 166.5×249.7mm)
