7 Inch Automotive Display For Reference

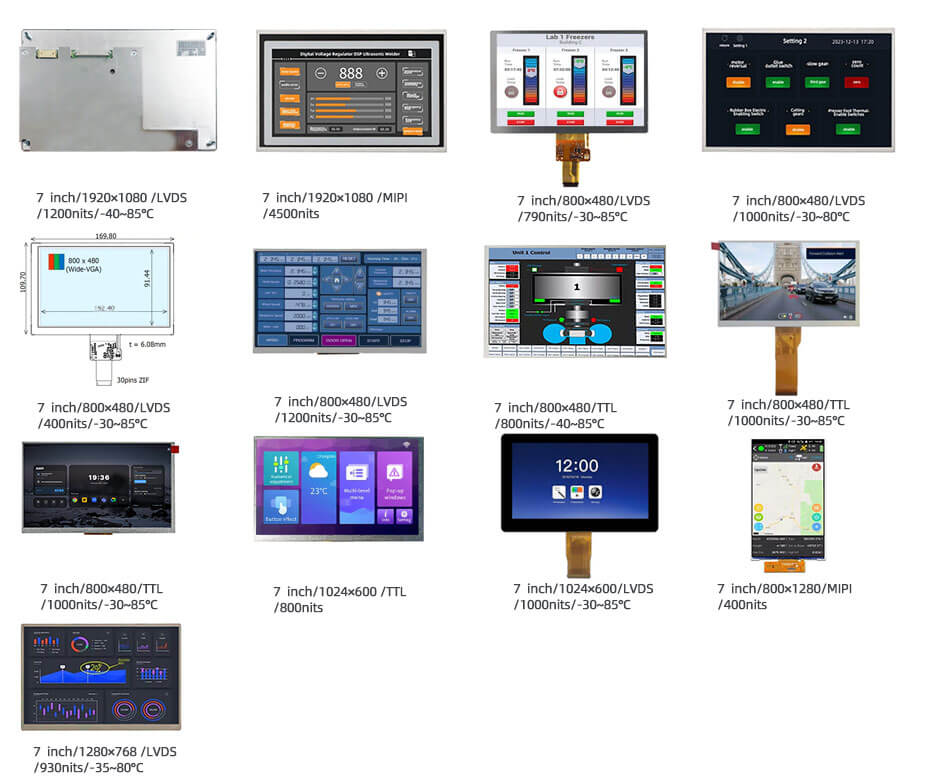

More 7 Inch Automotive Display For Reference
TX18D200VM0EAA (1920×1080, LVDS, IPS, 1200nits, -40~85°C, 169×104mm)
ET070FH01-H (1920×1080, MIPI, IPS, 4500nits, -20~70°C, 164.19×97.87mm)
COM70H7M24ULC (800×480, LVDS, VA, 790nits, -30~85°C, 169.8×109.7mm)
TX18D211VM0BXA (800×480, LVDS, IPS, 1000nits, -30~80°C, 170×113.3mm)
COM70H7M40ULC (800×480, LVDS, VA, 400nits, -30~85°C, 169.8×109.7mm)
COM70H7M40ULN (800×480, LVDS, VA, 1200nits, -30~85°C, 169.8×109.7mm)
TX18D210VM0BAA (800×480, TTL, IPS, 800nits, -40~85°C, 167.7×109.5mm)
TM070RDHG34-00 (800×480, TTL, TN, 1000nits, -30~85°C, 164.9×100mm)
P0700WVN1MA00 (800×480, TTL, TN, 1000nits, -30~85°C, 164.9×100mm)
ET070WS01-T (1024×600, TTL, IPS, 800nits, -20~70°C, 164.9×100mm)
ET070WS10-TC (1024×600, LVDS, IPS, 1000nits, -30~85°C, 179.34×109.89mm)
ET070WX03-T (800×1280, MIPI, IPS, 400nits, -20~70°C, 99.65×160.85mm)
DJ070IA-20B (1280×768, LVDS, IPS, 930nits, -35~80°C, 163.35×107.12mm)

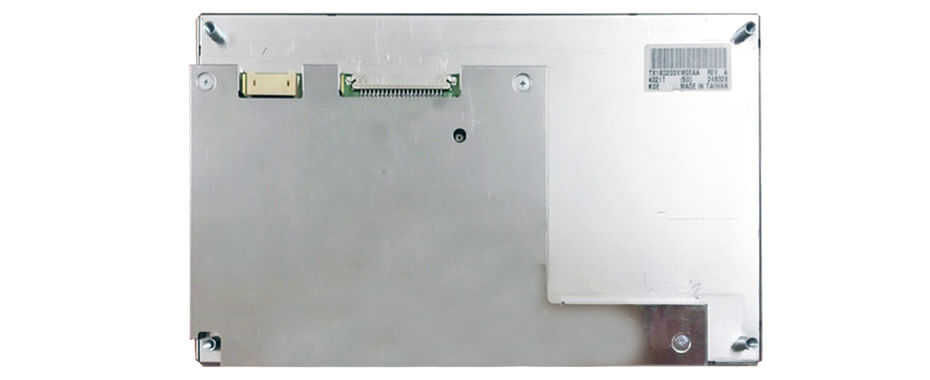

TX18D200VM0EAA supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe,it's pixel density is 313 PPI. As for mechanical detail, it features active area of 155.52(W)×87.48(H) mm, outline size of 169(W)×104(H)×10.3(D) mm, viewing area size of 158.5(W)×90.5(H) mm, net weight of 180g (Typ.). As a IPS Pro, Normally Black, Transmissive LCM product, TX18D200VM0EAA can provides 1200 cd/m² display brightness 1300:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 23 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 90% (DCI-P3). This product adopted 3S10P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. TX18D200VM0EAA utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/7-inch-tft-lcd-display-1920x1080-lvds-high-brightness-1200nits-wide-temperature-lcd-display-for-automotive.html

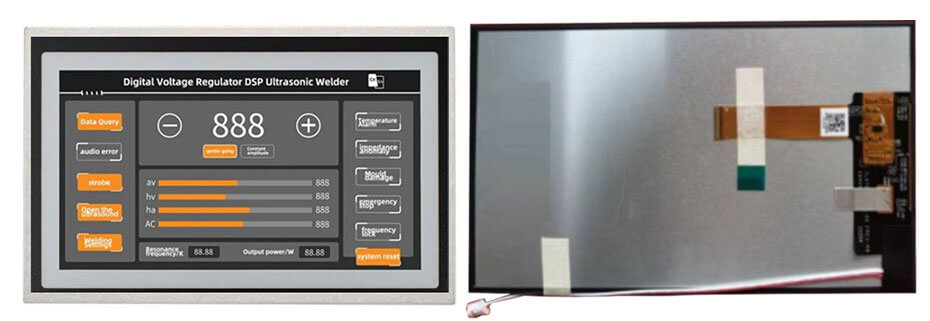

ET070FH01-H is a 7-inch diagonal TFT-LCD display product with a transmissive display mode and integrated In-Cell touch functionality. ET070FH01-H supports a resolution of 1920×1080 (FHD) with an aspect ratio of 16:9 (W:H), delivering high-definition image performance, and utilizes a MIPI interface for signal transmission. It features an active area of 154.368(W)×85.92(H) mm and an outline dimension of 164.19(W)×97.87(H) mm. The display provides an ultra-high brightness of 4500 cd/m², suitable for demanding automotive and strong sunlight environments, and offers wide viewing angles of 85/85/85/85 (L/R/U/D). ET070FH01-H operates within a temperature range of -20 to 70°C and can be stored within -30 to 80°C. This model includes touch functionality.
Product Link: https://www.youritech.com/products/7-inch-tft-lcd-display-1920x1080-mipi-high-brightness-4500nits-lcd-display-with-in-cell-touch-for-automotive.html

COM70H7M24ULC supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 152.4(W)×91.44(H) mm, outline size of 169.8(W)×109.7(H)×6.11(D) mm, with surface treament of Hard coating (3H), net weight of 170g (Typ.). As a VA, Normally Black, Transflective LCM product, COM70H7M24ULC can provides 790 cd/m² display brightness 700:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 60/40 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 8S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. COM70H7M24ULC utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/com70h7m24ulc-7-inch-800x480-lvds-interface-original-tft-lcd-transflective-lcd-panel-display-for-industrial-outdoor.html

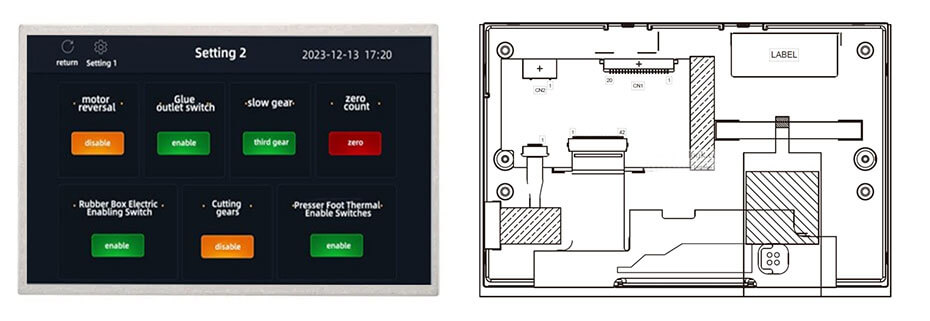

TX18D211VM0BXA supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 152.4(W)×91.44(H) mm, outline size of 170(W)×113.3(H)×22(D) mm, with surface treament of Hard coating (7H), net weight of 290g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TX18D211VM0BXA can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. TX18D211VM0BXA utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/7-inch-tft-lcd-display-800x480-lvds-high-brightness-1000nits-wide-temperature-lcd-display-with-capacitive-touch-for-automotive.html

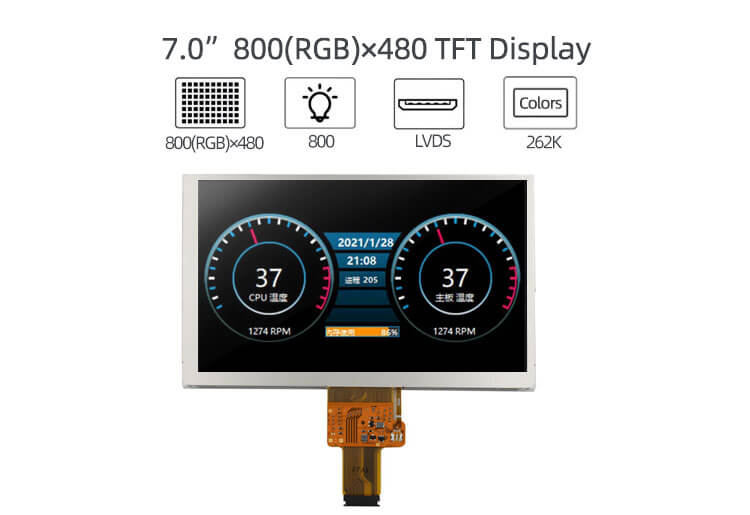

COM70H7M40ULC supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 169.8(W)×109.7(H)×6.11(D) mm, with surface treament of Hard coating (3H), net weight of 170g (Typ.). As a VA, Normally Black, Transflective LCM product, COM70H7M40ULC can provides 400 cd/m² display brightness 700:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM70H7M40ULC utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/com70h7m40ulc-7-inch-transflective-display-800x480-lvds-wide-temperature-sunlight-readable-lcd-display-for-handheld-pda.html

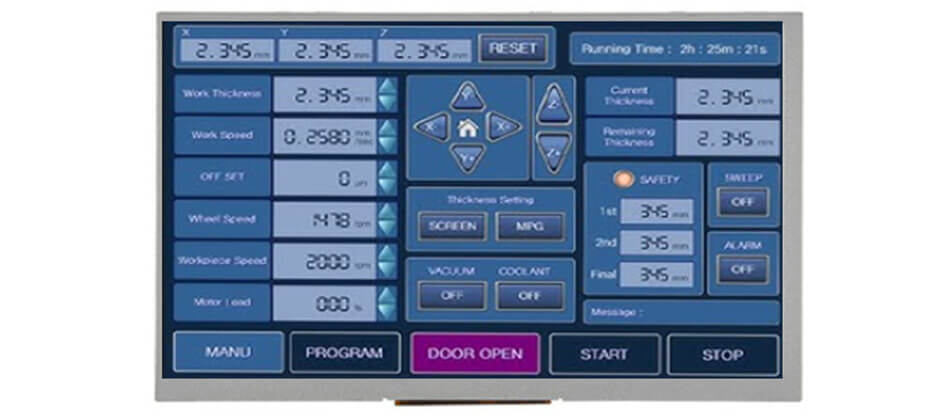

COM70H7M40ULN supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 152.4(W)×91.44(H) mm, outline size of 169.8(W)×109.7(H)×6.11(D) mm, with surface treament of Hard coating (3H), net weight of 170g (Typ.). As a VA, Normally Black, Transflective LCM product, COM70H7M40ULN can provides 1200 cd/m² display brightness 700:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. COM70H7M40ULN utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/com70h7m40uln-7-inch-transflective-display-800x480-lvds-wide-temperature-sunlight-readable-lcd-display-for-handheld-pda.html

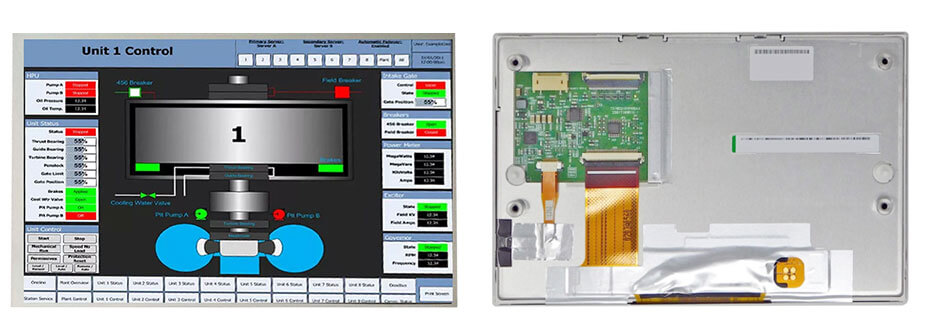

TX18D210VM0BAA supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 152.4(W)×91.44(H) mm, outline size of 167.7(W)×109.5(H)×20.3(D) mm, viewing area size of 156.2(W)×94.5(H) mm, net weight of 214g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TX18D210VM0BAA can provides 800 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. TX18D210VM0BAA utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/7-inch-tft-lcd-display-800x480-parallel-rgb-high-brightness-800nits-wide-temperature-lcd-display-for-automotive.html

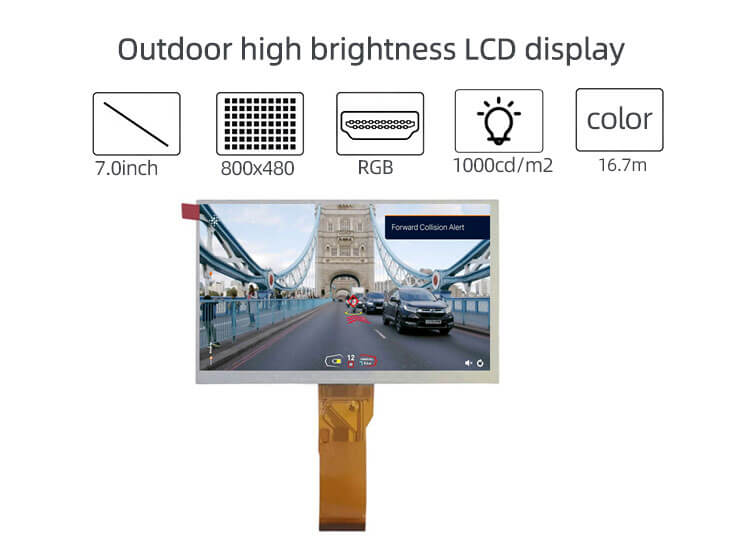

TM070RDHG34-00 is a 7.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.TM070RDHG34-00 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 154.08(W)×85.92(H) mm, outline size of 164.9(W)×100(H)×6(D) mm, viewing area size of 157.08(W)×89.39(H) mm, with surface treament of Antiglare, net weight of TBD. As a TN, Normally White, Transmissive LCM product, TM070RDHG34-00 can provides 1000 cd/m² display brightness 800:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC).
Product Link: https://www.youritech.com/products/tianma-tm070rdhg34-original-7-inch-tft-lcd-display-800x480-sunlight-readable-wide-temperature-lcd-panel.html

TX18D210VM0BAA is a 7.0 inch diagonal LTPS TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. TX18D210VM0BAA supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 167.7(W)×109.5(H)×20.3(D) mm, viewing area size of 156.2(W)×94.5(H) mm, net weight of 214g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TX18D210VM0BAA can provides 800 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. TX18D210VM0BAA utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/7-inch-tft-lcd-display-800x480-parallel-rgb-high-brightness-800nits-wide-temperature-lcd-display-for-automotive.html

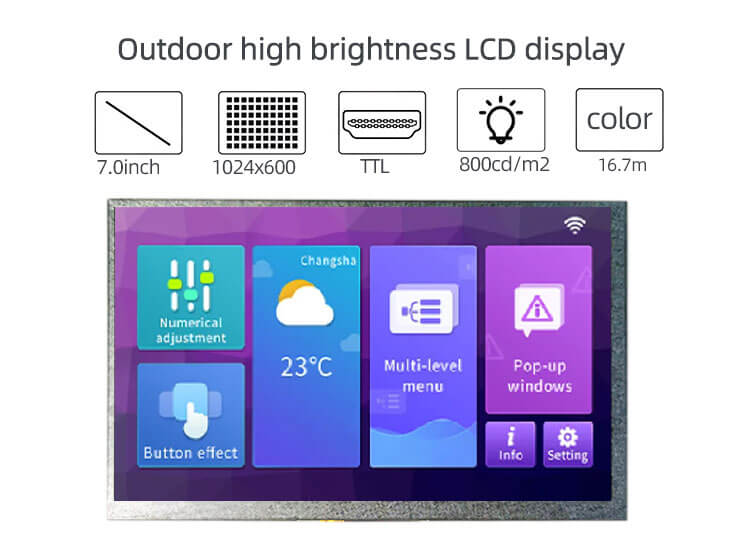

ET070WS01-T is a 7.0 inch diagonal TFT LCD display module product, it supports a resolution of 1024×600 with RGB interface and IPS technology for wide viewing performance. ET070WS01-T features transmissive display mode and delivers a high brightness of 800 cd/m² for improved visibility in various lighting conditions. It provides an active area of 154.21(W) × 85.92(H) mm and an outline dimension of 164.9(W) × 100(H) mm, with a wide viewing angle of 85°/85°/85°/85° (L/R/U/D). The operating temperature range is -20°C to 70°C, with a storage temperature range of -30°C to 80°C. This model does not include a touch panel, and is designed for robust industrial and embedded display applications.
Product Link:  https://www.youritech.com/products/7-inch-tft-lcd-display-1024x600-rgb-interface-ips-high-brightness-lcd-panel.html

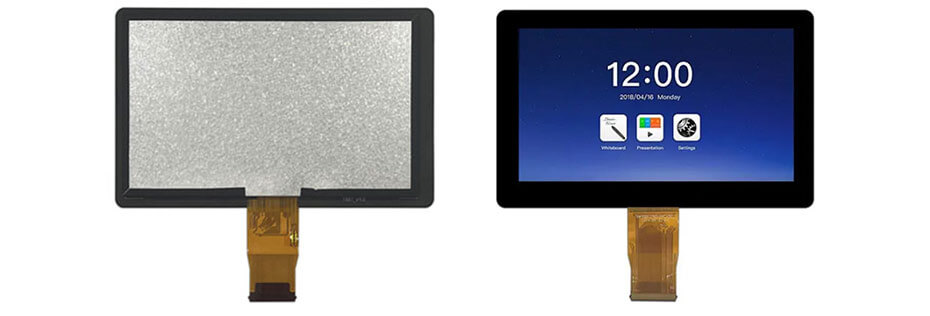

ET070WS10-TC is a 7-inch TFT LCD module featuring an IPS display with a resolution of 1024x600. It utilizes an RGB panel interface for connectivity. This high-brightness LCD module offers an impressive luminance of 1000 nits, making it suitable for outdoor or brightly lit environments. Specific details regarding the display mode are not provided. The module incorporates GG (Glass-Glass) touch technology, enabling precise and responsive touch input. Its compact size and high brightness make it ideal for various applications requiring clear visibility and interactive functionality.
Product Link: https://www.youritech.com/products/7-inch-tft-lcd-display-1024x600-hx8282a11-rgb-1000nits-high-brightness-ips-lcd-module-with-gg-touch.html

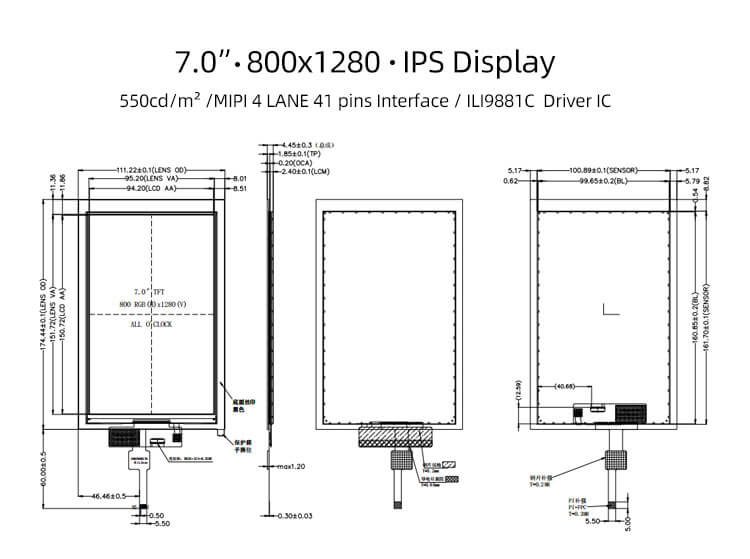

ET070WX03-T is a 7-inch diagonal TFT-LCD display product with a transmissive display mode. ET070WX03-T supports a resolution of 800×1280 with an aspect ratio of 10:16 (W:H), delivering a vertically oriented high-definition display performance, and utilizes a MIPI interface for signal transmission. It features an active area of 94.2(W)×150.72(H) mm and an outline dimension of 99.65(W)×160.85(H) mm. The display provides a brightness of 400 cd/m², suitable for automotive applications, and adopts IPS technology for wide viewing angles. ET070WX03-T operates within a temperature range of -20 to 70°C and can be stored within -30 to 80°C. This model does not include a touch function.
Product Link:  https://www.youritech.com/products/7-inch-tft-lcd-display-800x1280-mipi-lcd-display-for-automotive.html

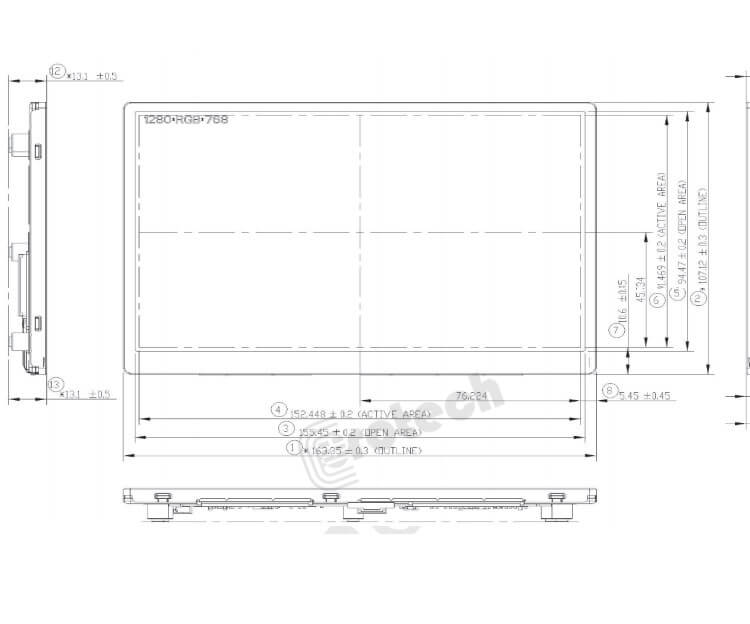

DJ070IA-20B is a 7.0 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, without touch screen.DJ070IA-20B supports display 1280(RGB)×768 (WXGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 152.4(W)×91.44(H) mm, outline size of 163.35(W)×107.12(H)×13.6(D) mm, viewing area size of 155.45(W)×94.47(H) mm, with surface treament of Antiglare, Antireflection, net weight of 180±18g. As a AAS, Normally Black, Transmissive LCM product, DJ070IA-20B can provides 930 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC).
Product Link:  https://www.youritech.com/products/innolux-dj070ia-20b-7-inch-tft-lcd-display-lvds-1280x768-wide-temperature-high-brightness-lcd-module-for-outdoor.html
