8 Inch Automotive Display For Reference

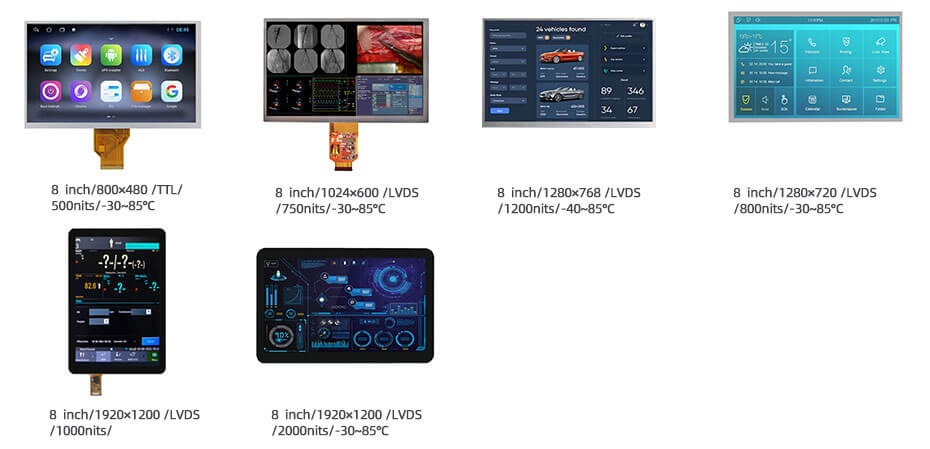

8 Inch Automotive Display Overview

AT080TN64 (800×480, TTL, IPS, 500nits, -30~85°C, 192.8×116.9mm)
DJ080IA-10A (1024×600, LVDS, IPS, 750nits, -30~85°C, 192.8×116.9mm)
TX20D207VM0AAA (1280×768, LVDS, IPS, 1200nits, -40~85°C, 189.5×119.4mm)
TM080JDKP96 (1280×720, LVDS, IPS, 800nits, -30~85°C, 192.8×116.9mm)
ET080WU11-TT (1920×1200, LVDS, IPS, 1000nits, -20~70°C, 181.7×119.8mm)
ET080WU01-RCTT (1920×1200, LVDS, IPS, 2000nits, -30~85°C, 179.96×119.92mm)

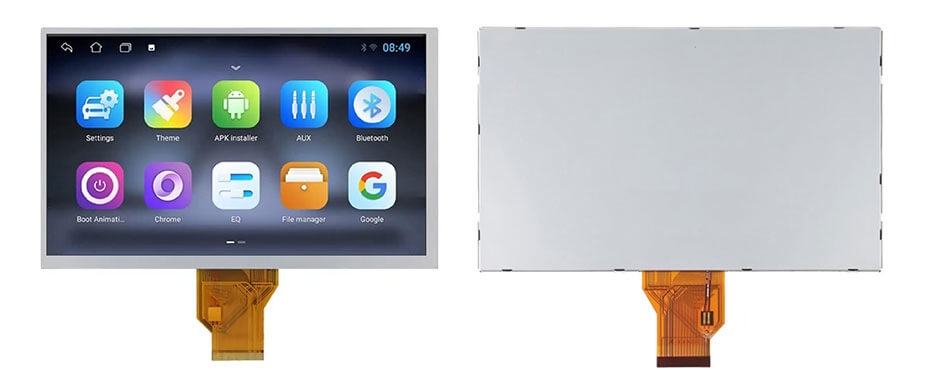

AT080TN64 is a 8.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, WLED Backlight, U/D,L/R Reverse, 6/8 bit, Matte.
Product Link: https://www.youritech.com/products/8-inch-tft-lcd-display-800x480-parallel-rgb-high-brightness-500nits-wide-temperature-lcd-display-for-automotive.html

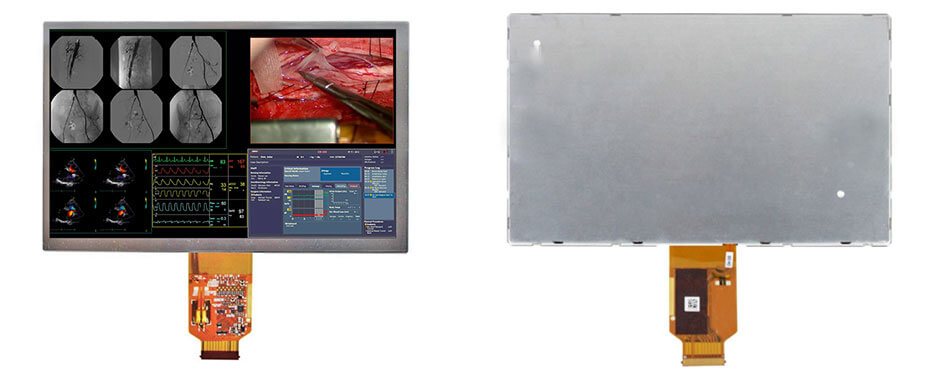

DJ080IA-10A is a 8.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. DJ080IA-10A supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H)×6.7(D) mm, viewing area size of 179.64(W)×102.36(H) mm, with surface treament of Antiglare, net weight of 225g (Max.). As a AAS, Normally Black, Transmissive LCM product, DJ080IA-10A can provides 750 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/10 (Typ.)(Tr/Td ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. DJ080IA-10A utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/12.8/24.0/-5.6V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
Product Link:  https://www.youritech.com/products/8-inch-tft-lcd-display-1024x600-lvds-high-brightness-600nits-wide-temperature-lcd-display-for-automotive.html

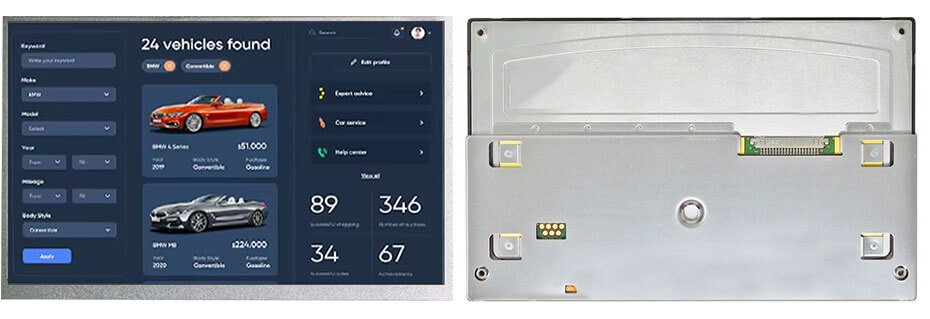

TX20D207VM0AAA is a 8.0 inch diagonal a-Si TFT-LCD display screen product from KOE, with a built-in WLED backlight, With LED Driver, without touch screen. TX20D207VM0AAA supports display 1280(RGB)×768 (WXGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 173.952(W)×104.371(H) mm, outline size of 189.5(W)×119.4(H)×12.1(D) mm, viewing area size of 177.0(W)×107.4(H) mm, net weight of 254g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TX20D207VM0AAA can provides 1200 cd/m² display brightness 1400:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 19 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. TX20D207VM0AAA utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/8-inch-tft-lcd-display-1280x768-lvds-high-brightness-1200nits-wide-temperature-lcd-display-for-automotive.html

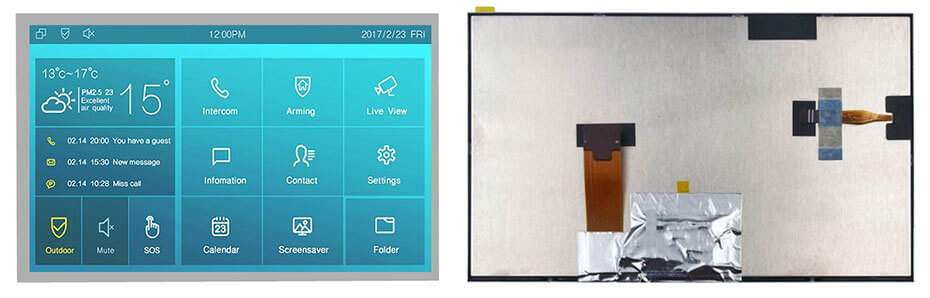

TM080JDKP96 supports display 1280(RGB)×720 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H)×8.8(D) mm, viewing area size of 179.64(W)×102.36(H) mm, with surface treament of Hard coating, net weight of 183g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TM080JDKP96 can provides 800 cd/m² display brightness 1300:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 74% (NTSC). This product adopted 6S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM080JDKP96 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/8-inch-tft-lcd-display-1280x720-lvds-high-brightness-800nits-wide-temperature-lcd-display-for-automotive.html

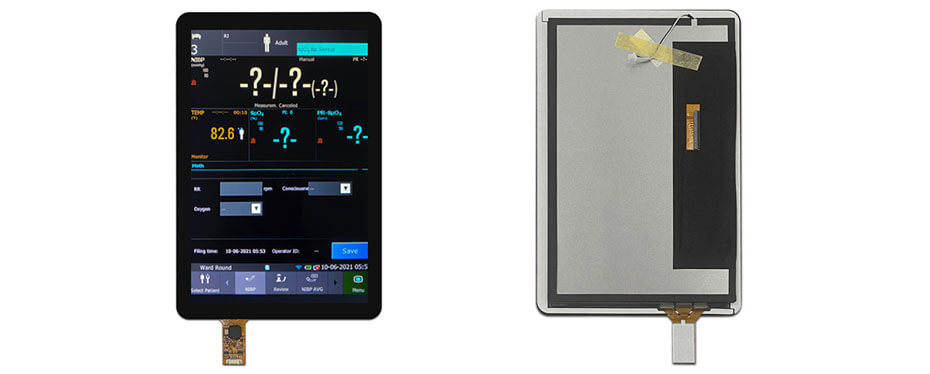

ET080WU11-TT is an 8-inch high-brightness IPS TFT LCD display with a 1920×1200 resolution and LVDS interface. This transmissive display provides a typical brightness of 1000 cd/m² and 85° viewing angles in all directions. It features an active area of 172.22×107.64 mm within an outline dimension of 181.7×119.8 mm. Designed for broad temperature operation, it supports –20 °C to 70 °C during use and –30 °C to 80 °C in storage, and it includes capacitive touch functionality.
Product Link: https://www.youritech.com/products/8-inch-high-brightness-display-1000nits-ips-1920x1200-lvds-tft-lcd-display-with-capacitive-touch.html

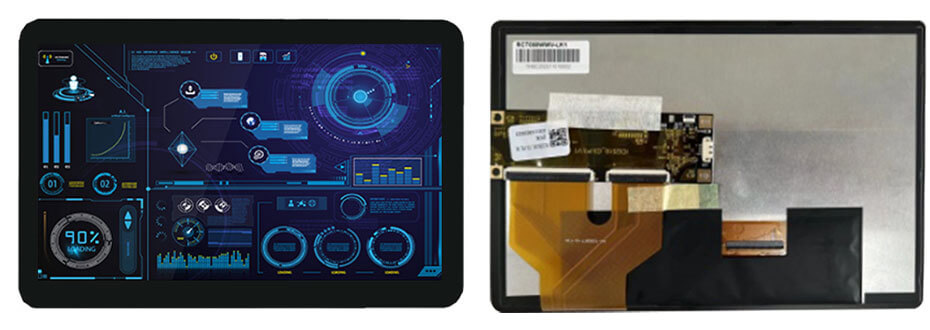

ET080WU01-RCTT is an 8-inch wide-temperature, high-brightness TFT LCD display module. It features a high resolution of 1920x1200, utilizes an LVDS interface, and delivers a high brightness of 1700 nits. The module supports a wide operating temperature range of -30°C to 85°C, with the same range for storage. Its active display area measures 172.22x107.64 mm, housed within an outline dimension of 191.32x129.24 mm. The display provides symmetrical and wide viewing angles of 85/85/85/85 (L/R/U/D) and integrates a capacitive touch function.
Product Link: https://www.youritech.com/products/8-inch-wide-temperature-lcd-display-1920x1200-lvds-30c-to-85c-high-brightness-1700nits-tft-lcd-display-with-capacitive-touch.html

Automotive Display Solution
