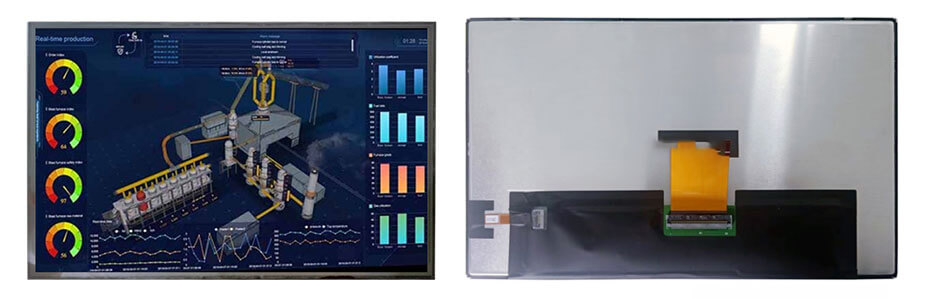

10.1 Inch TFT LCD Display 1280×720 LVDS High Brightness 700nits Wide Temperature LCD Display For Automotive

10.1 Inch Automotive Display Overview

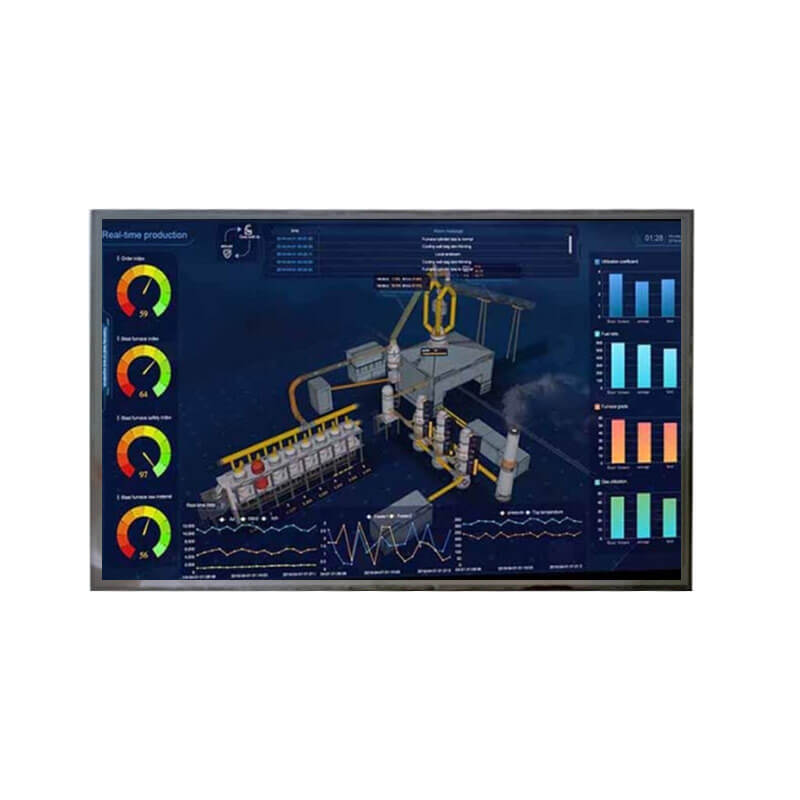

AV101HDM-N11 supports display 1280(RGB)×720 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 223.68(W)×125.82(H) mm, outline size of 233.9(W)×141.4(H)×12(D) mm, viewing area size of 226.68(W)×128.82(H) mm, with surface treament of Antiglare, net weight of 347±30g. As a ADS, Normally Black, Transmissive LCM product, AV101HDM-N11 can provides 700 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 8S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. AV101HDM-N11 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

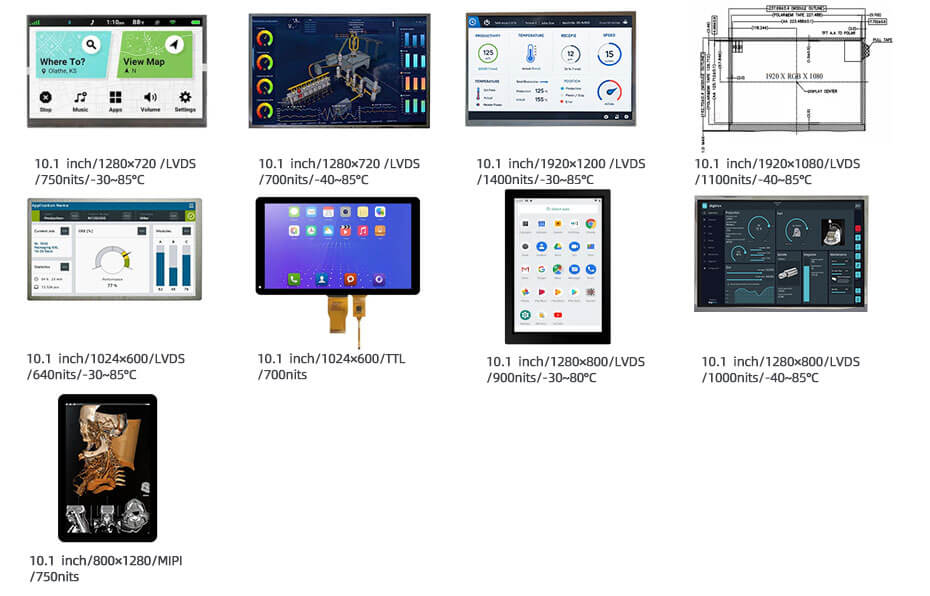

More 10.1 Inch Automotive Display For Reference
DJ101IA-07A (1280×720, LVDS, IPS, 750nits, -30~85°C, 238.6×148mm)
AV101HDM-N11 (1280×720, LVDS, IPS, 700nits, -40~85°C, 233.9×141.4mm)
C101UAN01.0 (1920×1200, LVDS, IPS, 1400nits, -30~85°C, 236.96×163mm)
COG-VLSZT115-01 (1920×1080 , LVDS, IPS, 1100nits, -40~85°C, 237.69×142.7mm)
M101GWT9 R3 (1024×600, LVDS, TN, 640nits, -30~85°C, 244×143mm)
ET101WS06-TT (1024×600, TTL, IPS, 700nits, -20~70°C, 252×150mm)
ET101WX10-T (1280×800, LVDS, IPS, 900nits, -30~80°C, 229.1×148.9mm)
TX26D207VM0AAA (1280×800, LVDS, IPS, 1000nits, -40~85°C, 231×153.5mm)
ET101WX15-TT (800×1280, MIPI, IPS, 750nits, -20~70°C, 166.5×249.7mm)
