9 Inch Automotive Display For Reference

More 9 Inch Automotive Display For Reference
TM090JDKP01 (1280×720, LVDS, IPS, 1100nits, -40~85°C, 211.5×128.08mm)
M090AWP4 R0 (800×480, TTL, TN, 750nits, -30~85°C, 210.82×126.96mm)
HSD090JFW1-A11 (1024×600, LVDS, IPS, 500nits, -30~85°C, 211.1×126.5mm)
ET090BA01-GA (1920×384, LVDS, IPS, 3000nits, -30~85°C, 235.8×55.8mm)

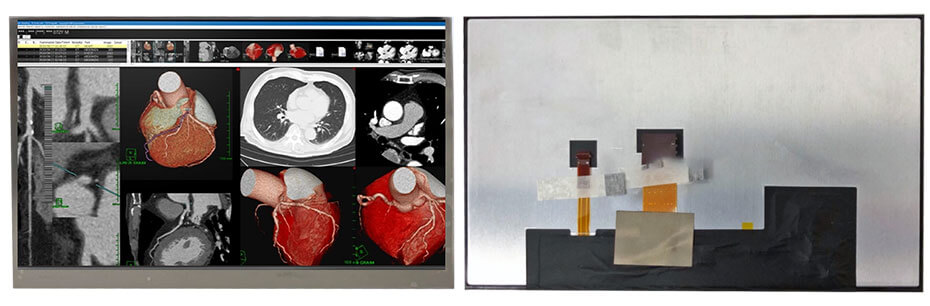

TM090JDKP01 is a 9.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. TM090JDKP01 supports display 1280(RGB)×720 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 198.72(W)×111.78(H) mm, outline size of 211.5(W)×128.08(H)×10.2(D) mm, viewing area size of 201.72(W)×114.78(H) mm, net weight of 272±27g. As a SFT, Normally Black, Transmissive LCM product, TM090JDKP01 can provides 1100 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. TM090JDKP01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link:  https://www.youritech.com/products/9-inch-tft-lcd-display-1280x720-lvds-high-brightness-1100nits-wide-temperature-lcd-display-for-automotive.html

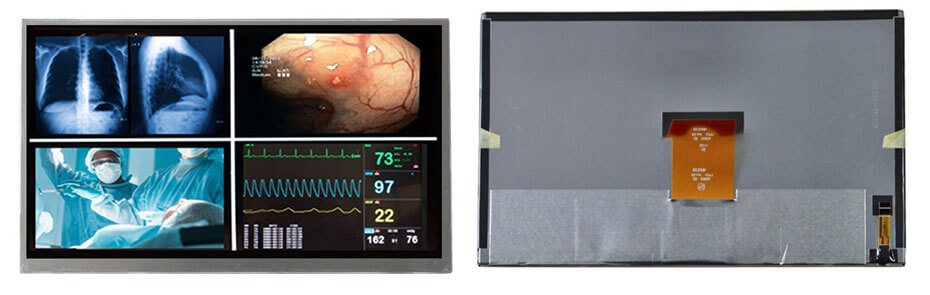

M090AWP4 R0 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 198(W)×112.08(H) mm, outline size of 210.82(W)×126.96(H)×6.4(D) mm, viewing area size of 200.2(W)×114.28(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 251g (Max.). As a TN, Normally White, Transmissive LCM product, M090AWP4 R0 can provides 750 cd/m² display brightness 700:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 12 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 70% (NTSC). This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. M090AWP4 R0 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/11.6/22/-7V (Typ.)(VCC/VDDA/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/9-inch-tft-lcd-display-800x480-parallel-rgb-high-brightness-750nits-wide-temperature-lcd-display-for-automotive.html

HSD090JFW1-A11 supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 17:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 196.608(W)×114.15(H) mm, outline size of 211.1(W)×126.5(H)×7.1(D) mm, viewing area size of 200.01(W)×117.55(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 240g (Typ.). As a IPS Pro, Normally Black, Transmissive LCM product, HSD090JFW1-A11 can provides 500 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 17/18 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. HSD090JFW1-A11 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/12.5/23/-10V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/9-inch-tft-lcd-display-1024x600-lvds-high-brightness-500nits-wide-temperature-lcd-display-for-automotive.html

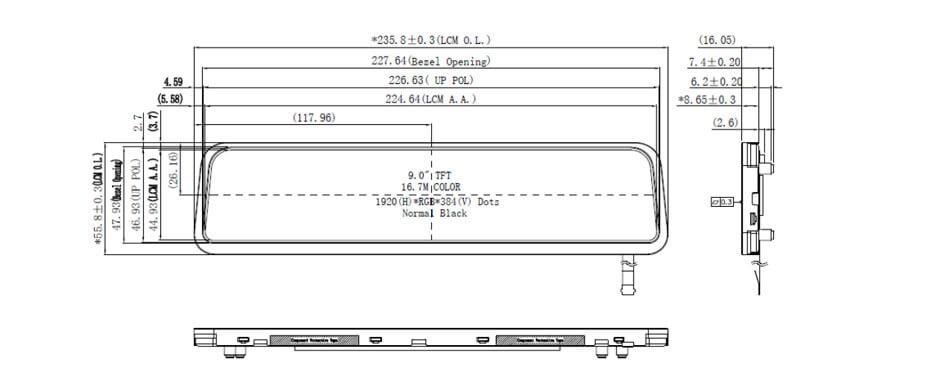

ET090BA01-GA is a 9-inch diagonal TFT-LCD display product with a transmissive display mode. ET090BA01-GA supports a resolution of 1920×384, delivering an ultra-wide panoramic display format, and utilizes an LVDS interface for signal transmission. It features an active area of 224.64(W)×44.9(H) mm and an outline dimension of 235.8(W)×55.8(H) mm. The display provides an ultra-high brightness of 3000 cd/m², suitable for demanding automotive and strong ambient light environments, and offers viewing angles of 80/80/80/80 (L/R/U/D). ET090BA01-GA operates within a wide temperature range of -30 to 85°C and can be stored within -30 to 85°C. This model does not include a touch function.
Product Link: https://www.youritech.com/products/9-inch-tft-lcd-display-1920x384-lvds-high-brightness-3000nits-wide-temperature-lcd-display-for-automotive.html

Automotive Display Solution
