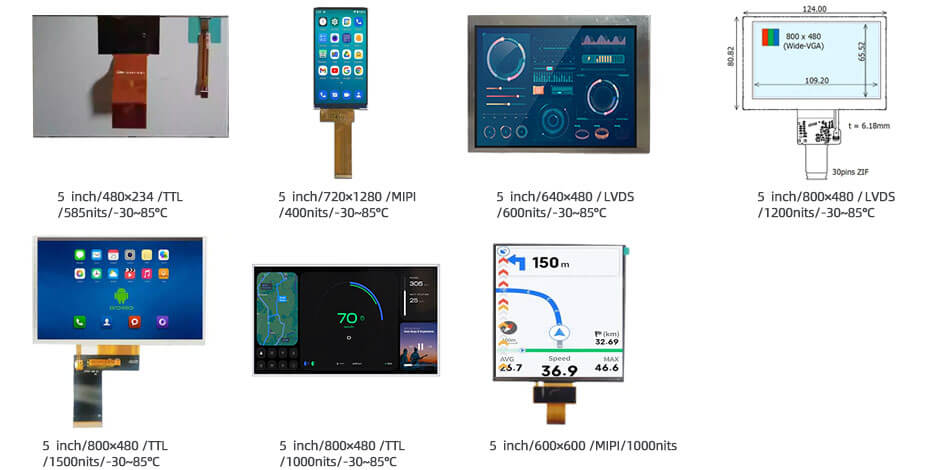

More 5 Inch Automotive Display For Reference
M050SWN1 R2 (480×234, TTL, IPS, 585nits, -30~85°C, 124×74.5mm)
ET050HD04-T (720×1280, MIPI, IPS, 400nits, -30~85°C, 65.4×119.3mm)
COG-VLITT1654-08 (640×480, LVDS, IPS, 600nits, -30~85°C, 119.7×92.8mm)
COM50H5N15ULC (800×480, LVDS, IPS, 1200nits, -30~85°C, 124×80.82mm)
ET050WV06-T (800×480, TTL, IPS, 1500nits, -30~85°C, 120.7×75.8mm)
A0500WVF2MAAA (800×480, TTL, IPS, 1000nits, -30~85°C, 121.3×78.8mm)
ET050SQ01-KD (600×600, MIPI, IPS, 1000nits, -20~70°C, 95.08×99.5mm)

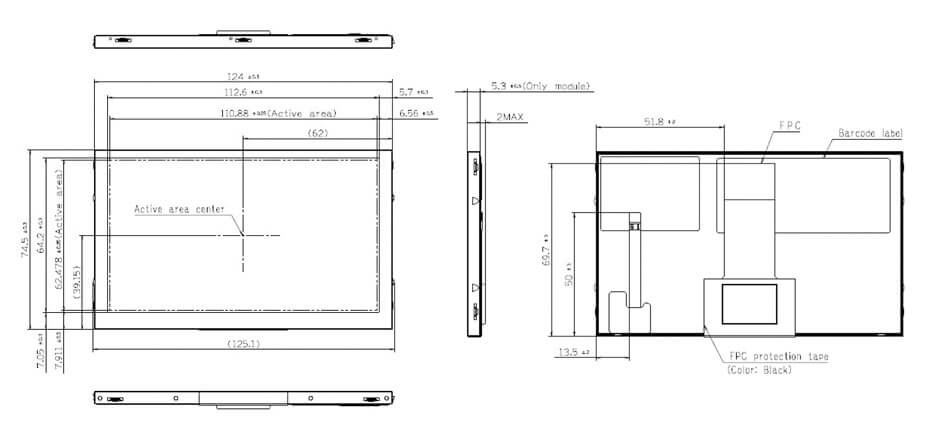

M050SWN1 R2 supports display 480(RGB)×234 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 110.88(W)×62.478(H) mm, outline size of 124(W)×74.5(H)×7.3(D) mm, viewing area size of 112.6(W)×64.2(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 91.5g (Typ.). As a TN, Normally White, Transmissive LCM product, M050SWN1 R2 can provides 585 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. M050SWN1 R2 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
ET050HD04-T is a 5-inch diagonal TFT-LCD display module featuring a transmissive display mode. It supports a resolution of 480×854 with a TTL interface, offering an active area of 62.06(W) × 110.42(H) mm and an outline dimension of 66.4(W) × 120.05(H) mm. The display provides a typical brightness of 400 cd/m² and wide viewing angles of 85° in all directions (L/R/U/D). Designed for wide temperature operation, it functions from -30°C to 70°C and can be stored between -40°C and 80°C, and it does not include a touch function.
Product Link: https://www.youritech.com/products/5-inch-wide-temperature-lcd-display-480x854-ttl-30c-to-70c-tft-lcd-display-2.html

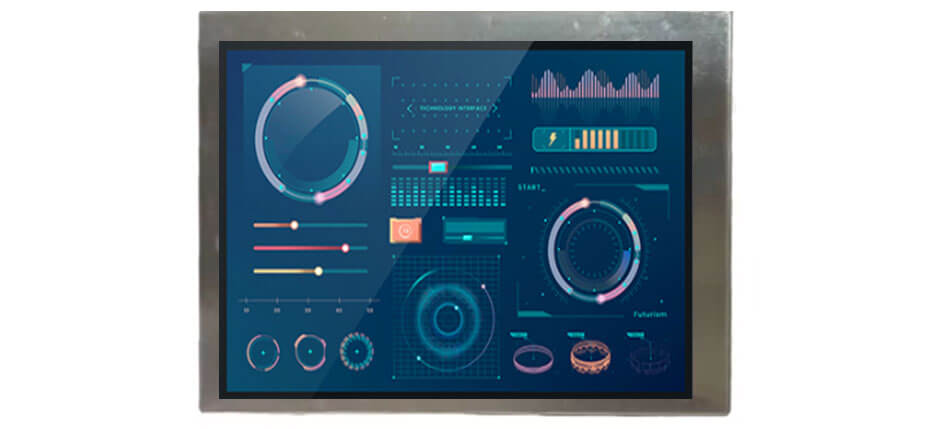

COG-VLITT1654-08 is a 5.0 inch diagonal a-Si TFT-LCD display screen product from BOE, with a built-in WLED backlight, without backlight driver, without touch screen. COG-VLITT1654-08 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 100.8(W)×75.6(H) mm, outline size of 119.7(W)×92.8(H)×22.1(D) mm, viewing area size of 103.6(W)×78.4(H) mm. As a TN, Normally White, Transmissive LCM product, COG-VLITT1654-08 can provides 600 cd/m² display brightness . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. COG-VLITT1654-08 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector. It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/5-inch-tft-lcd-display-640x480-lvds-high-brightness-600nits-wide-temperature-lcd-display-for-automotive.html

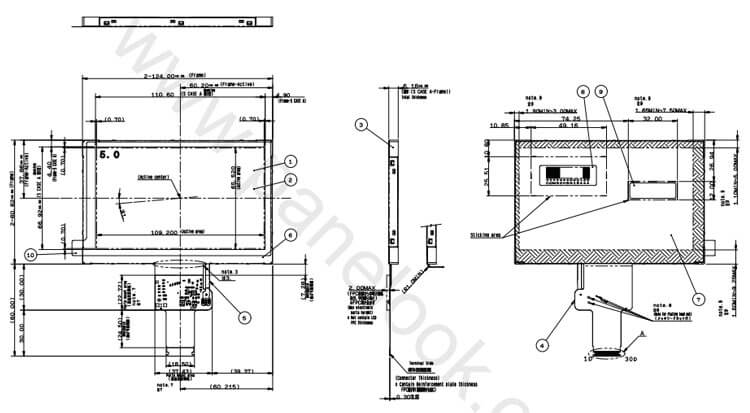

COM50H5N15ULC is a 5.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.COM50H5N15ULC supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 109.2(W)×65.52(H) mm, outline size of 124(W)×80.82(H)×6.53(D) mm, viewing area size of 110.6(W)×66.92(H) mm, with surface treament of Hard coating (2H), net weight of 88.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM50H5N15ULC can provides 550 cd/m² display brightness 700:1 transimissive contrast ratio, 2.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 50 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. COM50H5N15ULC utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/com50h5n15ulc-ortustech-5-inch-tft-lcd-display-800x480-transflective-wide-temperature-lcd-panel.html

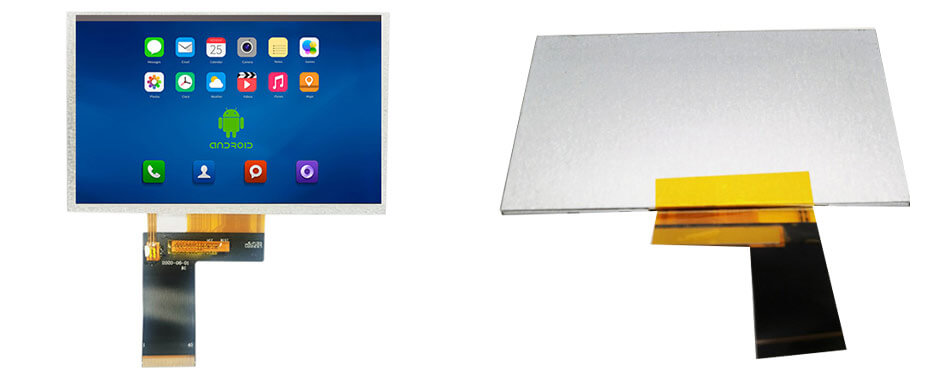

ET050WV06-T is a 5.0-inch diagonal IPS TFT-LCD display module featuring a transmissive display mode. It supports a resolution of 800×480 with a wide aspect ratio, delivering clear and stable image performance. Equipped with a TTL interface, this display ensures reliable signal transmission for various embedded applications. It offers a high brightness of 1500 cd/m², making it suitable for outdoor or high ambient light environments. The module provides wide viewing angles of 80/80/80/80 (L/R/U/D), ensuring consistent image quality from different directions. It has an active area of 108(W) × 64.8(H) mm and an outline dimension of 132.77(W) × 81.95(H) × 5.1(D) mm. Designed for harsh environments, it supports an operating and storage temperature range of -30°C to 85°C. This model does not include a touch panel.
Product Link: https://www.youritech.com/products/5-inch-high-brightness-display-1500nits-800x480-ttl-wide-temperature-ips-tft-lcd-display.html

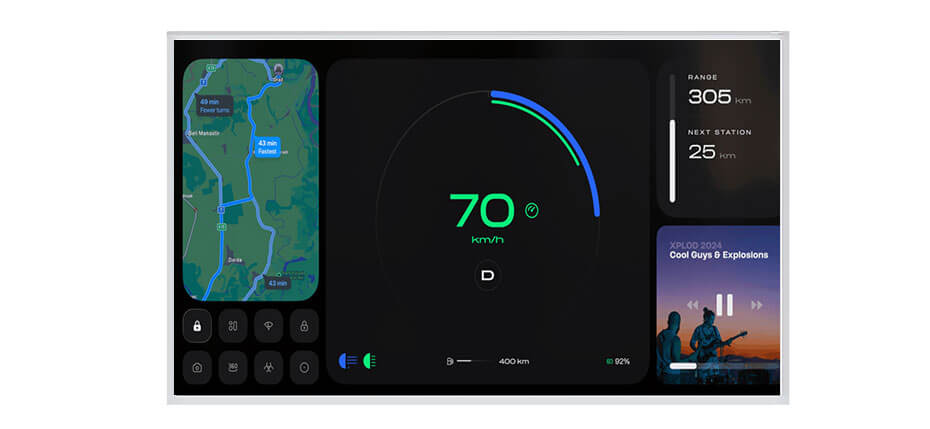

A0500WVF2MAAA supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 108.6(W)×65.16(H) mm, outline size of 121.3(W)×78.8(H)×6.1(D) mm, viewing area size of 110.6(W)×67.16(H) mm, with surface treament of Hard coating, net weight of TBD. As a SFT, Normally Black, Transmissive LCM product, A0500WVF2MAAA can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. A0500WVF2MAAA utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/5-inch-tft-lcd-display-800x480-parallel-rgb-spi-high-brightness-1000nits-wide-temperature-lcd-display-for-automotive.html

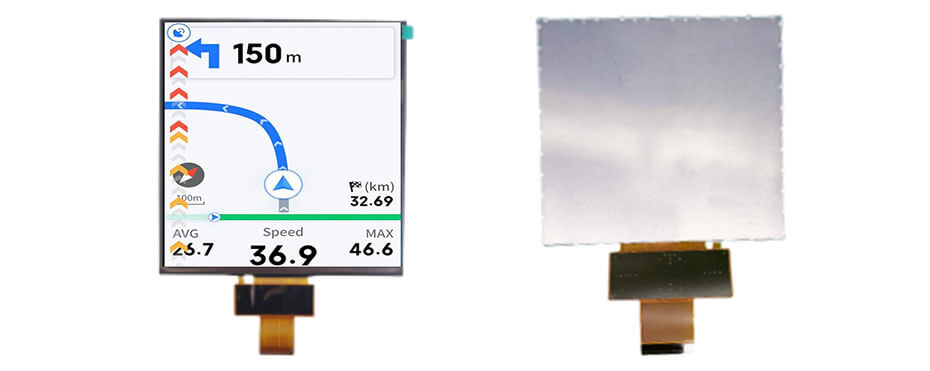

ET050SQ01-KD is a 5-inch high-brightness IPS TFT LCD display with a MIPI interface, featuring a 600×600 resolution in transmissive mode. It delivers a typical brightness of 1000 cd/m² with wide viewing angles of 80° in all directions. The display has an active area of 89.28 × 89.28 mm and an outline dimension of 95.08 × 99.5 mm. It operates over a temperature range of –20 °C to 70 °C and can be stored between –30 °C and 80 °C. The display includes capacitive touch functionality.
