12.3 Inch Automotive Display For Reference

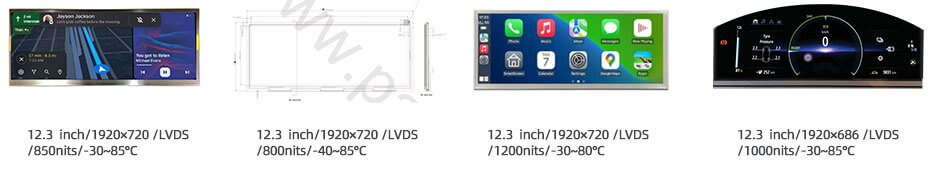

More 12.3 Inch Automotive Display For Reference
HSD123KPW1-A30 (1920×720, LVDS, IPS, 850nits, -30~85°C, 308.1×130mm)
TM123XDKP11 (1920×720, LVDS, IPS, 800nits, -40~85°C, 309.8×128.1mm)
ET123BA10-T (1920×720, LVDS, IPS, 1200nits, -30~80°C, 310×128mm)
LS123M5LZ01 (1920×686, LVDS, IPS, 1000nits, -30~85°C, 301.3×120.5mm)

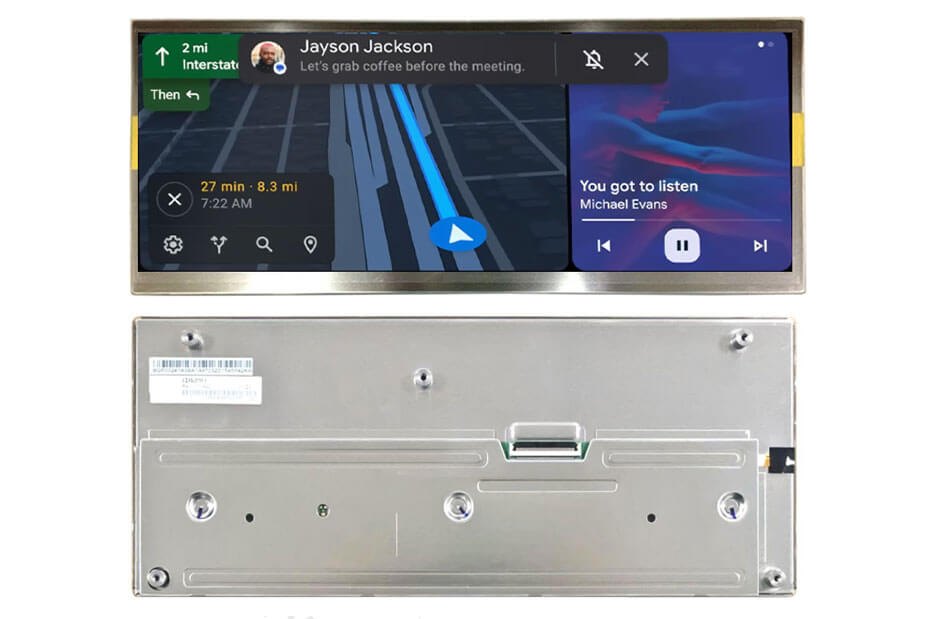

HSD123KPW1-A30 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 292.032(W)×109.512(H) mm, outline size of 308.1(W)×130(H)×15.6(D) mm, viewing area size of 294.8(W)×112.1(H) mm, with surface treament of Antiglare, net weight of 520g (Typ.). As a IPS Pro, Normally Black, Transmissive LCM product, HSD123KPW1-A30 can provides 850 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 17/18 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 71% (NTSC). This product adopted 11S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. HSD123KPW1-A30 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/hsd123kpw1-a30-12-3-inch-tft-lcd-display-1920x720-lvds-high-brightness-850nits-wide-temperature-lcd-display-for-automotive.html

TM123XDKP11 is a 12.3 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, without touch screen.TM123XDKP11 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 292.32(W)×109.62(H) mm, outline size of 309.8(W)×128.1(H)×16.8(D) mm, with surface treament of Antiglare, net weight of 440g (Typ.). As a SFT, Normally Black, Transmissive LCM product, TM123XDKP11 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 10S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. TM123XDKP11 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/tm123xdkp11-12-3-inch-tft-lcd-display-1920x720-lvds-high-brightness-800nits-wide-temperature-lcd-display-for-automotive.html

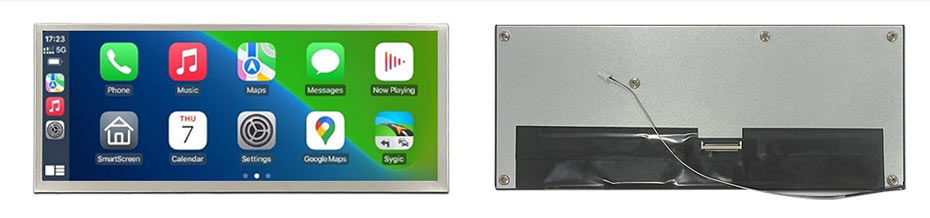

ET123BA10-T is a 12.3-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1920 × 720 resolution, providing a high-definition wide-format display ideal for detailed graphical and information-rich applications, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 292.03 (W) × 109.51 (H) mm and an outline dimension of 310 (W) × 128 (H) mm, allowing for straightforward integration into industrial and transportation system designs. ET123BA10-T adopts an LVDS interface and delivers a typical brightness of 1200 cd/m², ensuring excellent readability in bright ambient and semi-outdoor environments. With wide viewing angles of 88° in all directions (L/R/U/D), it maintains consistent color and contrast performance across multiple viewing positions. The module is designed for reliable operation over a –20 to 70°C operating temperature range and a –30 to 80°C storage temperature range. This model does not support touch functionality and is well suited for applications such as industrial control panels, automotive or transportation displays, outdoor signage, and other wide-temperature embedded display solutions.
Product Link: https://www.youritech.com/products/12-3-inch-stretched-bar-display-1920x720-ips-1200nits-high-brightness-3080c-wide-temperature-lvds-tft-lcd-display.html

LS123M5LZ01 supports display 1920(RGB)×686, whose pixels are arranged in RGB Vertical Stripe. It features active area of 295.2(W)×105.47(H) mm, outline size of 301.3(W)×120.5(H)×15.15(D) mm, with surface treament of Antiglare, Reflection 3.5% (Typ.), net weight of 470g. As a New Mode2, Normally Black, Transmissive LCM product, LS123M5LZ01 can provides 1000 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 77% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, With LED Driver. LS123M5LZ01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 68 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/ls123m5lz01-12-3-inch-tft-lcd-display-1920x686-lvds-high-brightness-1000nits-wide-temperature-lcd-display-for-automotive.html

Automotive Display Solution
