3.5 Inch Automotive Display For Reference

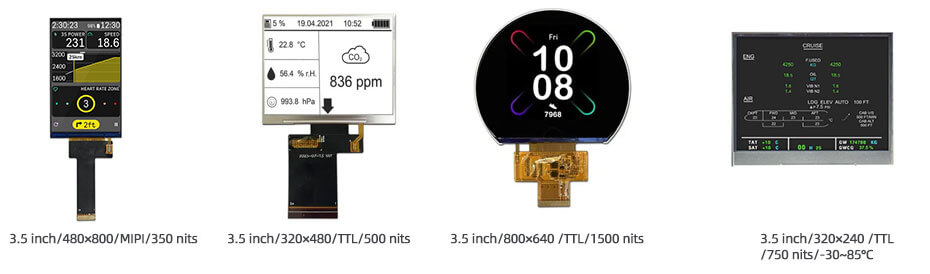

3.5 Inch Automotive Display Overview
ET035WV03-T (480×800, MIPI, IPS, 350nits, -20~70°C, 51.32×86.61mm)
ET035HV10-T (320×480, TTL, IPS, 500nits, -20~70°C, 54.48×84.71mm)
ET035CR01-T (800×640, TTL, IPS, 1500nits, -20~70°C, 97.6×83.79mm)
AV035LQM-N10-28P0 (320×240, TTL, IPS, 750nits, -30~85°C, 84.4×70mm)

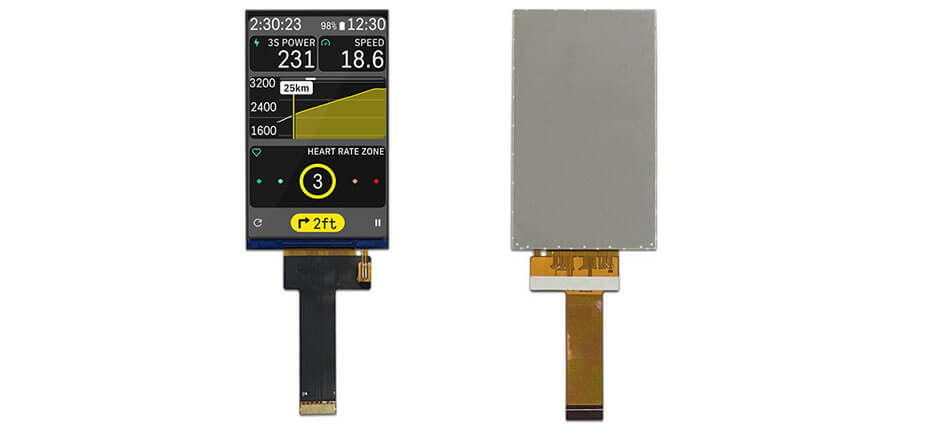

ET035WV03-T is a 3.5-inch diagonal TFT-LCD display product with a transmissive display mode. ET035WV03-T supports a resolution of 480×800 with an aspect ratio of 3:5 (W:H), delivering a compact portrait-oriented display performance, and utilizes a MIPI interface for signal transmission. It features an active area of 45.36(W)×75.6(H) mm and an outline dimension of 51.32(W)×86.61(H) mm. The display provides a typical brightness of 350 cd/m², suitable for automotive applications, and adopts IPS technology for wide viewing angles of 85/85/85/85 (L/R/U/D). ET035WV03-T operates within a temperature range of -20 to 70°C and can be stored within -30 to 80°C. This model does not include a touch function.
Product Link: https://www.youritech.com/products/3-5-inch-tft-lcd-display-480x800-mipi-ips-lcd-display-for-automotive.html

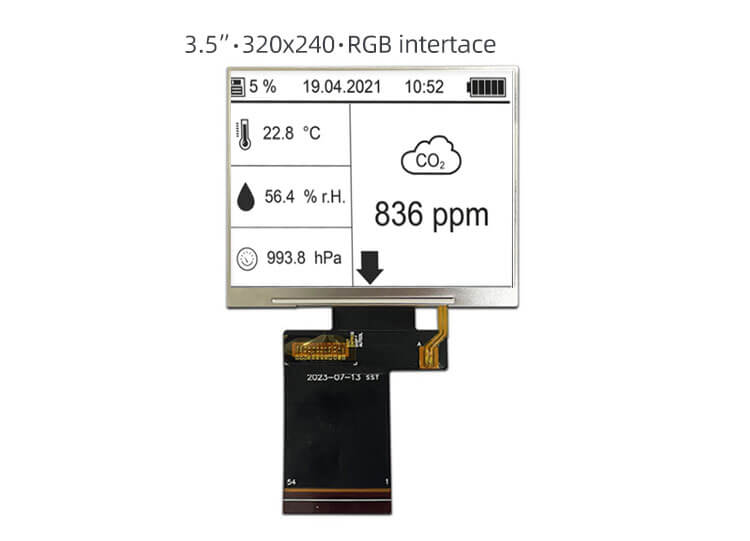

ET035HV10-T is a 3.5-inch TFT LCD module featuring a resolution of 320x240 pixels and utilizing the ST7272A controller with an IPS RGB 24-BIT panel interface. This module offers a high brightness level of 1000 cd/m², ensuring excellent visibility even in bright environments. It has an outline dimension of 76.84mm (W) x 63.84mm (H) x 3.27mm (D) and an active display area measuring 70.08mm (W) x 52.56mm (H). Specific details regarding the viewing angles (L/R/U/D) and operation/storage temperatures are not provided. Additionally, this module does not include touch functionality, focusing instead on delivering high-quality visual output through its IPS TFT LCD technology with enhanced brightness.
Product Link: https://www.youritech.com/products/3-5-inch-tft-lcd-display-320x240-st7272a-ips-rgb-24-bit-high-brightness-1000cd-m%c2%b2-lcd-module.html

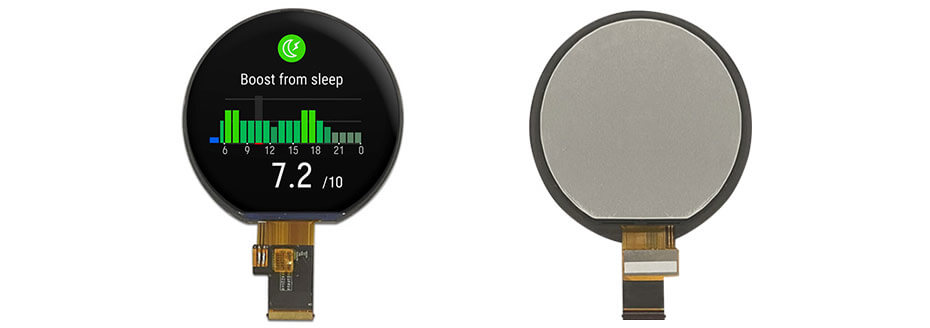

ET035CR01-T is a 3.5 inch diagonal TFT-LCD display product, featuring a circular design and IPS technology. ET035CR01-T supports display resolution of 800×640 with RGB 18-bit interface, delivering vivid color performance and wide viewing angles. It features an active area of 90(W) × 72(H) mm and an outline dimension of 97.6(W) × 83.79(H) × 4.04(D) mm. This model can provide 1000 cd/m² high brightness, making it suitable for outdoor or high ambient light environments. ET035CR01-T is a non-touch display solution, ideal for applications requiring clear visibility and reliable performance.
Product Link: https://www.youritech.com/products/3-5-inch-circular-display-ips-800x640-rgb-18-bit-high-brightness-tft-lcd-display.html

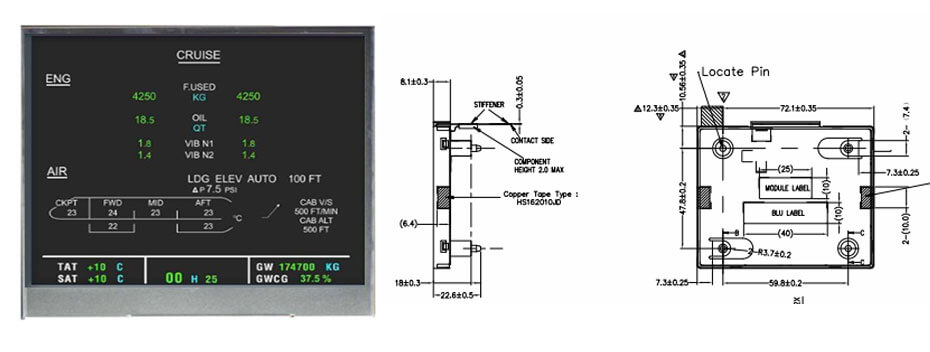

AV035LQM-N10-28P0 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 70.08(W)×52.56(H) mm, outline size of 84.4(W)×70(H)×23.1(D) mm, with surface treament of Antiglare, Reflection 6.0% (Max.), net weight of 60.0g (Typ.). As a ADS, Normally Black, Transmissive LCM product, AV035LQM-N10-28P0 can provides 750 cd/m² display brightness 100:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 70% (NTSC). This product adopted 1S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. AV035LQM-N10-28P0 utilizes Parallel RGB (1 ch, 6-bit) + SPI as it's signal inputting systerm, which connected by 42 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Product Link: https://www.youritech.com/products/3-5-inch-tft-lcd-display-320x240-parallel-rgb-spi-750nits-high-brightness-wide-temperature-ips-lcd-display-for-automotive.html

Automotive Display Solution
