10.1 Inch TFT LCD Display 1920×1200 LVDS High Brightness 1400nits Wide Temperature LCD Display For Automotive

10.1 Inch Automotive Display Overview

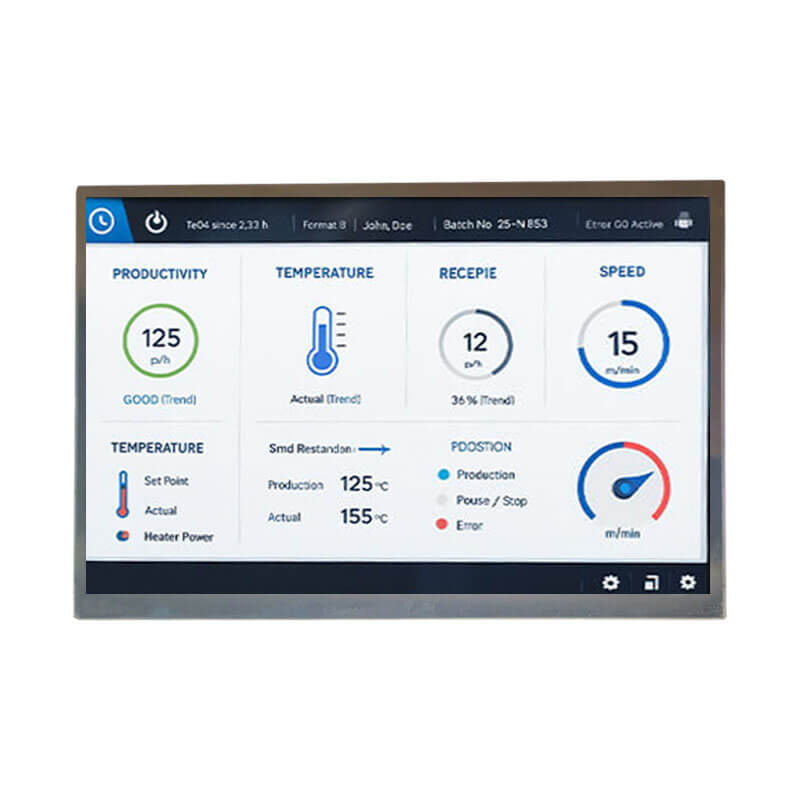

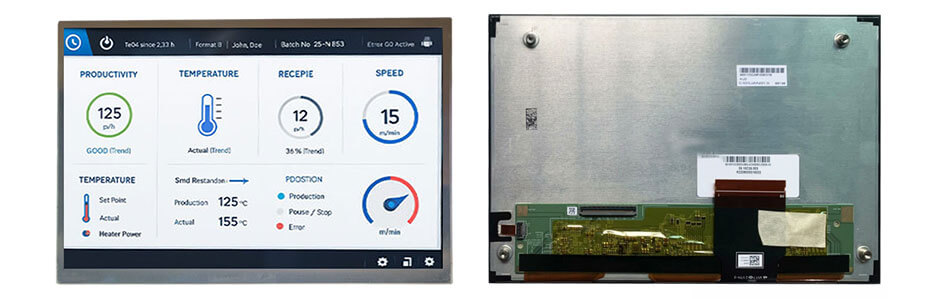

C101UAN01.0 is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without touch screen. C101UAN01.0 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 217.44(W)×135.9(H) mm, outline size of 236.96(W)×163(H) mm, net weight of 425±43g. As a AHVA, Normally Black, Transmissive LCM product, C101UAN01.0 can provides 1400 cd/m² display brightness 5000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type. C101UAN01.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

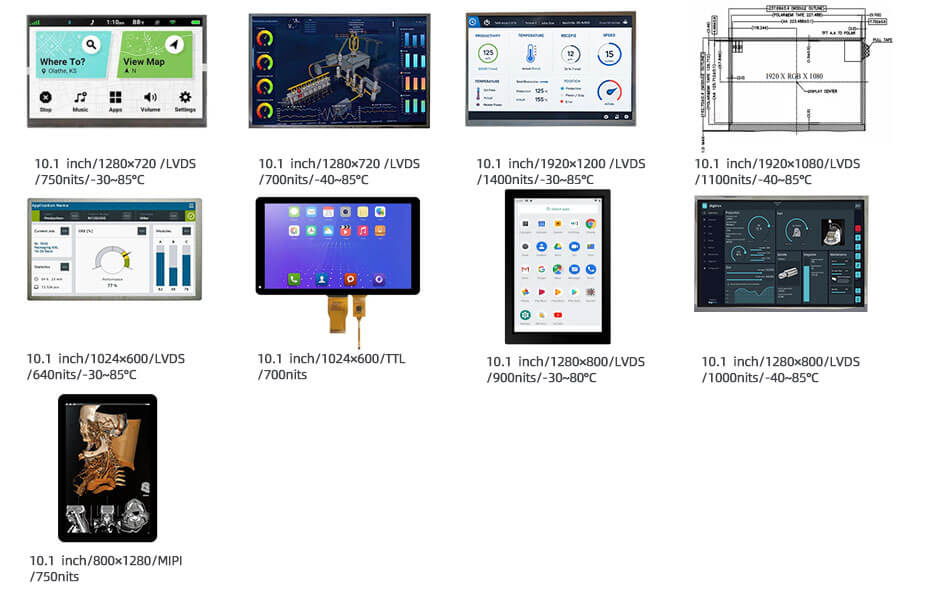

More 10.1 Inch Automotive Display For Reference
DJ101IA-07A (1280×720, LVDS, IPS, 750nits, -30~85°C, 238.6×148mm)
AV101HDM-N11 (1280×720, LVDS, IPS, 700nits, -40~85°C, 233.9×141.4mm)
C101UAN01.0 (1920×1200, LVDS, IPS, 1400nits, -30~85°C, 236.96×163mm)
COG-VLSZT115-01 (1920×1080 , LVDS, IPS, 1100nits, -40~85°C, 237.69×142.7mm)
M101GWT9 R3 (1024×600, LVDS, TN, 640nits, -30~85°C, 244×143mm)
ET101WS06-TT (1024×600, TTL, IPS, 700nits, -20~70°C, 252×150mm)
ET101WX10-T (1280×800, LVDS, IPS, 900nits, -30~80°C, 229.1×148.9mm)
TX26D207VM0AAA (1280×800, LVDS, IPS, 1000nits, -40~85°C, 231×153.5mm)
ET101WX15-TT (800×1280, MIPI, IPS, 750nits, -20~70°C, 166.5×249.7mm)
