9 Inch TFT LCD Display 1280×720 LVDS High Brightness 1100nits Wide Temperature LCD Display For Automotive

9 Inch Automotive Display Overview

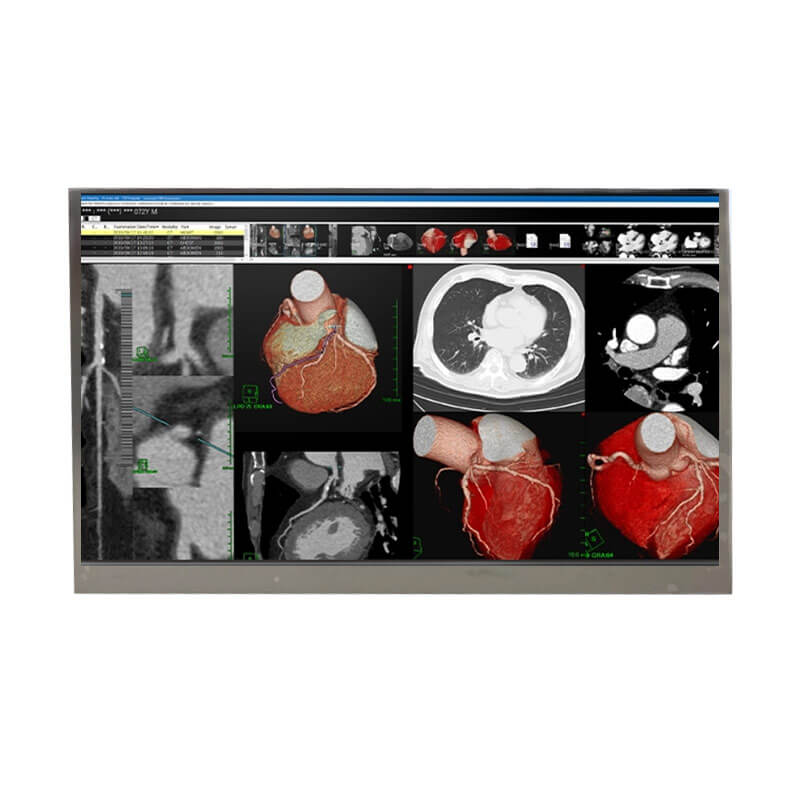

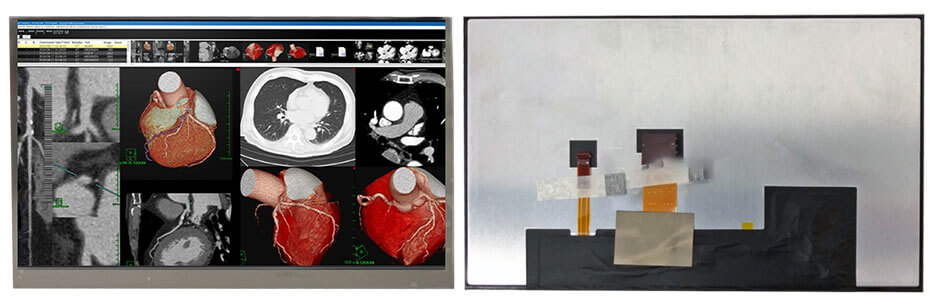

TM090JDKP01 is a 9.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. TM090JDKP01 supports display 1280(RGB)×720 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 198.72(W)×111.78(H) mm, outline size of 211.5(W)×128.08(H)×10.2(D) mm, viewing area size of 201.72(W)×114.78(H) mm, net weight of 272±27g. As a SFT, Normally Black, Transmissive LCM product, TM090JDKP01 can provides 1100 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. TM090JDKP01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

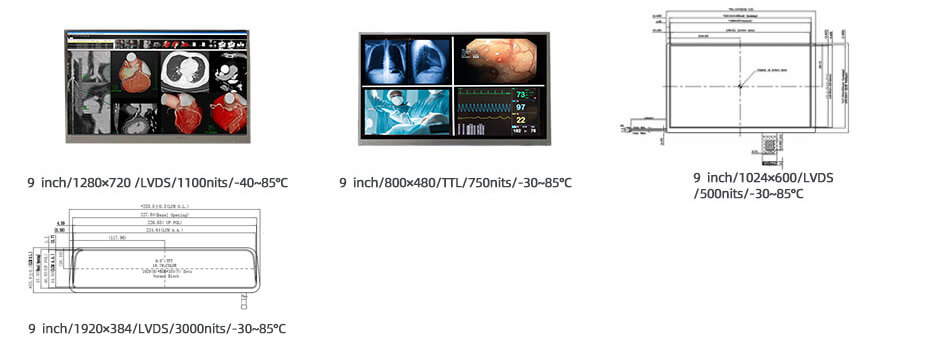

More 9 Inch Automotive Display For Reference
TM090JDKP01 (1280×720, LVDS, IPS, 1100nits, -40~85°C, 211.5×128.08mm)
M090AWP4 R0 (800×480, TTL, TN, 750nits, -30~85°C, 210.82×126.96mm)
HSD090JFW1-A11 (1024×600, LVDS, IPS, 500nits, -30~85°C, 211.1×126.5mm)
ET090BA01-GA (1920×384, LVDS, IPS, 3000nits, -30~85°C, 235.8×55.8mm)
