9 Inch TFT LCD Display 1920×384 LVDS High Brightness 3000nits Wide Temperature LCD Display For Automotive

Part No.:ET090BA01-GA
Size:9″ inch
Resolution:1920x384
Panel Interface:LVDS
Display mode:Transmissive

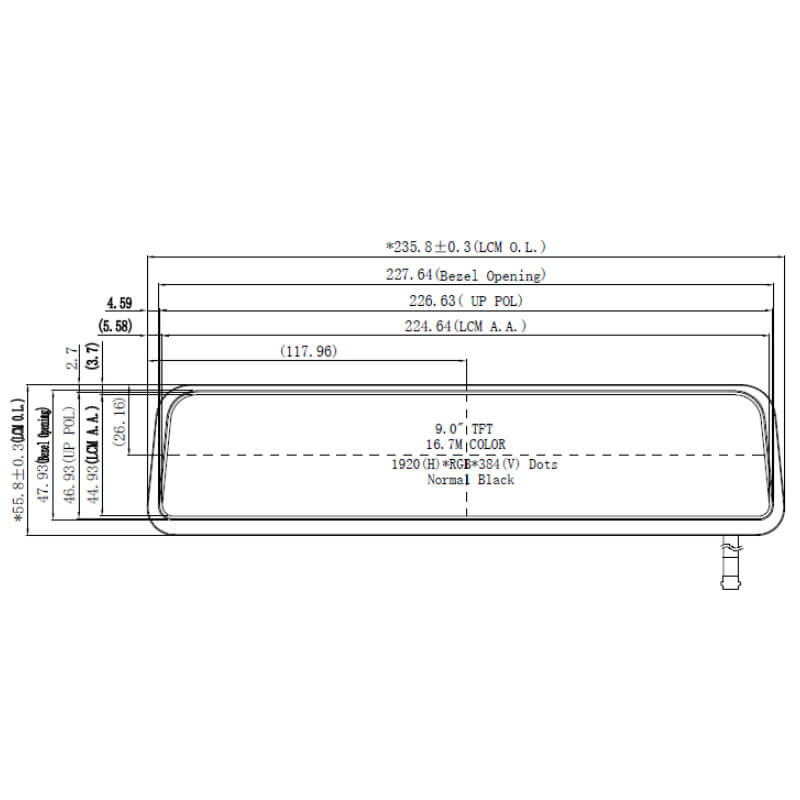

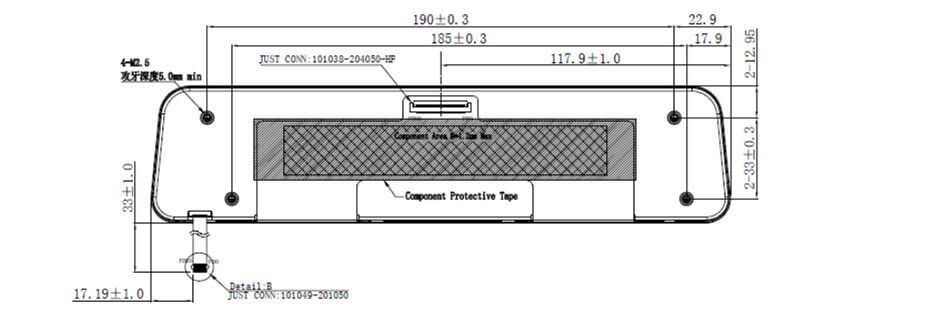

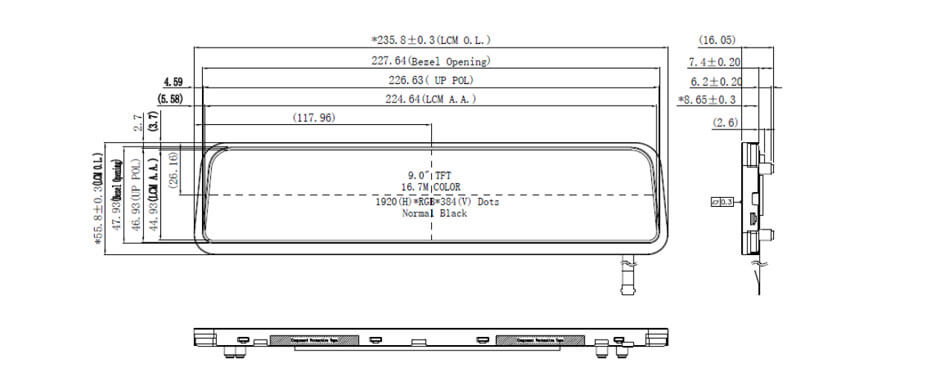

Outline Dimension:235.8x55.8mm
Active Area:224.64x44.9mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:3000nits
Operation / Storage Temp:-30~85°C / -30~85°C
Touch:no

9 Inch TFT LCD Display 1920×384 LVDS High Brightness 3000nits Wide Temperature LCD Display For Automotive Video

9 Inch TFT LCD Display 1920×384 LVDS High Brightness 3000nits Wide Temperature LCD Display For Automotive Overview

ET090BA01-GA is a 9-inch diagonal TFT-LCD display product with a transmissive display mode. ET090BA01-GA supports a resolution of 1920×384, delivering an ultra-wide panoramic display format, and utilizes an LVDS interface for signal transmission. It features an active area of 224.64(W)×44.9(H) mm and an outline dimension of 235.8(W)×55.8(H) mm. The display provides an ultra-high brightness of 3000 cd/m², suitable for demanding automotive and strong ambient light environments, and offers viewing angles of 80/80/80/80 (L/R/U/D). ET090BA01-GA operates within a wide temperature range of -30 to 85°C and can be stored within -30 to 85°C. This model does not include a touch function.

More 9 Inch Automotive Display For Reference
TM090JDKP01 (1280×720, LVDS, IPS, 1100nits, -40~85°C, 211.5×128.08mm)
M090AWP4 R0 (800×480, TTL, TN, 750nits, -30~85°C, 210.82×126.96mm)
HSD090JFW1-A11 (1024×600, LVDS, IPS, 500nits, -30~85°C, 211.1×126.5mm)
ET090BA01-GA (1920×384, LVDS, IPS, 3000nits, -30~85°C, 235.8×55.8mm)
