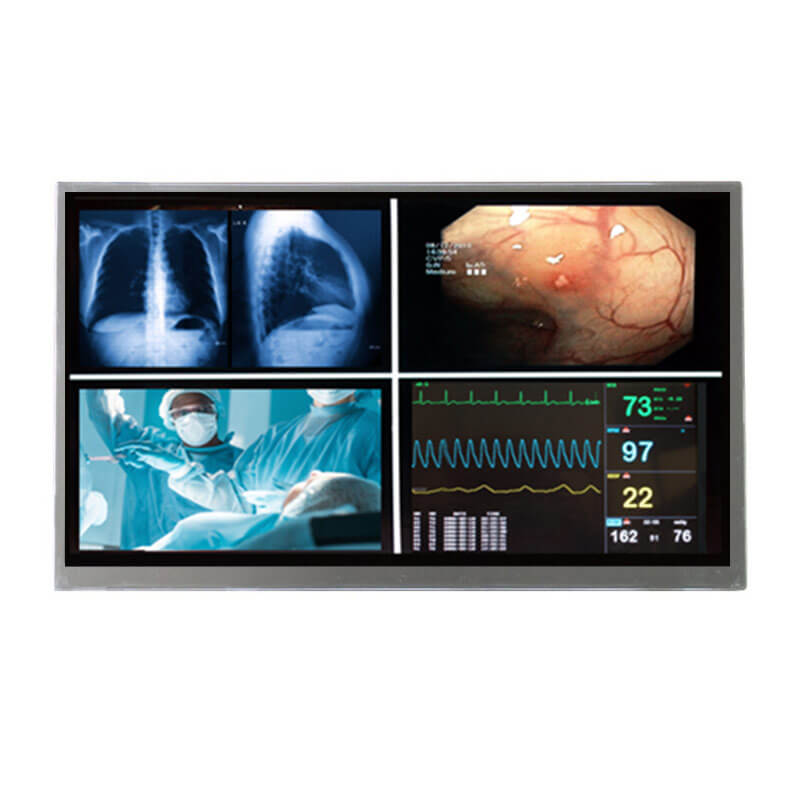

9 Inch TFT LCD Display 800×480 Parallel RGB High Brightness 750nits Wide Temperature LCD Display For Automotive

9 Inch Automotive Display Overview

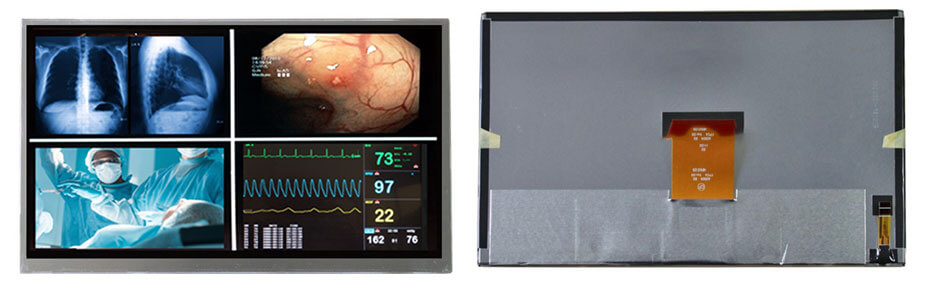

M090AWP4 R0 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 198(W)×112.08(H) mm, outline size of 210.82(W)×126.96(H)×6.4(D) mm, viewing area size of 200.2(W)×114.28(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 251g (Max.). As a TN, Normally White, Transmissive LCM product, M090AWP4 R0 can provides 750 cd/m² display brightness 700:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 12 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 70% (NTSC). This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. M090AWP4 R0 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/11.6/22/-7V (Typ.)(VCC/VDDA/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

More 9 Inch Automotive Display For Reference
TM090JDKP01 (1280×720, LVDS, IPS, 1100nits, -40~85°C, 211.5×128.08mm)
M090AWP4 R0 (800×480, TTL, TN, 750nits, -30~85°C, 210.82×126.96mm)
HSD090JFW1-A11 (1024×600, LVDS, IPS, 500nits, -30~85°C, 211.1×126.5mm)
ET090BA01-GA (1920×384, LVDS, IPS, 3000nits, -30~85°C, 235.8×55.8mm)
