8 Inch TFT LCD Display 1024×600 LVDS High Brightness 600nits Wide Temperature LCD Display For Automotive

8 Inch Automotive Display Overview

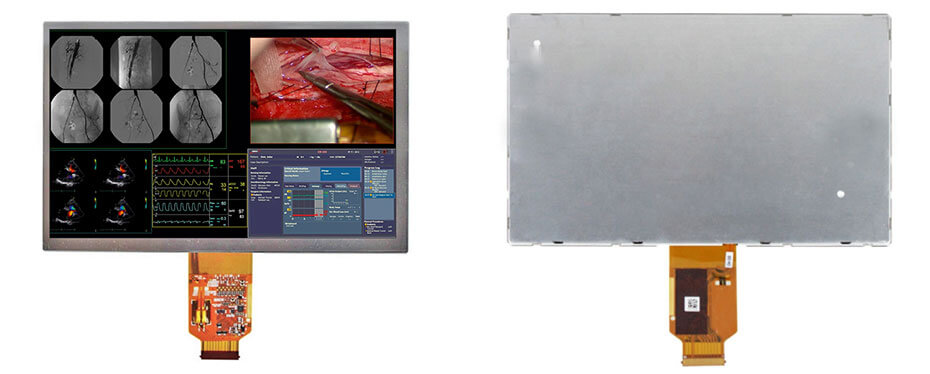

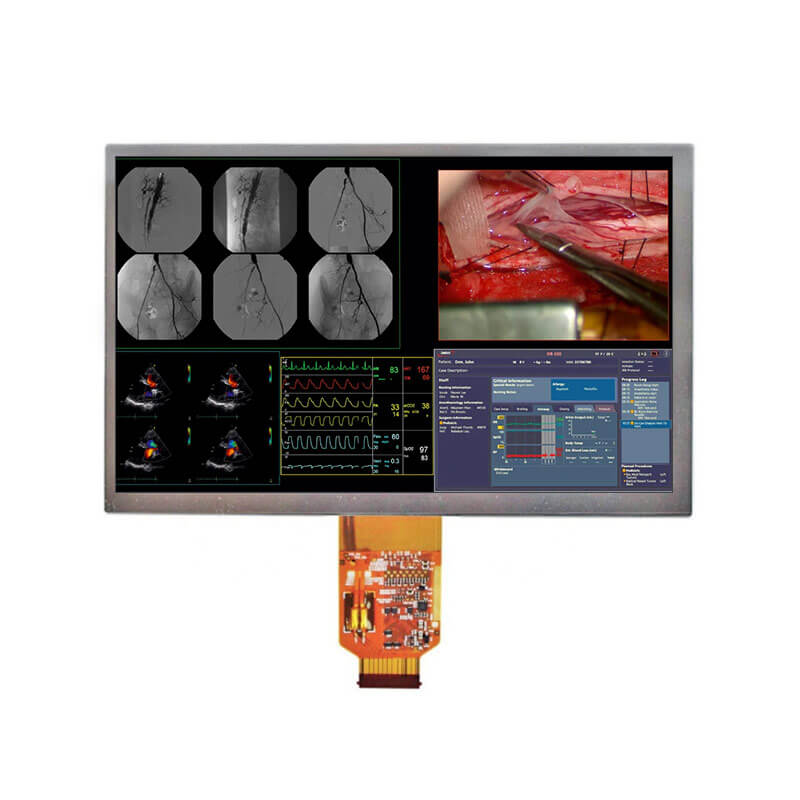

DJ080IA-10A is a 8.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. DJ080IA-10A supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H)×6.7(D) mm, viewing area size of 179.64(W)×102.36(H) mm, with surface treament of Antiglare, net weight of 225g (Max.). As a AAS, Normally Black, Transmissive LCM product, DJ080IA-10A can provides 750 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/10 (Typ.)(Tr/Td ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. DJ080IA-10A utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/12.8/24.0/-5.6V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

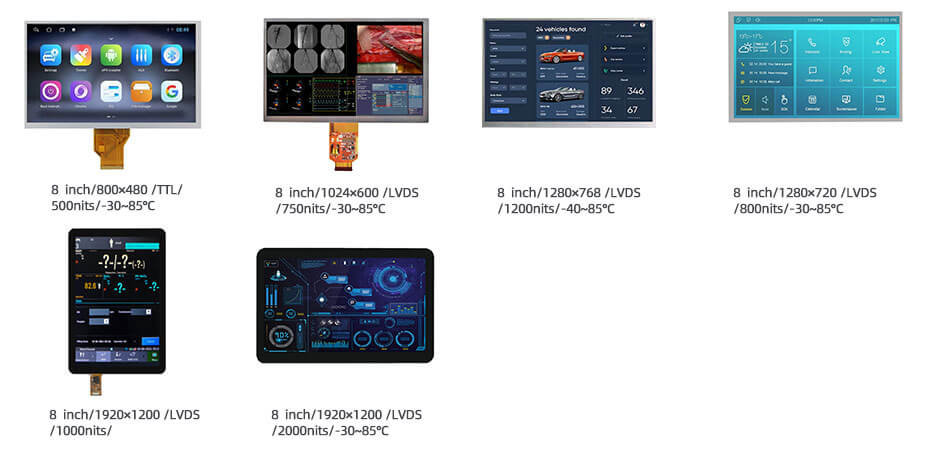

More 8 Inch Automotive Display For Reference
AT080TN64 (800×480, TTL, IPS, 500nits, -30~85°C, 192.8×116.9mm)
DJ080IA-10A (1024×600, LVDS, IPS, 750nits, -30~85°C, 192.8×116.9mm)
TX20D207VM0AAA (1280×768, LVDS, IPS, 1200nits, -40~85°C, 189.5×119.4mm)
TM080JDKP96 (1280×720, LVDS, IPS, 800nits, -30~85°C, 192.8×116.9mm)
ET080WU11-TT (1920×1200, LVDS, IPS, 1000nits, -20~70°C, 181.7×119.8mm)
ET080WU01-RCTT (1920×1200, LVDS, IPS, 2000nits, -30~85°C, 179.96×119.92mm)
