8 Inch TFT LCD Display 1280×768 LVDS High Brightness 1200nits Wide Temperature LCD Display For Automotive

8 Inch Automotive Display Overview

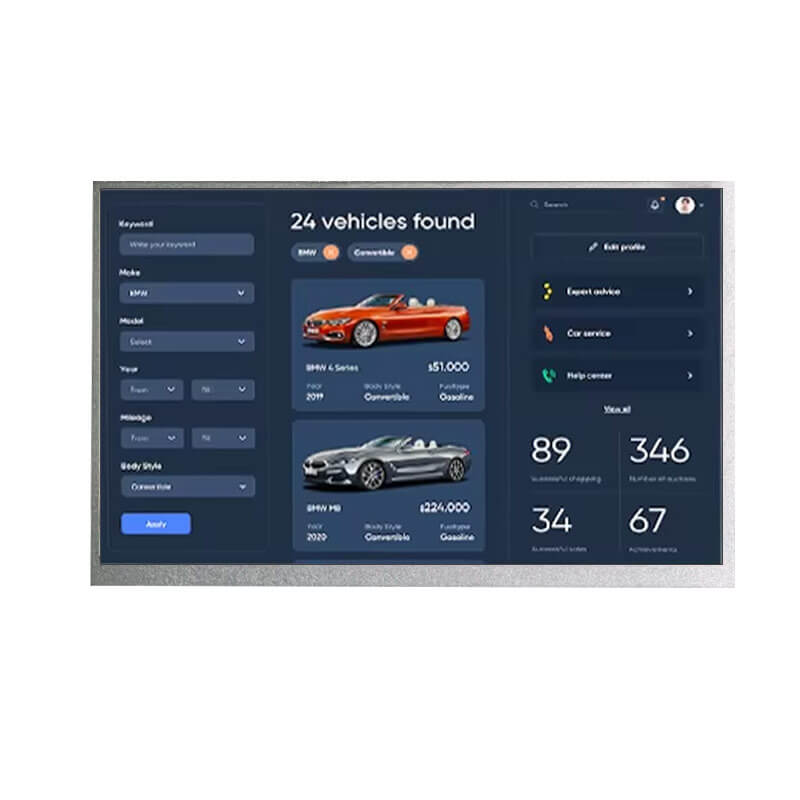

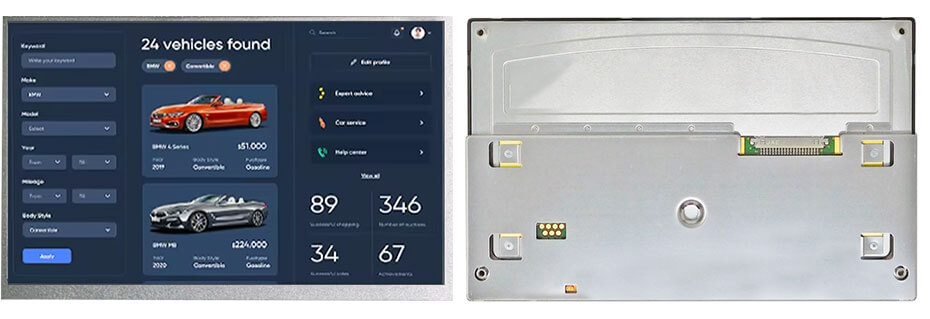

TX20D207VM0AAA is a 8.0 inch diagonal a-Si TFT-LCD display screen product from KOE, with a built-in WLED backlight, With LED Driver, without touch screen. TX20D207VM0AAA supports display 1280(RGB)×768 (WXGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 173.952(W)×104.371(H) mm, outline size of 189.5(W)×119.4(H)×12.1(D) mm, viewing area size of 177.0(W)×107.4(H) mm, net weight of 254g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TX20D207VM0AAA can provides 1200 cd/m² display brightness 1400:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 19 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. TX20D207VM0AAA utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 8 Inch Automotive Display For Reference
AT080TN64 (800×480, TTL, IPS, 500nits, -30~85°C, 192.8×116.9mm)
DJ080IA-10A (1024×600, LVDS, IPS, 750nits, -30~85°C, 192.8×116.9mm)
TX20D207VM0AAA (1280×768, LVDS, IPS, 1200nits, -40~85°C, 189.5×119.4mm)
TM080JDKP96 (1280×720, LVDS, IPS, 800nits, -30~85°C, 192.8×116.9mm)
ET080WU11-TT (1920×1200, LVDS, IPS, 1000nits, -20~70°C, 181.7×119.8mm)
ET080WU01-RCTT (1920×1200, LVDS, IPS, 2000nits, -30~85°C, 179.96×119.92mm)
