8 Inch Wide Temperature LCD Display Overview

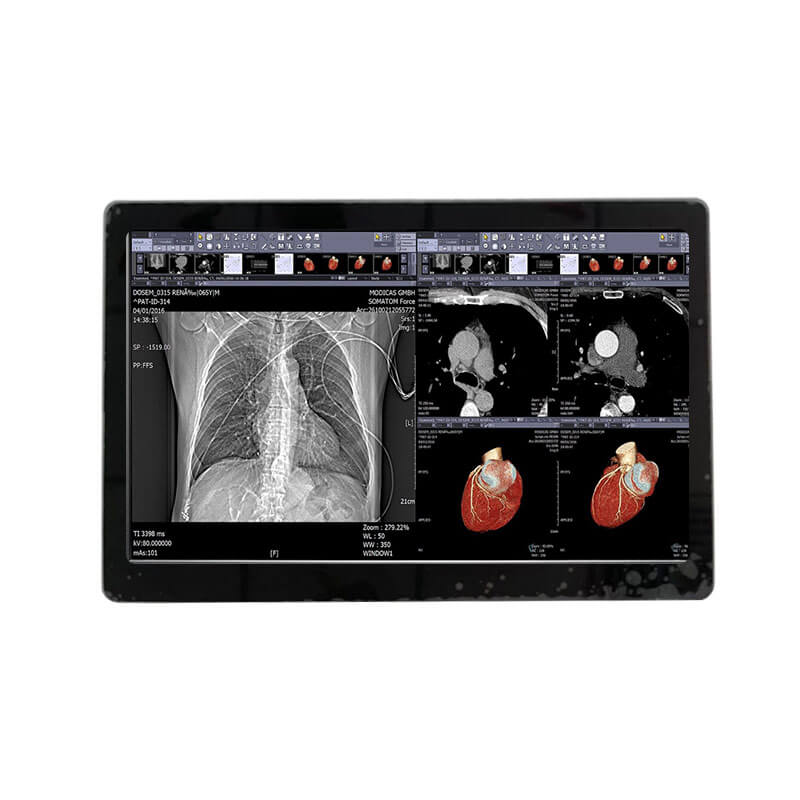

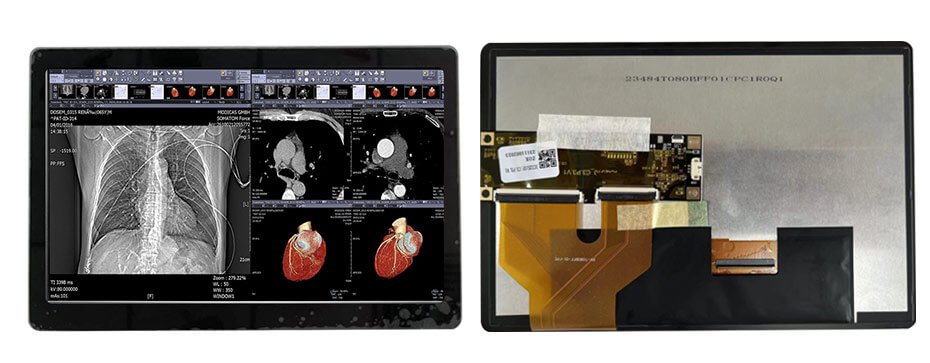

The ET080WU01-RCTT is an 8-inch wide-temperature, high-brightness TFT LCD display module. It features a high resolution of 1920x1200, utilizes an LVDS interface, and delivers a high brightness of 1700 nits. The module supports a wide operating temperature range of -30°C to 85°C, with the same range for storage. Its active display area measures 172.22x107.64 mm, housed within an outline dimension of 191.32x129.24 mm. The display provides symmetrical and wide viewing angles of 85/85/85/85 (L/R/U/D) and integrates a capacitive touch function.
More 8 Inch Wide Temperature Displays For Reference
ET080WX12-T (LCD, 1024×768, LVDS, IPS, 300nits, -30~80°C, 174×136mm)
ET080WX01-A (LCD, 800×1280, MIPI, IPS, 500nits, -30~80°C, 114.66×184.16mm)
ET080HD01-XF (LCD, 1280×720, LVDS, IPS, 800nits, -30~85°C, 192.8×116.9mm)
ET080WV01-W (LCD, 800×480, LVDS, IPS, 900nits, -30~85°C, 187.4×118mm)
ET080WU01-RCTT (LCD, 1920×1200, LVDS, IPS, 1700nits, -30~85°C, 191.32×129.24mm, CTP)
ET080WWV-R1 (LCD, 1920×1200, LVDS, IPS, 2000nits, -30~85°C, 179×119mm)
ET080WS01-Z1 (LCD, 1024×600, LVDS, IPS, 1500nits, -30~80°C, 192.8×116.9mm)
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
