5 Inch TFT LCD Display 640×480 LVDS High Brightness 600nits Wide Temperature LCD Display For Automotive

5 Inch Automotive Display Overview

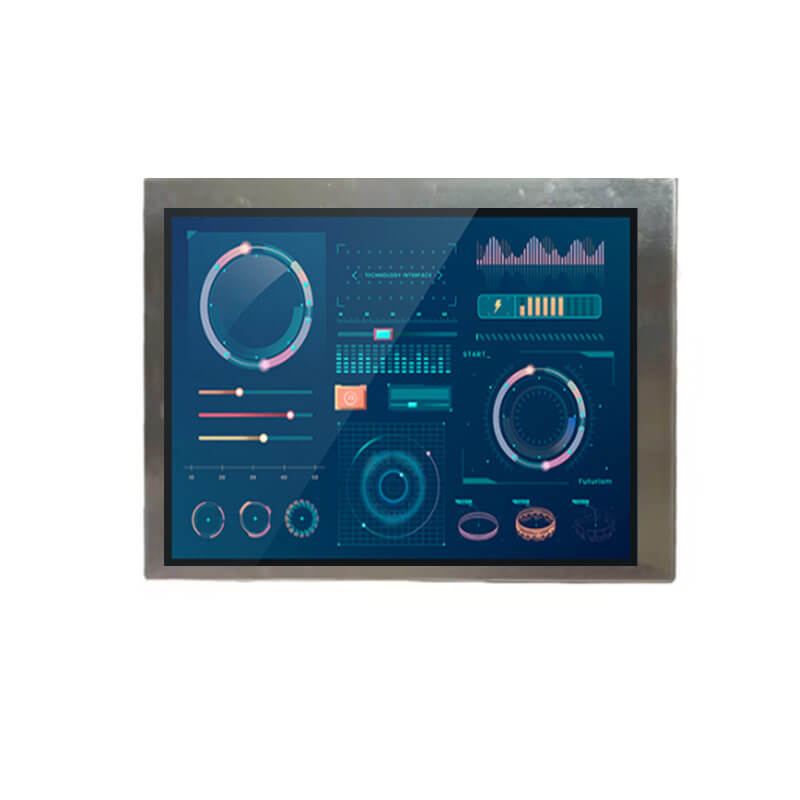

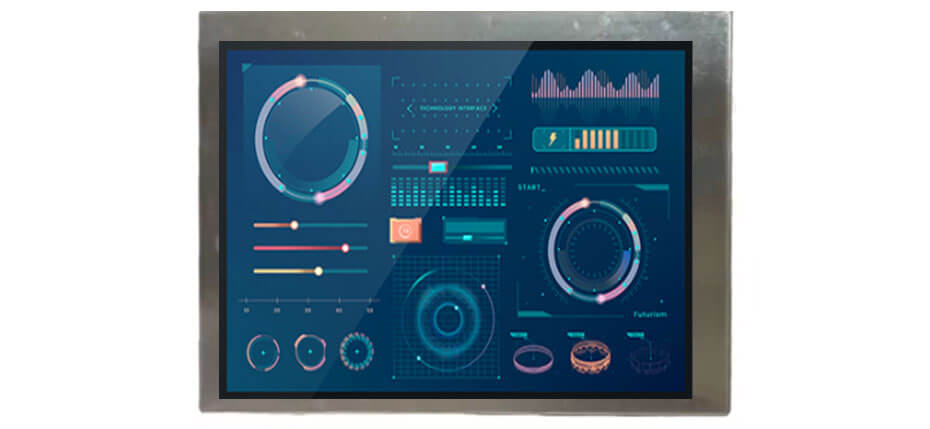

COG-VLITT1654-08 is a 5.0 inch diagonal a-Si TFT-LCD display screen product from BOE, with a built-in WLED backlight, without backlight driver, without touch screen. COG-VLITT1654-08 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 100.8(W)×75.6(H) mm, outline size of 119.7(W)×92.8(H)×22.1(D) mm, viewing area size of 103.6(W)×78.4(H) mm. As a TN, Normally White, Transmissive LCM product, COG-VLITT1654-08 can provides 600 cd/m² display brightness . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. COG-VLITT1654-08 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector. It's typical vertical frame rate (Fv) is 60Hz.

More 5 Inch Automotive Display For Reference
M050SWN1 R2 (480×234, TTL, IPS, 585nits, -30~85°C, 124×74.5mm)
ET050HD04-T (720×1280, MIPI, IPS, 400nits, -30~85°C, 65.4×119.3mm)
COG-VLITT1654-08 (640×480, LVDS, IPS, 600nits, -30~85°C, 119.7×92.8mm)
COM50H5N15ULC (800×480, LVDS, IPS, 1200nits, -30~85°C, 124×80.82mm)
ET050WV06-T (800×480, TTL, IPS, 1500nits, -30~85°C, 120.7×75.8mm)
A0500WVF2MAAA (800×480, TTL, IPS, 1000nits, -30~85°C, 121.3×78.8mm)
ET050SQ01-KD (600×600, MIPI, IPS, 1000nits, -20~70°C, 95.08×99.5mm)
