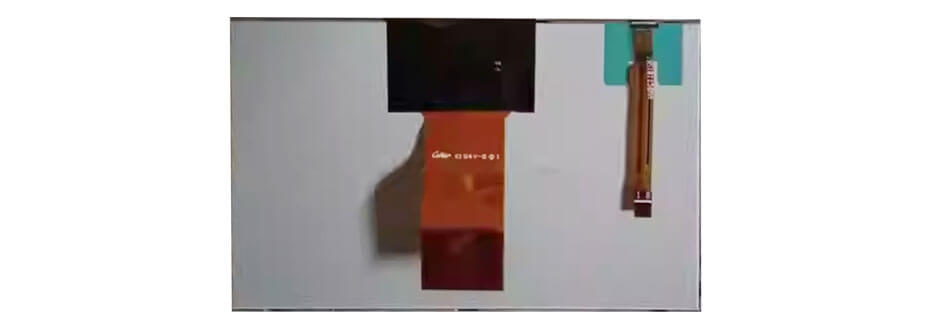

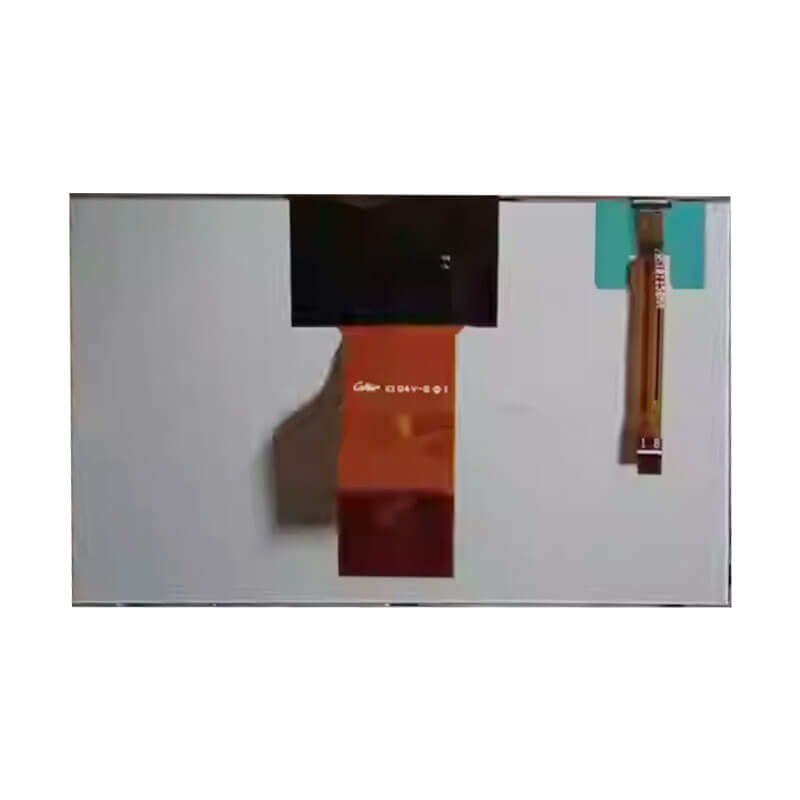

5 Inch TFT LCD Display 480×234 Parallel RGB High Brightness 585nits Wide Temperature LCD Display For Automotive

5 Inch Automotive Display Overview

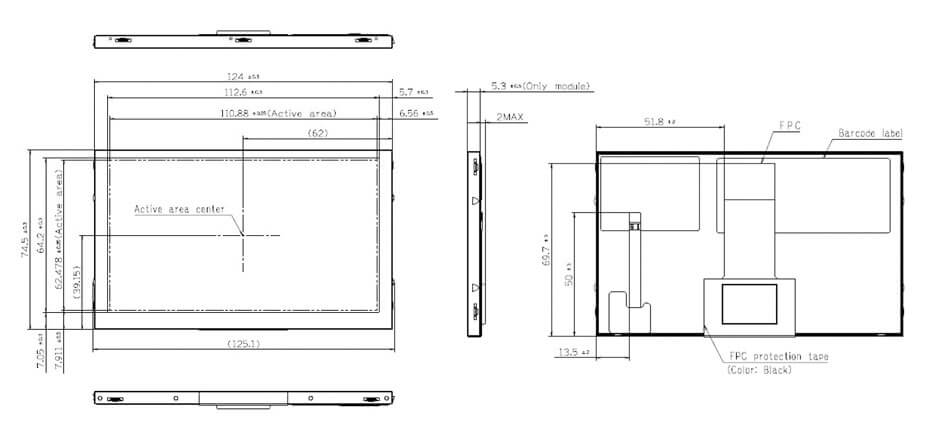

M050SWN1 R2 supports display 480(RGB)×234 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 110.88(W)×62.478(H) mm, outline size of 124(W)×74.5(H)×7.3(D) mm, viewing area size of 112.6(W)×64.2(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 91.5g (Typ.). As a TN, Normally White, Transmissive LCM product, M050SWN1 R2 can provides 585 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 60% (NTSC). This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. M050SWN1 R2 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

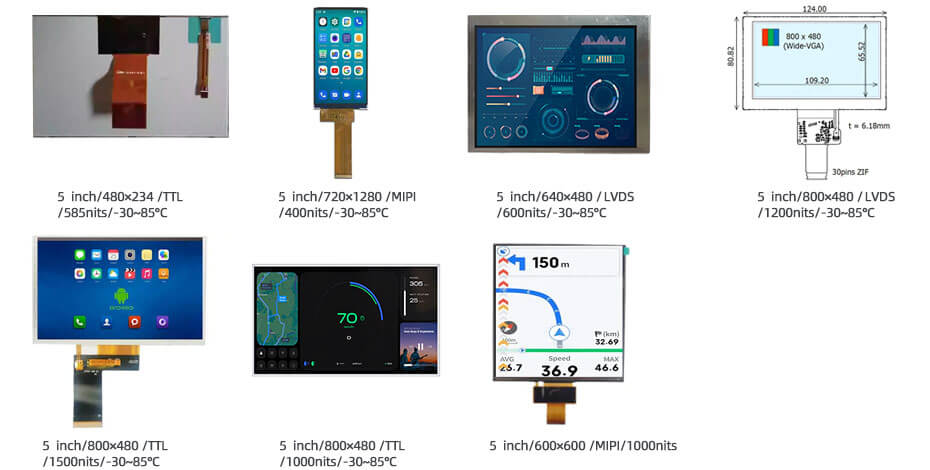

More 5 Inch Automotive Display For Reference
M050SWN1 R2 (480×234, TTL, IPS, 585nits, -30~85°C, 124×74.5mm)
ET050HD04-T (720×1280, MIPI, IPS, 400nits, -30~85°C, 65.4×119.3mm)
COG-VLITT1654-08 (640×480, LVDS, IPS, 600nits, -30~85°C, 119.7×92.8mm)
COM50H5N15ULC (800×480, LVDS, IPS, 1200nits, -30~85°C, 124×80.82mm)
ET050WV06-T (800×480, TTL, IPS, 1500nits, -30~85°C, 120.7×75.8mm)
A0500WVF2MAAA (800×480, TTL, IPS, 1000nits, -30~85°C, 121.3×78.8mm)
ET050SQ01-KD (600×600, MIPI, IPS, 1000nits, -20~70°C, 95.08×99.5mm)
