5 Inch TFT LCD Display 800×480 Parallel RGB SPI High Brightness 1000nits Wide Temperature LCD Display For Automotive

5 Inch Automotive Display Overview

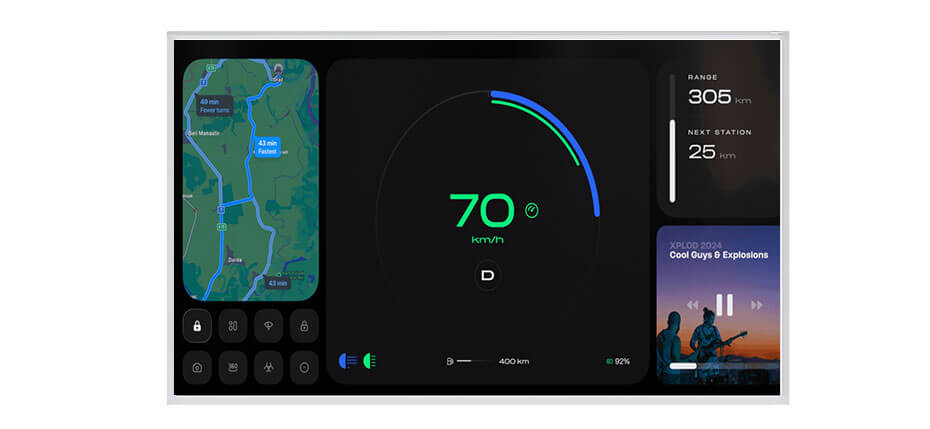

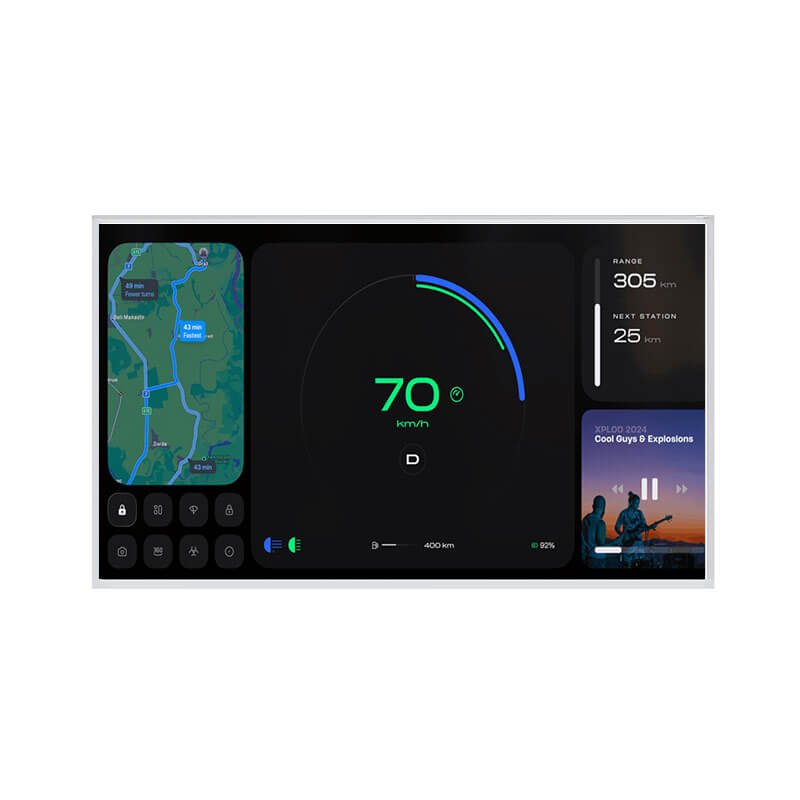

A0500WVF2MAAA supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 108.6(W)×65.16(H) mm, outline size of 121.3(W)×78.8(H)×6.1(D) mm, viewing area size of 110.6(W)×67.16(H) mm, with surface treament of Hard coating, net weight of TBD. As a SFT, Normally Black, Transmissive LCM product, A0500WVF2MAAA can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. A0500WVF2MAAA utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 5 Inch Automotive Display For Reference
M050SWN1 R2 (480×234, TTL, IPS, 585nits, -30~85°C, 124×74.5mm)
ET050HD04-T (720×1280, MIPI, IPS, 400nits, -30~85°C, 65.4×119.3mm)
COG-VLITT1654-08 (640×480, LVDS, IPS, 600nits, -30~85°C, 119.7×92.8mm)
COM50H5N15ULC (800×480, LVDS, IPS, 1200nits, -30~85°C, 124×80.82mm)
ET050WV06-T (800×480, TTL, IPS, 1500nits, -30~85°C, 120.7×75.8mm)
A0500WVF2MAAA (800×480, TTL, IPS, 1000nits, -30~85°C, 121.3×78.8mm)
ET050SQ01-KD (600×600, MIPI, IPS, 1000nits, -20~70°C, 95.08×99.5mm)
