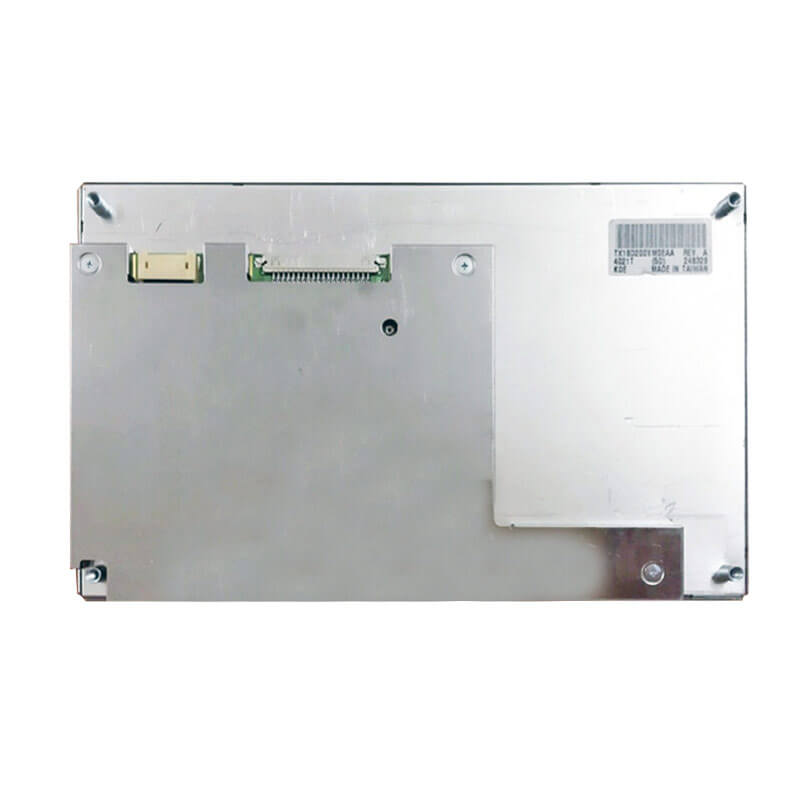

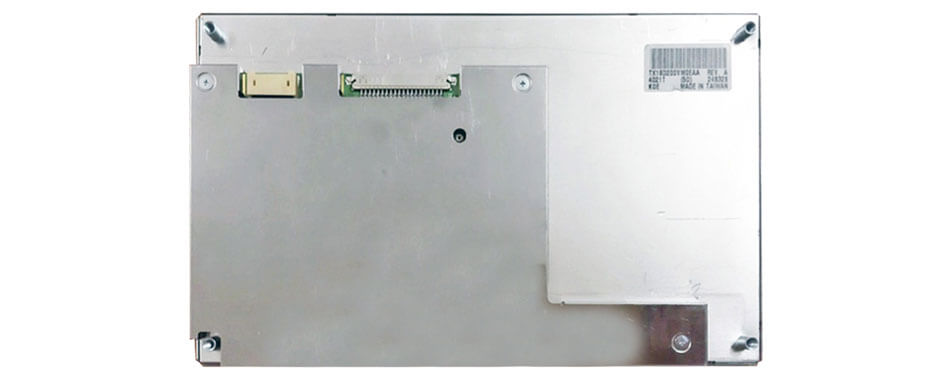

7 Inch TFT LCD Display 1920×1080 LVDS High Brightness 1200nits Wide Temperature LCD Display For Automotive

7 Inch Automotive Display Overview
TX18D200VM0EAA supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe,it's pixel density is 313 PPI. As for mechanical detail, it features active area of 155.52(W)×87.48(H) mm, outline size of 169(W)×104(H)×10.3(D) mm, viewing area size of 158.5(W)×90.5(H) mm, net weight of 180g (Typ.). As a IPS Pro, Normally Black, Transmissive LCM product, TX18D200VM0EAA can provides 1200 cd/m² display brightness 1300:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 23 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 90% (DCI-P3). This product adopted 3S10P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. TX18D200VM0EAA utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 7 Inch Automotive Display For Reference
TX18D200VM0EAA (1920×1080, LVDS, IPS, 1200nits, -40~85°C, 169×104mm)
ET070FH01-H (1920×1080, MIPI, IPS, 4500nits, -20~70°C, 164.19×97.87mm)
COM70H7M24ULC (800×480, LVDS, VA, 790nits, -30~85°C, 169.8×109.7mm)
TX18D211VM0BXA (800×480, LVDS, IPS, 1000nits, -30~80°C, 170×113.3mm)
COM70H7M40ULC (800×480, LVDS, VA, 400nits, -30~85°C, 169.8×109.7mm)
COM70H7M40ULN (800×480, LVDS, VA, 1200nits, -30~85°C, 169.8×109.7mm)
TX18D210VM0BAA (800×480, TTL, IPS, 800nits, -40~85°C, 167.7×109.5mm)
TM070RDHG34-00 (800×480, TTL, TN, 1000nits, -30~85°C, 164.9×100mm)
P0700WVN1MA00 (800×480, TTL, TN, 1000nits, -30~85°C, 164.9×100mm)
ET070WS01-T (1024×600, TTL, IPS, 800nits, -20~70°C, 164.9×100mm)
ET070WS10-TC (1024×600, LVDS, IPS, 1000nits, -30~85°C, 179.34×109.89mm)
ET070WX03-T (800×1280, MIPI, IPS, 400nits, -20~70°C, 99.65×160.85mm)
DJ070IA-20B (1280×768, LVDS, IPS, 930nits, -35~80°C, 163.35×107.12mm)
