7 Inch Transflective LCD Display Overview

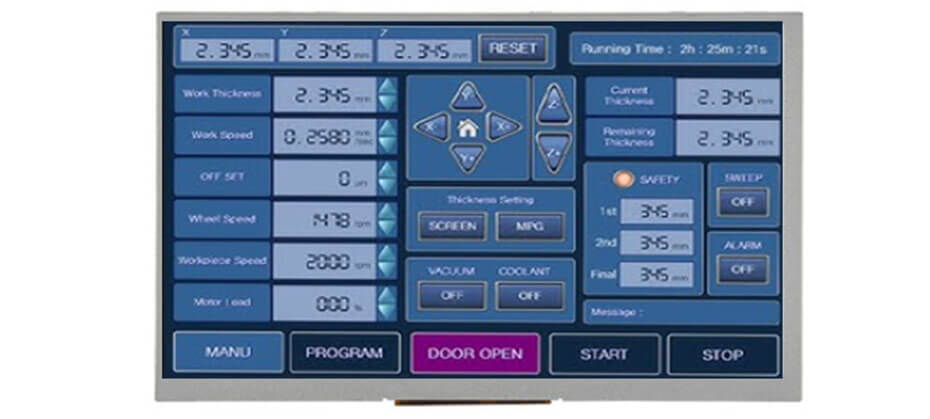

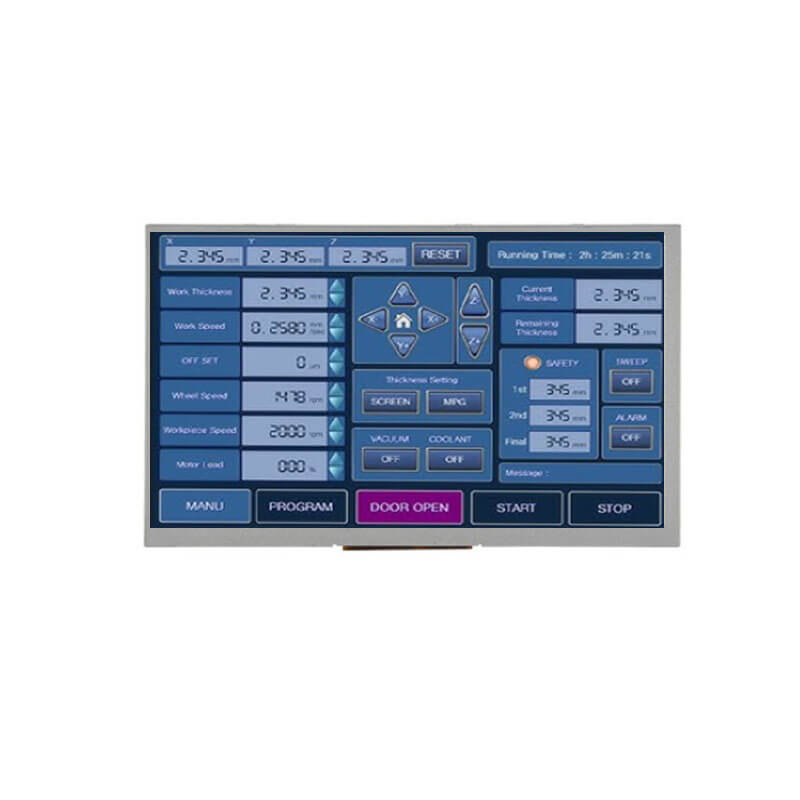

COM70H7M40ULN supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 152.4(W)×91.44(H) mm, outline size of 169.8(W)×109.7(H)×6.11(D) mm, with surface treament of Hard coating (3H), net weight of 170g (Typ.). As a VA, Normally Black, Transflective LCM product, COM70H7M40ULN can provides 1200 cd/m² display brightness 700:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. COM70H7M40ULN utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

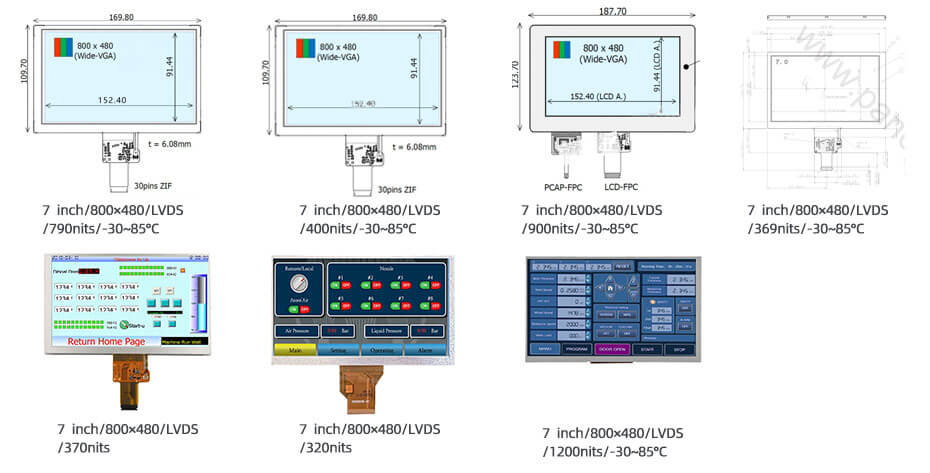

More 7 Inch Transflective LCD Display For Reference
COM70H7M24ULC (800x480, LVDS, 790nits, -30~85°C, 169.8x109.7mm)
COM70H7M40ULC (800x480, LVDS,400nits, -30~85°C, 169.8x109.7mm)
COM70H7M44UTC (800x480, LVDS, 900nits, -30~80°C, 187.7x123.7mm, CTP(Optical))
COM70H7M53FLC (800x480, LVDS,369nits, -30~85°C, 169.8x109.7mm)
COM70H7M58UTC (800x480, LVDS, 370nits, CTP(Air))
COM70H7M60UTC (800x480, LVDS, 320nits, 4w-RTP)
COM70H7M40ULN (800x480, LVDS, 1200nits, -30~85°C, 169.8x109.7mm)
