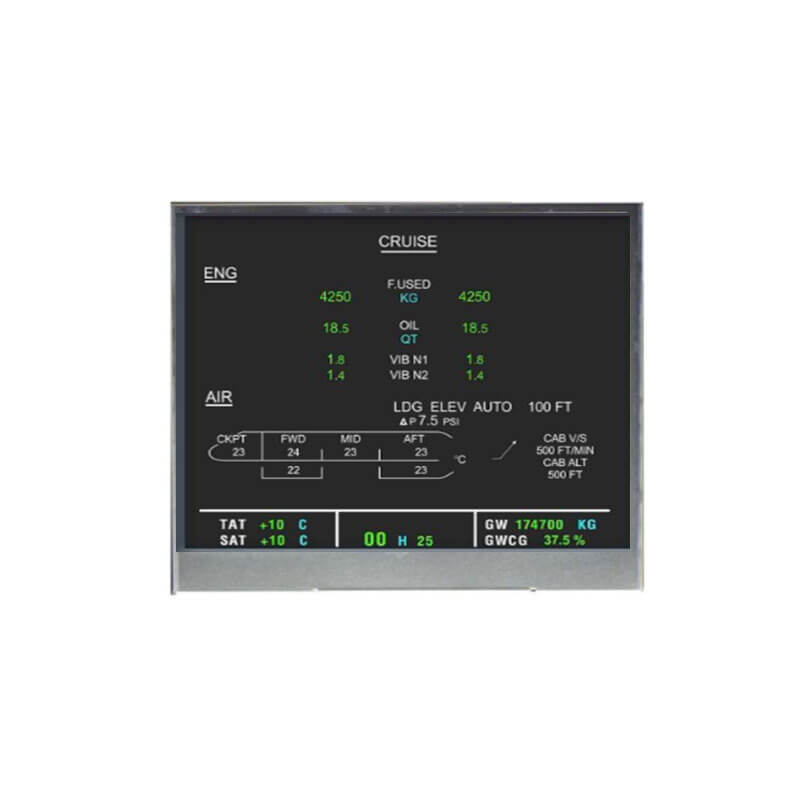

3.5 Inch TFT LCD Display 320×240 Parallel RGB SPI 750nits High Brightness Wide Temperature IPS LCD Display For Automotive

3.5 Inch Automotive Display Overview

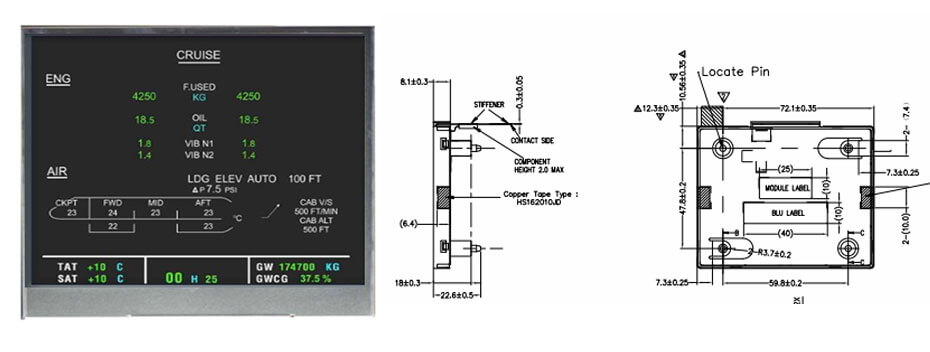

AV035LQM-N10-28P0 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 70.08(W)×52.56(H) mm, outline size of 84.4(W)×70(H)×23.1(D) mm, with surface treament of Antiglare, Reflection 6.0% (Max.), net weight of 60.0g (Typ.). As a ADS, Normally Black, Transmissive LCM product, AV035LQM-N10-28P0 can provides 750 cd/m² display brightness 100:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 70% (NTSC). This product adopted 1S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. AV035LQM-N10-28P0 utilizes Parallel RGB (1 ch, 6-bit) + SPI as it's signal inputting systerm, which connected by 42 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 3.5 Inch Automotive Display For Reference
ET035WV03-T (480×800, MIPI, IPS, 350nits, -20~70°C, 51.32×86.61mm)
ET035HV10-T (320×480, TTL, IPS, 500nits, -20~70°C, 54.48×84.71mm)
ET035CR01-T (800×640, TTL, IPS, 1500nits, -20~70°C, 97.6×83.79mm)
AV035LQM-N10-28P0 (320×240, TTL, IPS, 750nits, -30~85°C, 84.4×70mm)
