0.48"-5" LCD Display (3.5")

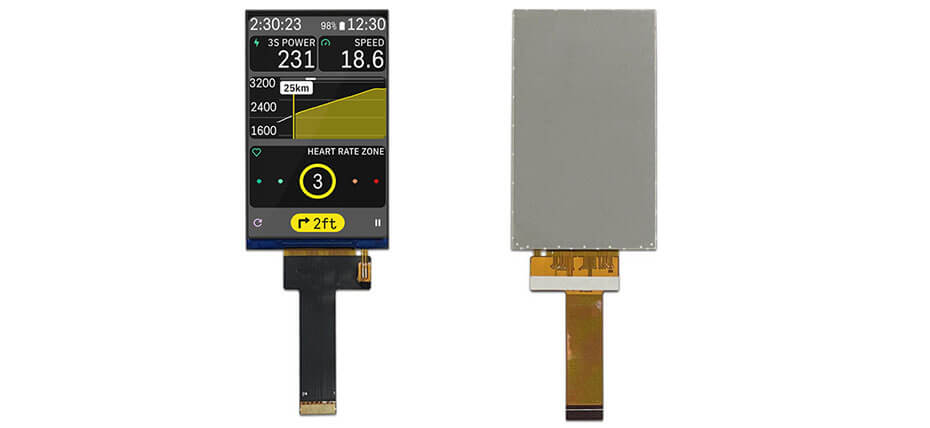

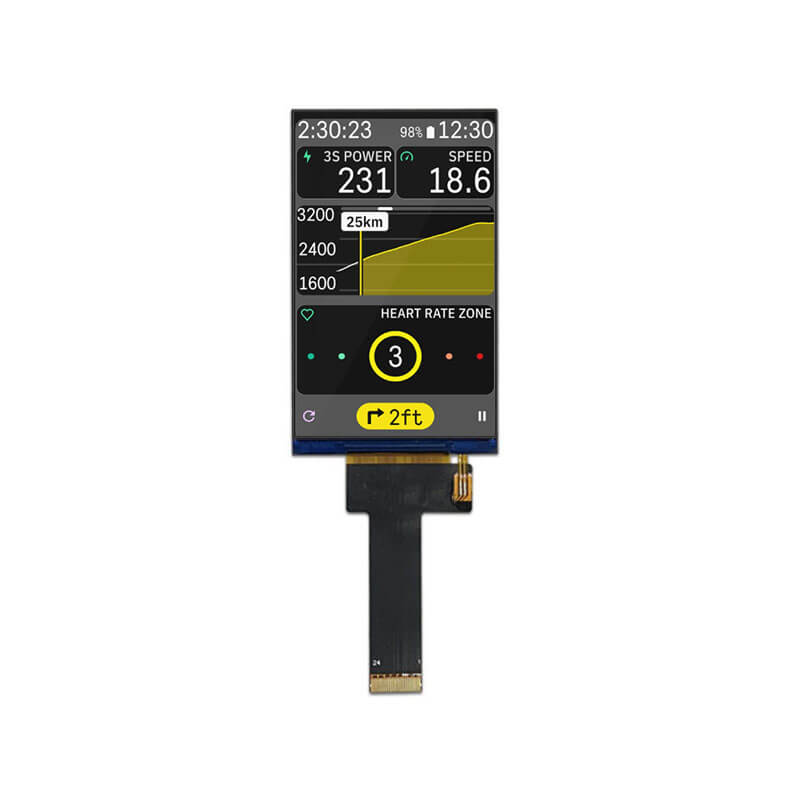

3.5 Inch TFT LCD Display 480×800 MIPI IPS LCD Display For Automotive

Part No.:ET035WV03-T
Size:3.5″ inch
Resolution:480x800
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:51.32x86.61mm
Active Area:45.36x75.6mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:350(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

3.5 Inch TFT LCD Display 480×800 MIPI IPS LCD Display For Automotive Video

3.5 Inch TFT LCD Display 480×800 MIPI IPS LCD Display For Automotive Overview

ET035WV03-T is a 3.5-inch diagonal TFT-LCD display product with a transmissive display mode. ET035WV03-T supports a resolution of 480×800 with an aspect ratio of 3:5 (W:H), delivering a compact portrait-oriented display performance, and utilizes a MIPI interface for signal transmission. It features an active area of 45.36(W)×75.6(H) mm and an outline dimension of 51.32(W)×86.61(H) mm. The display provides a typical brightness of 350 cd/m², suitable for automotive applications, and adopts IPS technology for wide viewing angles of 85/85/85/85 (L/R/U/D). ET035WV03-T operates within a temperature range of -20 to 70°C and can be stored within -30 to 80°C. This model does not include a touch function.

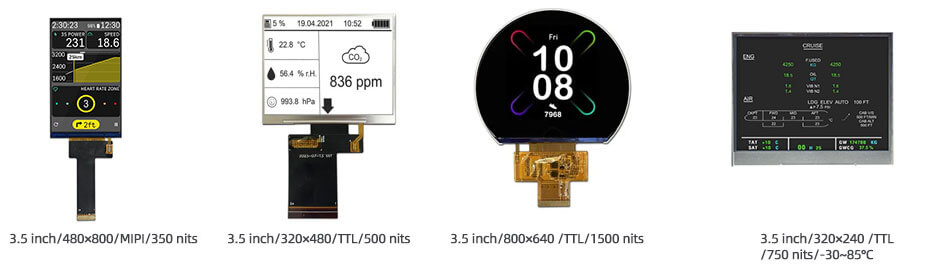

More 3.5 Inch Automotive Display For Reference
ET035WV03-T (480×800, MIPI, IPS, 350nits, -20~70°C, 51.32×86.61mm)
ET035HV10-T (320×480, TTL, IPS, 500nits, -20~70°C, 54.48×84.71mm)
ET035CR01-T (800×640, TTL, IPS, 1500nits, -20~70°C, 97.6×83.79mm)
AV035LQM-N10-28P0 (320×240, TTL, IPS, 750nits, -30~85°C, 84.4×70mm)
