12.3 Inch Stretched Bar Display Overview

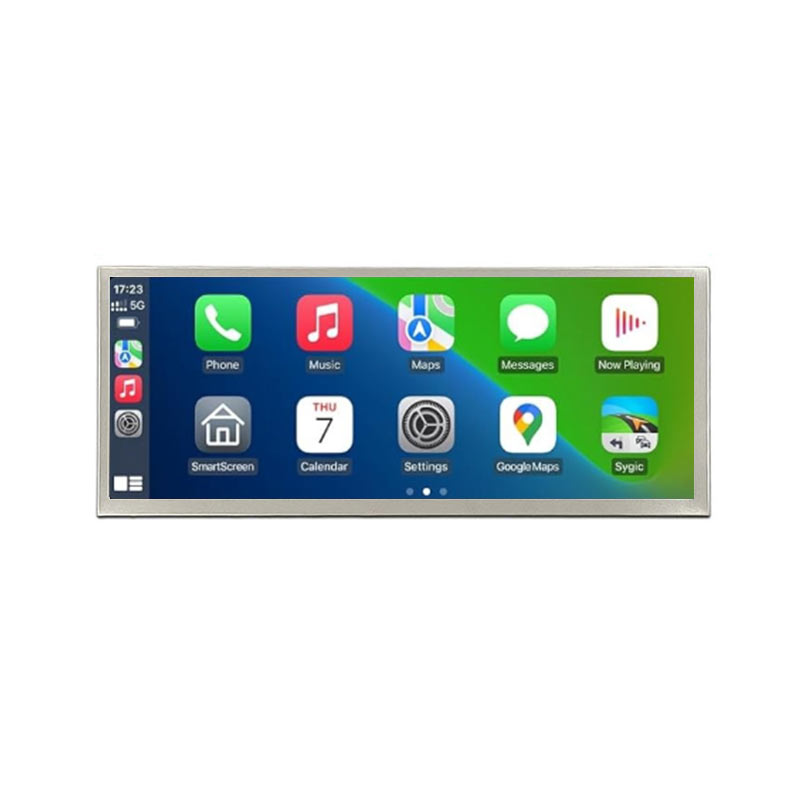

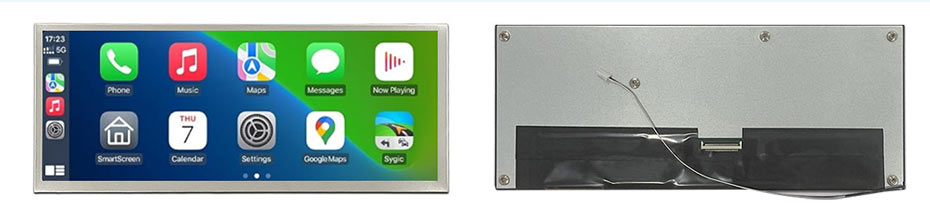

ET123BA10-T is a 12.3-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1920 × 720 resolution, providing a high-definition wide-format display ideal for detailed graphical and information-rich applications, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 292.03 (W) × 109.51 (H) mm and an outline dimension of 310 (W) × 128 (H) mm, allowing for straightforward integration into industrial and transportation system designs. ET123BA10-T adopts an LVDS interface and delivers a typical brightness of 1200 cd/m², ensuring excellent readability in bright ambient and semi-outdoor environments. With wide viewing angles of 88° in all directions (L/R/U/D), it maintains consistent color and contrast performance across multiple viewing positions. The module is designed for reliable operation over a –20 to 70°C operating temperature range and a –30 to 80°C storage temperature range. This model does not support touch functionality and is well suited for applications such as industrial control panels, automotive or transportation displays, outdoor signage, and other wide-temperature embedded display solutions.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
