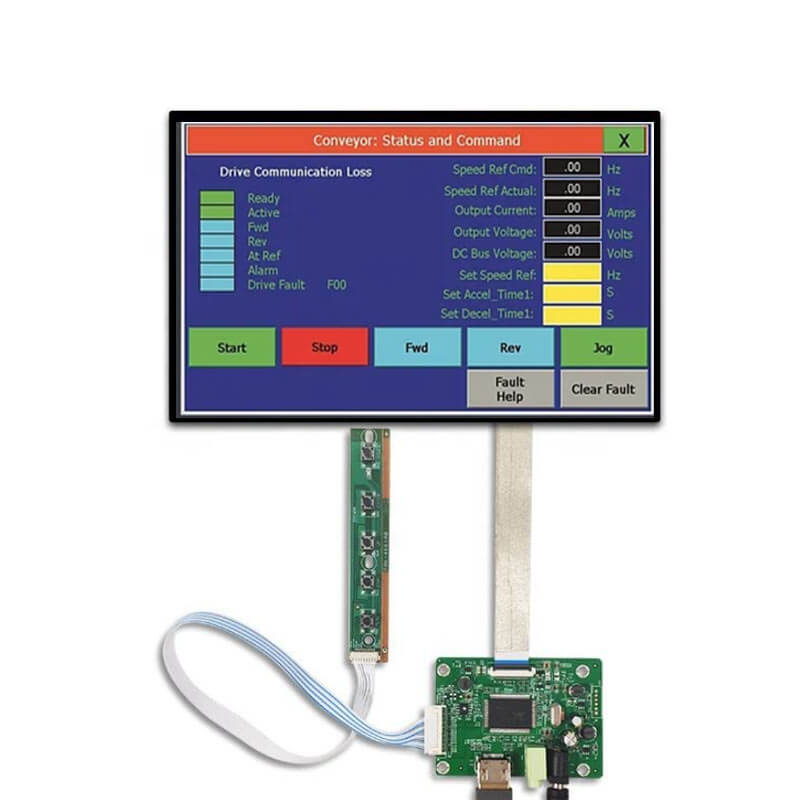

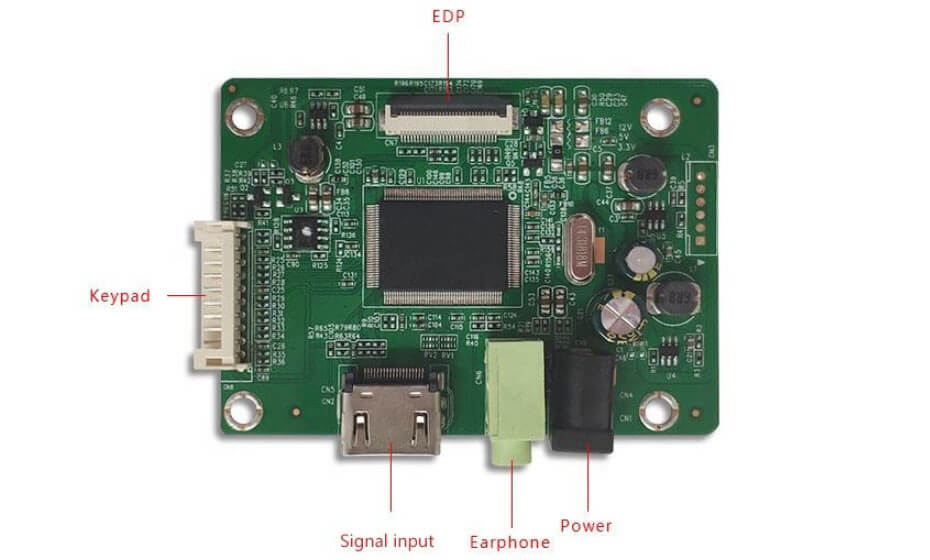

VVX10F011B00 10.1 Inch TFT LCD Display 1920x1200 eDP 650nits LCD Module With Driver Board

10.1 Inch LCD Display Overview

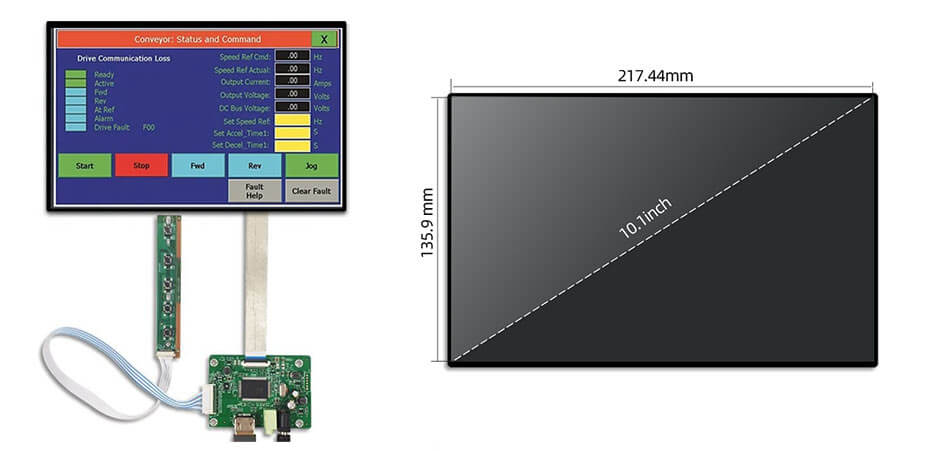

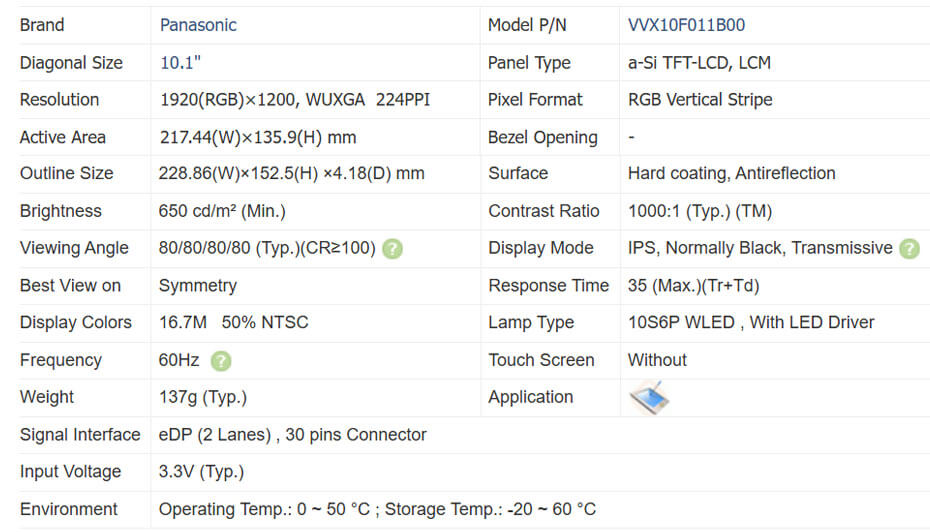

VVX10F011B00 is a 10.1 inch diagonal a-Si TFT-LCD display screen product from Panasonic, with a built-in WLED backlight, With LED Driver, without touch screen. VVX10F011B00 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 217.44(W)×135.9(H) mm, outline size of 228.86(W)×152.5(H)×4.18(D) mm, with surface treament of Hard coating, Antireflection, net weight of 137g (Typ.). As a IPS, Normally Black, Transmissive LCM product, VVX10F011B00 can provides 650 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥100) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 10S6P WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. VVX10F011B00 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
