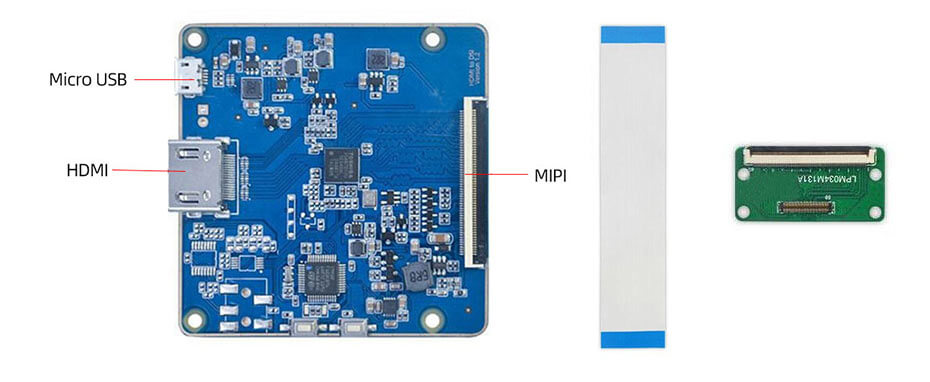

C101UAT03.0 AUO 10.1 Inch TFT LCD Display 1920x1200 Wide Temperature 900nits High Brightness LCD Module With Driver Board

10.1 Inch LCD Display Overview

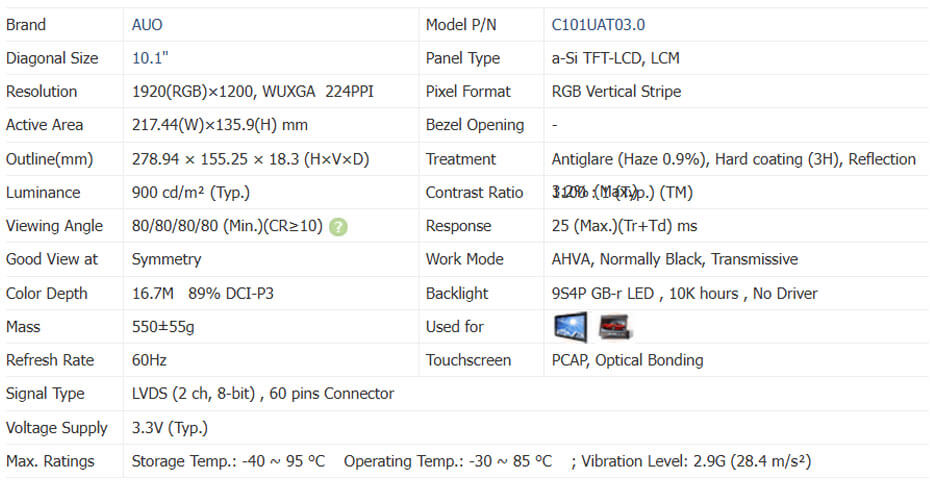

C101UAT03.0 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 217.44(W)×135.9(H) mm, outline size of 278.94(W)×155.25(H)×18.3(D) mm, with surface treament of Antiglare (Haze 0.9%), Hard coating (3H), Reflection 3.2% (Max.), net weight of 550±55g. As a AHVA, Normally Black, Transmissive LCM product, C101UAT03.0 can provides 900 cd/m² display brightness 1100:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 89% (DCI-P3). This product adopted 9S4P GB-r LED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. C101UAT03.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

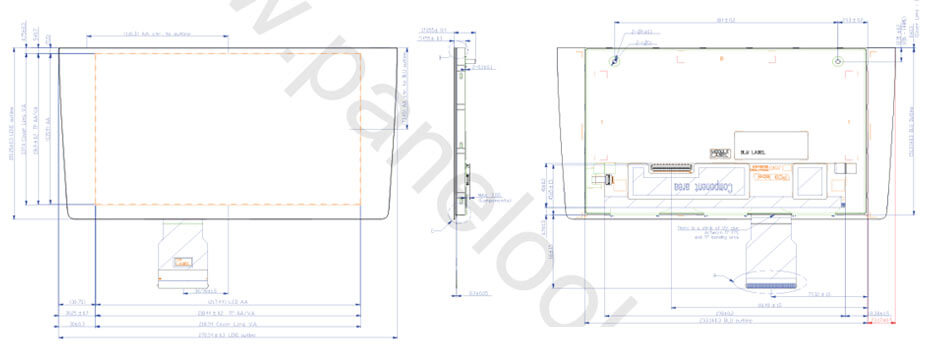

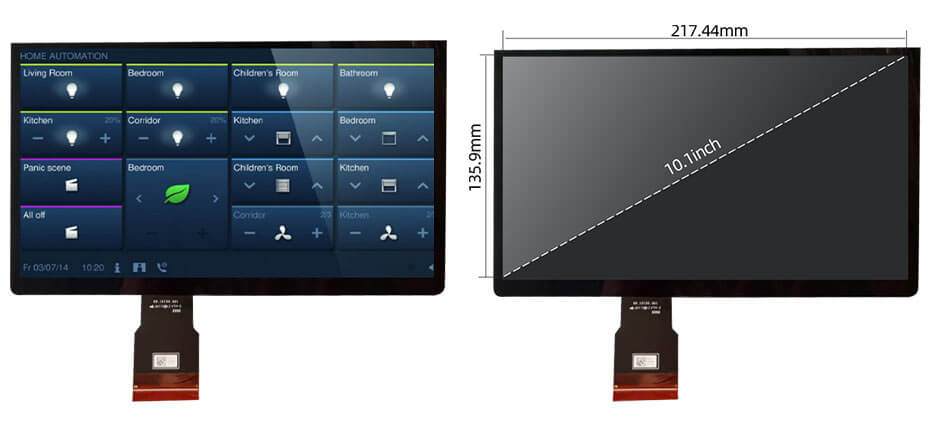

10.1 Inch LCD Display Drawing
