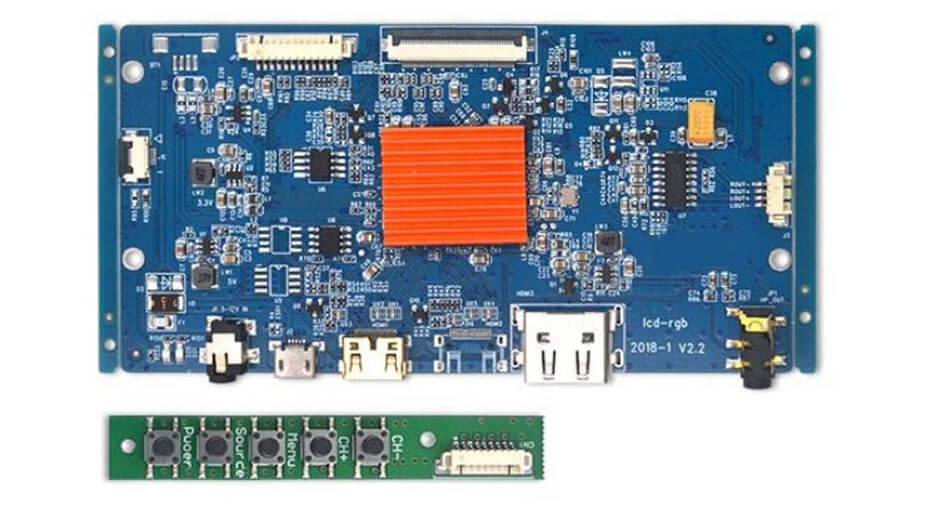

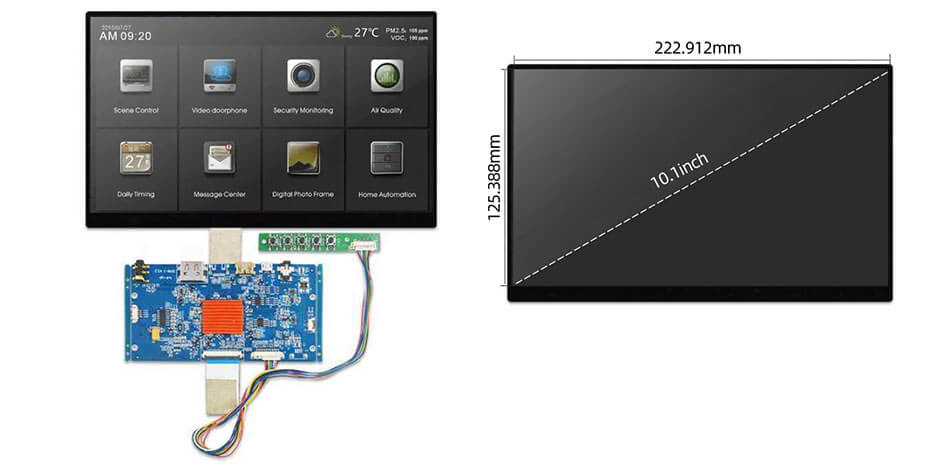

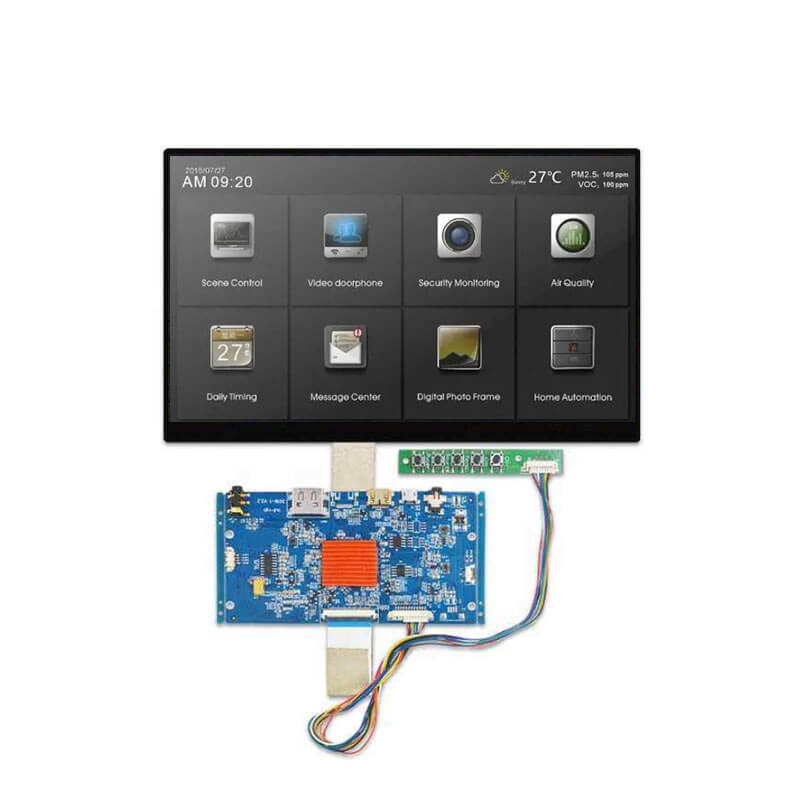

TV101QUM-N00 10.1 Inch TFT LCD Display 3840x2160 eDP LCD Module With Driver Board

10.1 Inch LCD Display Overview

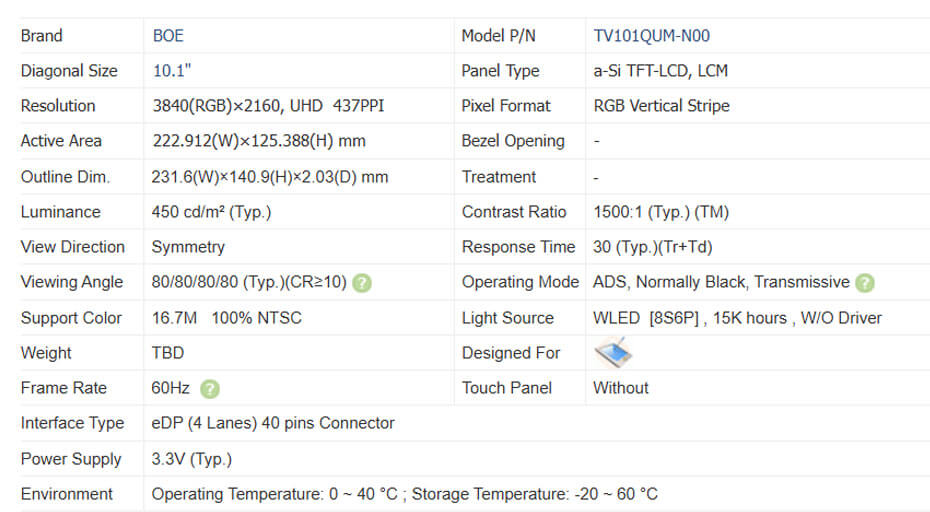

TV101QUM-N00 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe,it's pixel density is 437 PPI. As for mechanical detail, it features active area of 222.912(W)×125.388(H) mm, outline size of 231.6(W)×140.9(H)×2.03(D) mm, net weight of TBD. As a ADS, Normally Black, Transmissive LCM product, TV101QUM-N00 can provides 450 cd/m² display brightness 1500:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (NTSC). This product adopted 8S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. TV101QUM-N00 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
