BP082WX1-100 8.2 Inch TFT LCD Display 1280x800 LVDS LCD Module With Driver Board

8.2 Inch LCD Display Overview

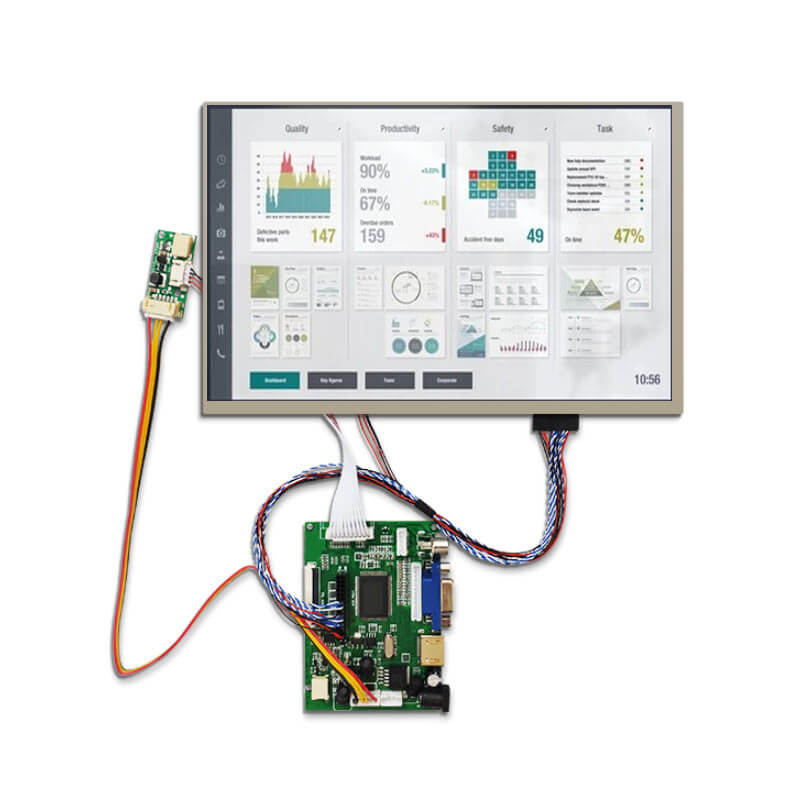

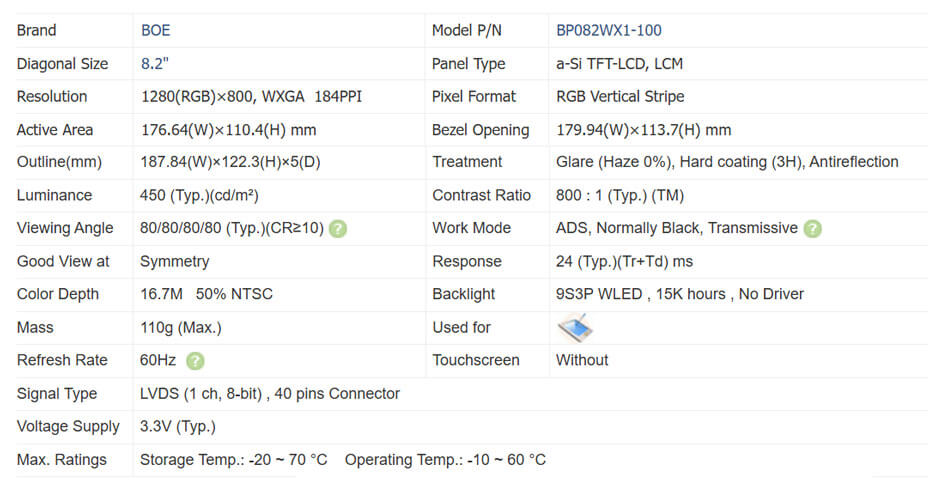

BP082WX1-100 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 176.64(W)×110.4(H) mm, outline size of 187.84(W)×122.3(H)×5(D) mm, viewing area size of 179.94(W)×113.7(H) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), Antireflection, net weight of 110g (Max.). As a ADS, Normally Black, Transmissive LCM product, BP082WX1-100 can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 24 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 9S3P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, external backlight driver is additionally needed. BP082WX1-100 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

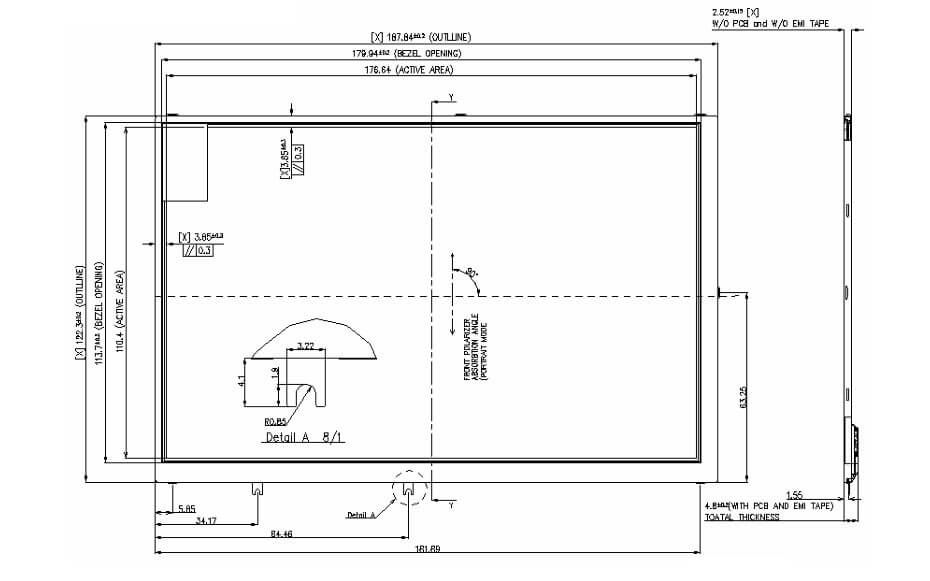

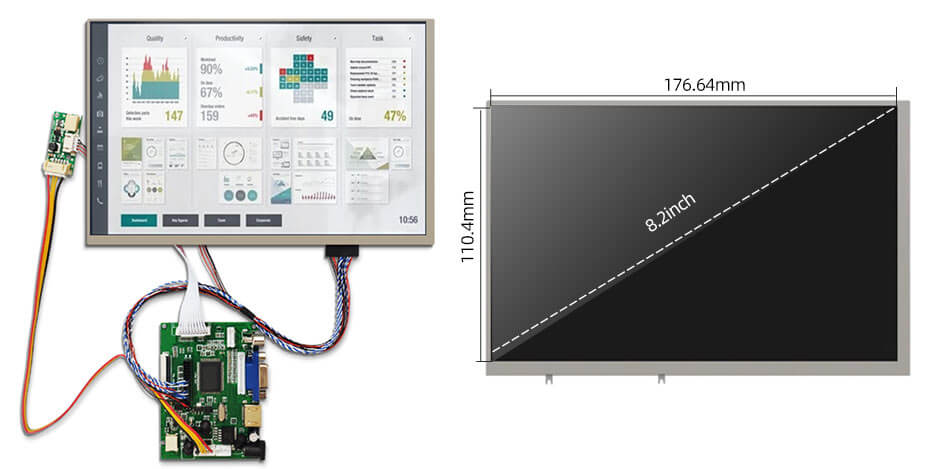

8.2 Inch LCD Display Drawing
