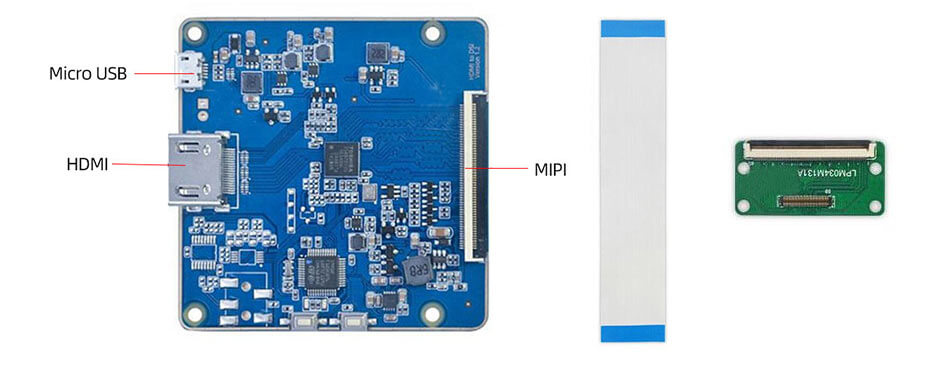

TV101WUM-NS0 BOE 10.1 Inch TFT LCD Display 1200x1920 MIPI LCD Module With Driver Board For Advertising Screen

10.1 Inch LCD Display Overview

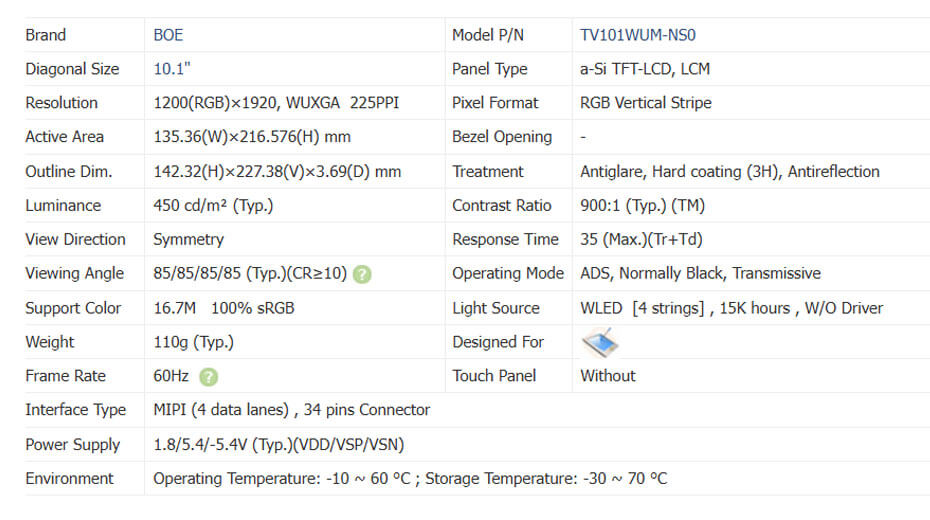

 TV101WUM-NS0 supports display 1200(RGB)×1920 (WUXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 135.36(W)×216.576(H) mm, outline size of 142.32(W)×227.38(H)×3.69(D) mm, with surface treament of Antiglare, Hard coating (3H), Antireflection, net weight of 110g (Typ.). As a ADS, Normally Black, Transmissive LCM product, TV101WUM-NS0 can provides 450 cd/m² display brightness 900:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. TV101WUM-NS0 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 34 pins Connector with power supply voltage of 1.8/5.4/-5.4V (Typ.)(VDD/VSP/VSN). It's typical vertical frame rate (Fv) is 60Hz.

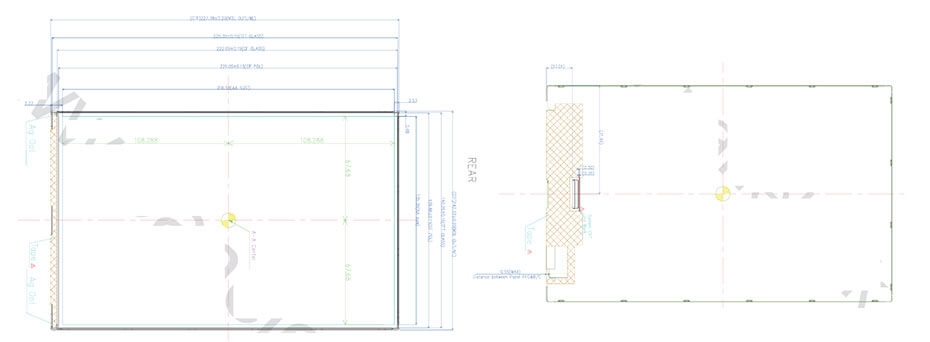

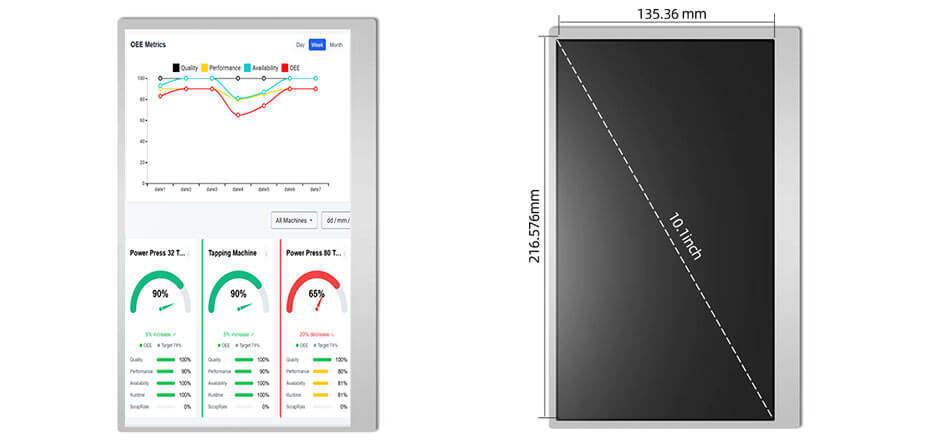

10.1 Inch LCD Display Drawing
