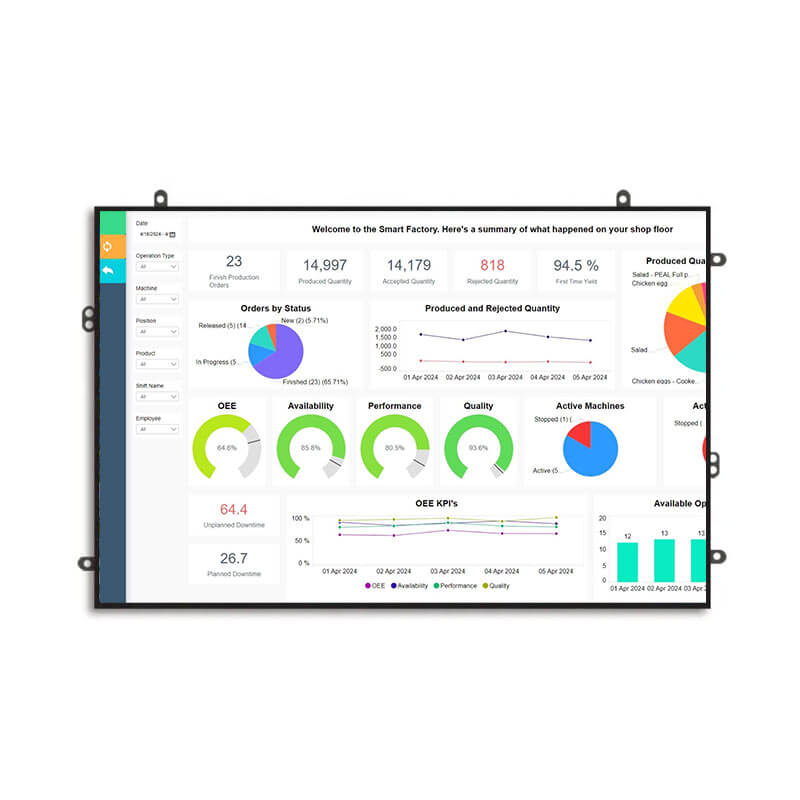

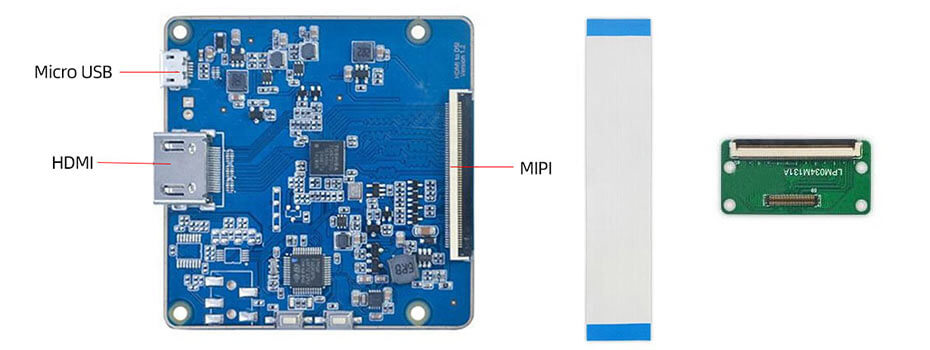

BP101WX1-400 BOE 10.1 Inch TFT LCD Display 1280x800 MIPI LCD Module With Driver Board For Tablet

10.1 Inch LCD Display Overview

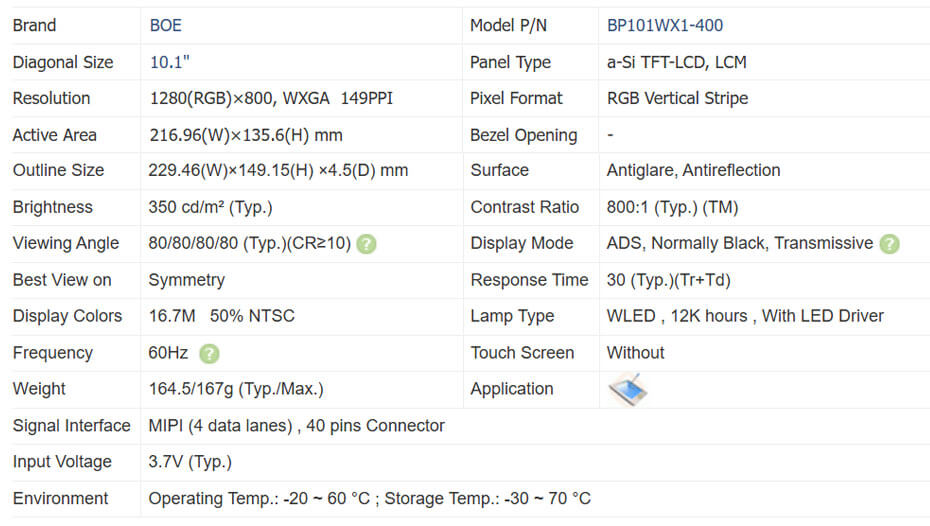

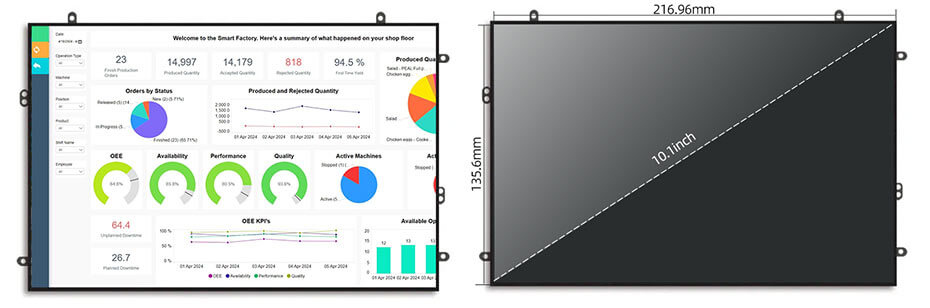

BP101WX1-400 is a 10.1 inch diagonal a-Si TFT-LCD display screen with a built-in WLED backlight, With LED Driver, without touch screen. BP101WX1-400 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 229.46(W)×149.15(H)×4.5(D) mm, with surface treament of Antiglare, Antireflection, net weight of 164.5/167g (Typ./Max.). As a ADS, Normally Black, Transmissive LCM product, BP101WX1-400 can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 12K hours, With LED Driver. BP101WX1-400 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.7V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
