G101EVN03.0 AUO 10.1 Inch TFT LCD Display 1280x800 LVDS Ultra High Brightness 1000nits LCD Module With Driver Board

10.1 Inch LCD Display Overview

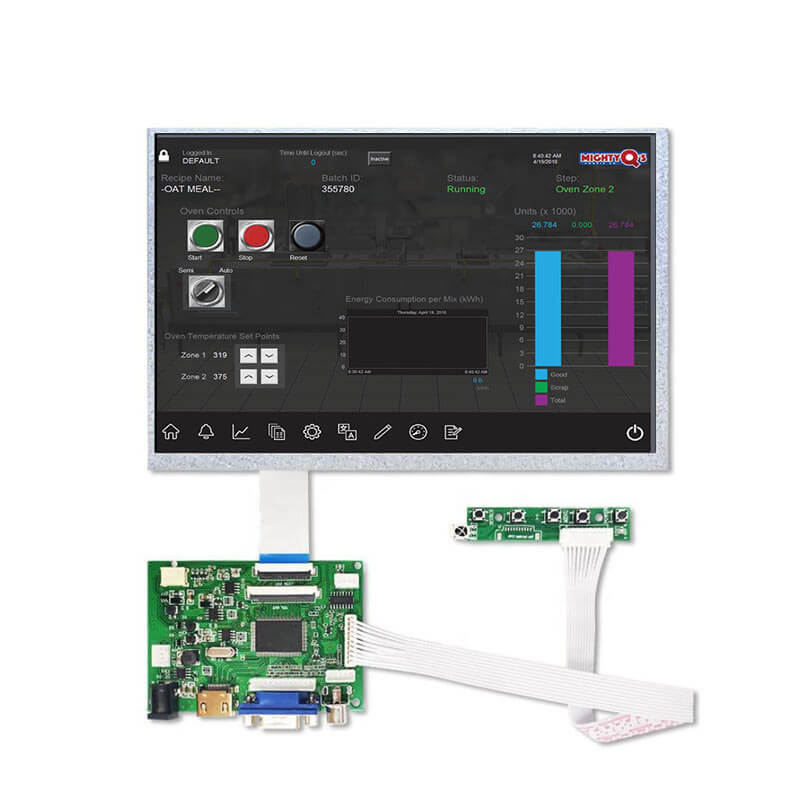

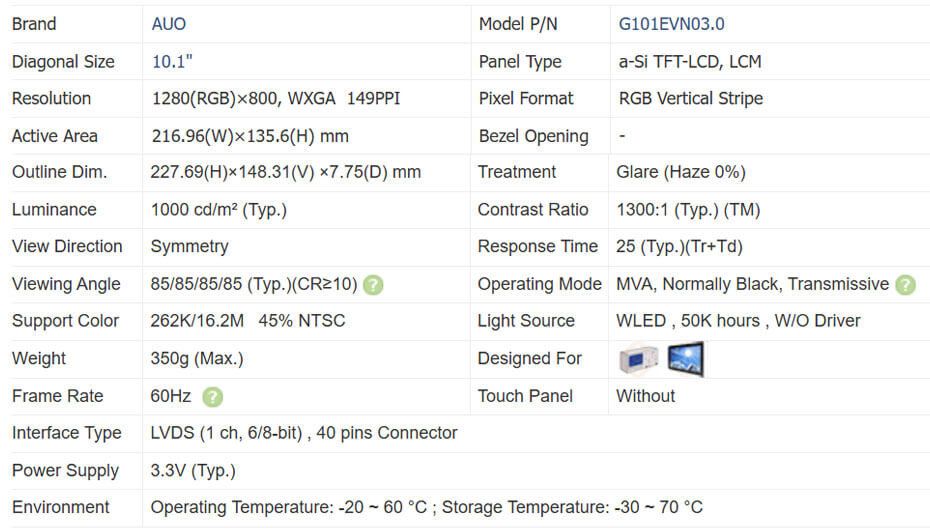

G101EVN03.0 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 216.96(W)×135.6(H) mm, outline size of 227.69(W)×148.31(H)×7.75(D) mm, with surface treament of Glare (Haze 0%), net weight of 350g (Max.). As a MVA, Normally Black, Transmissive LCM product, G101EVN03.0 can provides 1000 cd/m² display brightness 1300:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. G101EVN03.0 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

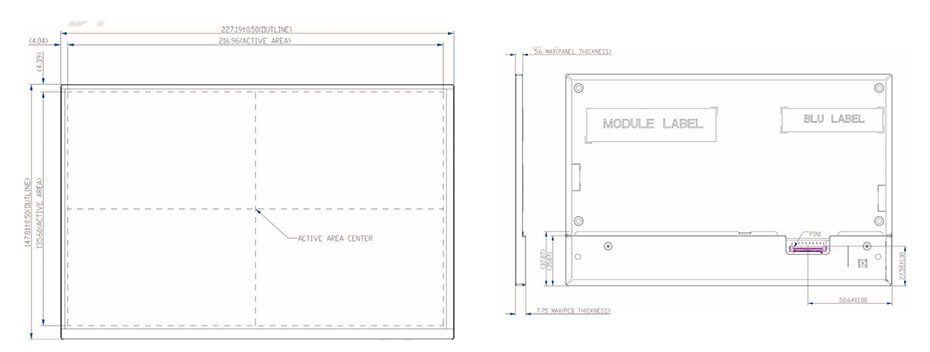

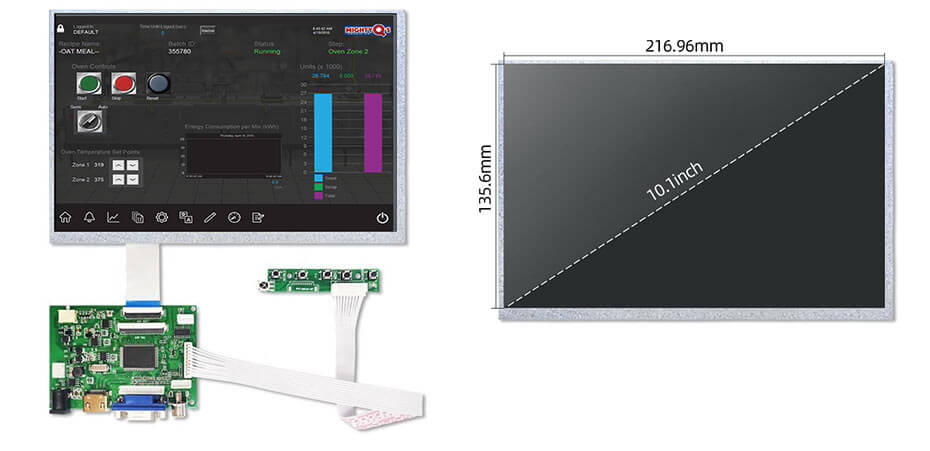

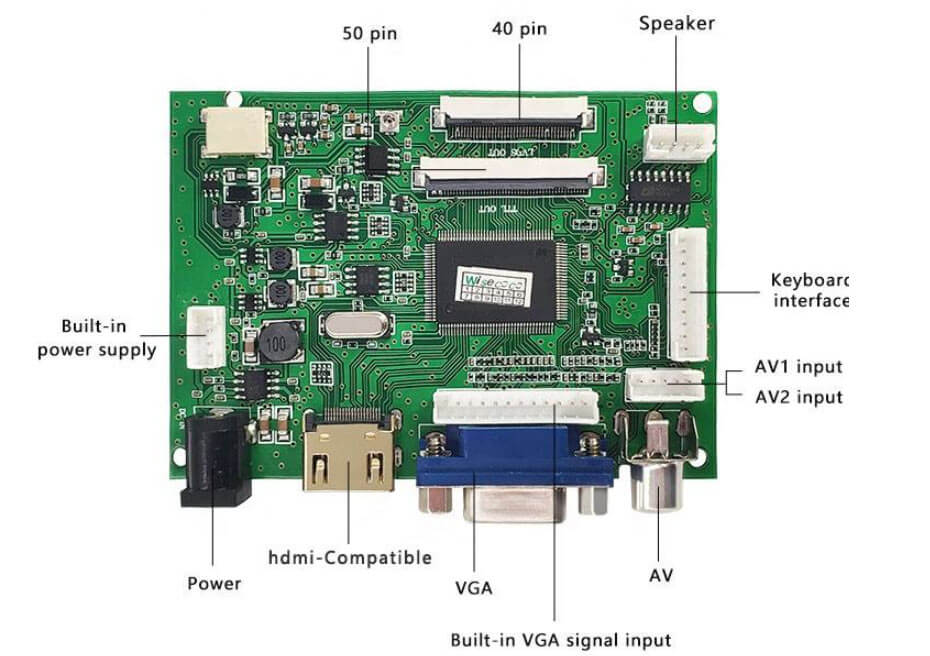

10.1 Inch LCD Display Drawing
