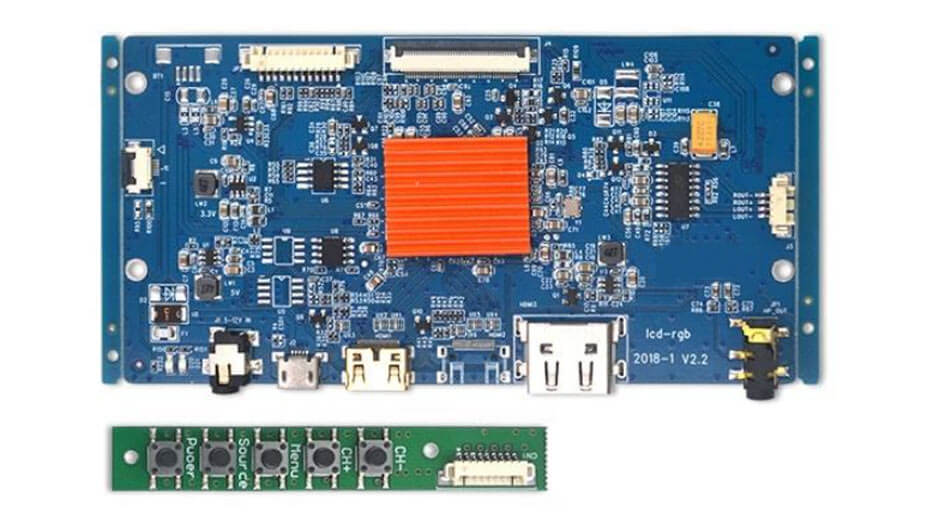

G101QAN01.1 AUO 10.1 Inch TFT LCD Display 1600x2560 MIPI LCD Module With Driver Board

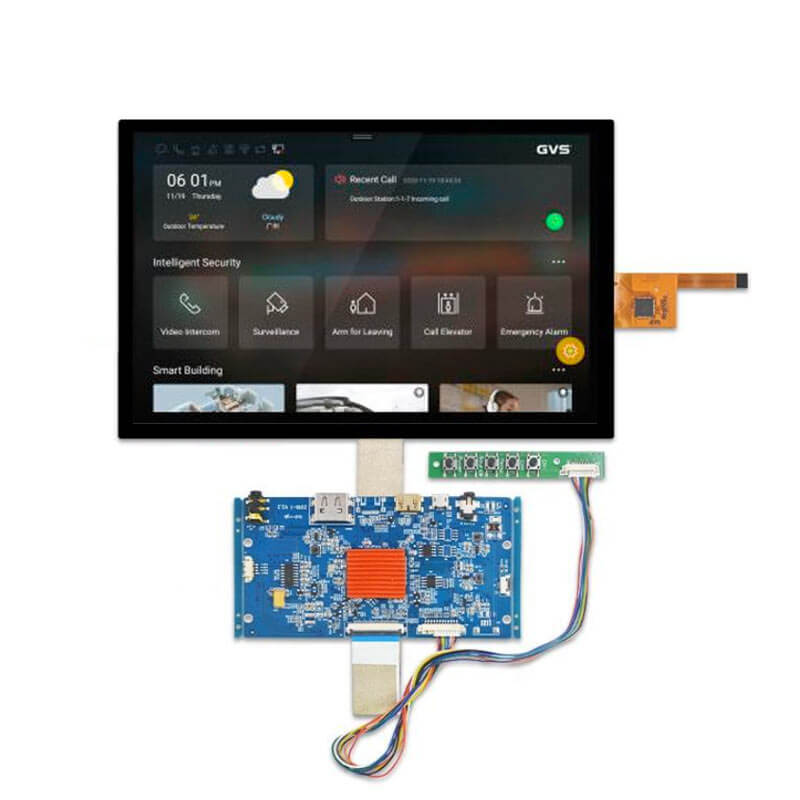

10.1 Inch LCD Display Overview

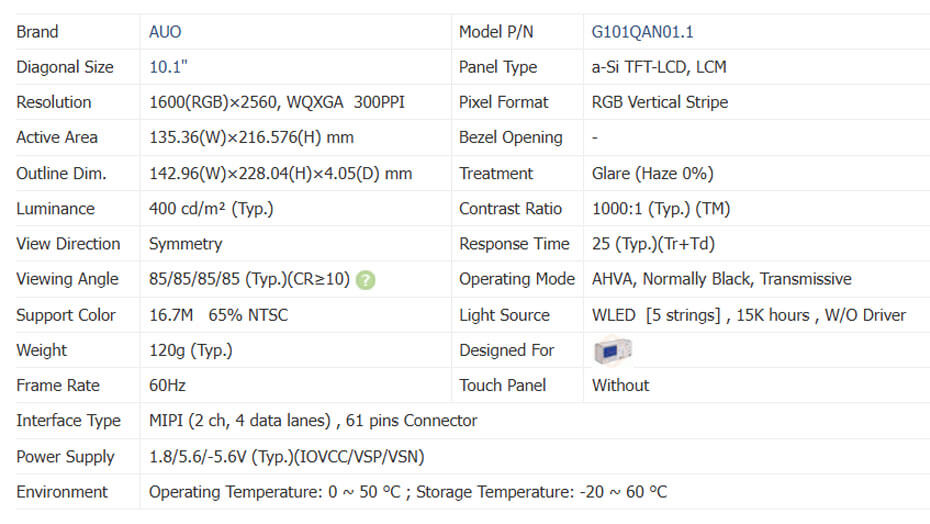

G101QAN01.1 supports display 1600(RGB)×2560 (WQXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe,it's pixel density is 300 PPI. As for mechanical detail, it features active area of 135.36(W)×216.576(H) mm, outline size of 142.96(W)×228.04(H)×4.05(D) mm, with surface treament of Glare (Haze 0%), net weight of 120g (Typ.). As a AHVA, Normally Black, Transmissive LCM product, G101QAN01.1 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 65% (NTSC). This product adopted 5 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. G101QAN01.1 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 61 pins Connector with power supply voltage of 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN). It's typical vertical frame rate (Fv) is 60Hz.

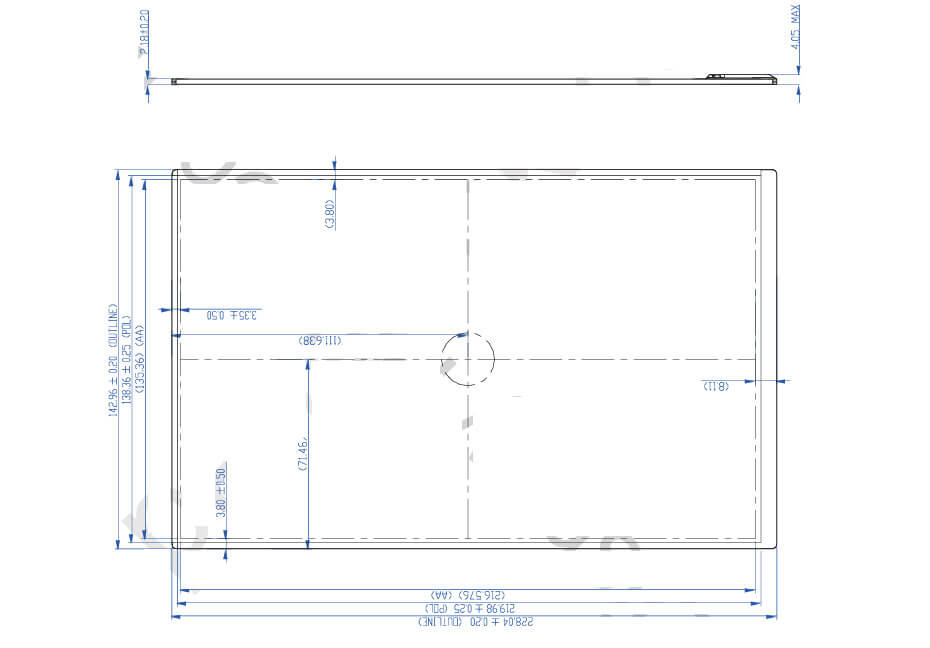

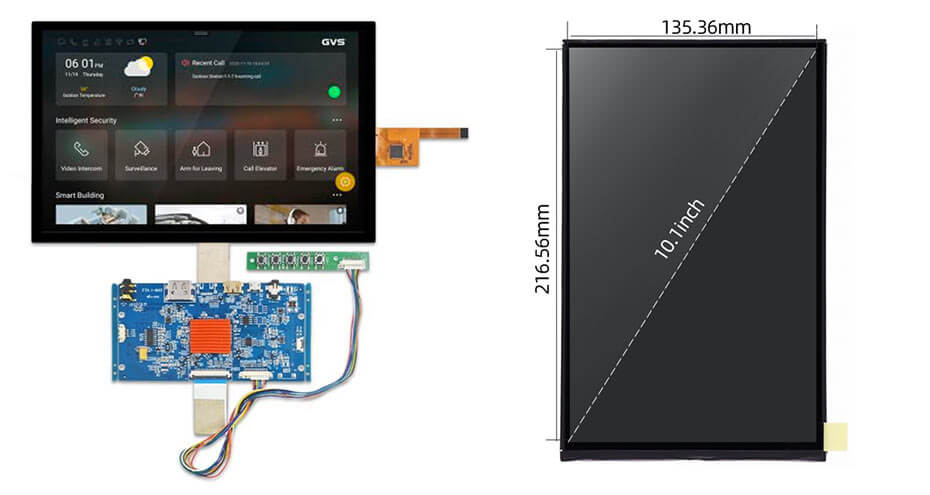

10.1 Inch LCD Display Drawing
