10.1 Inch LCD Display Overview

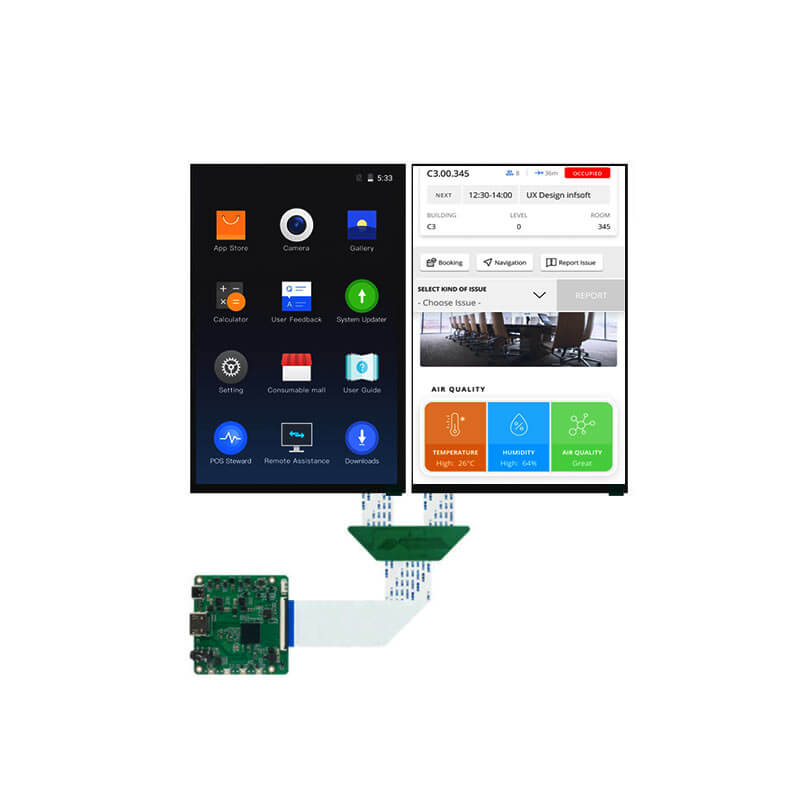

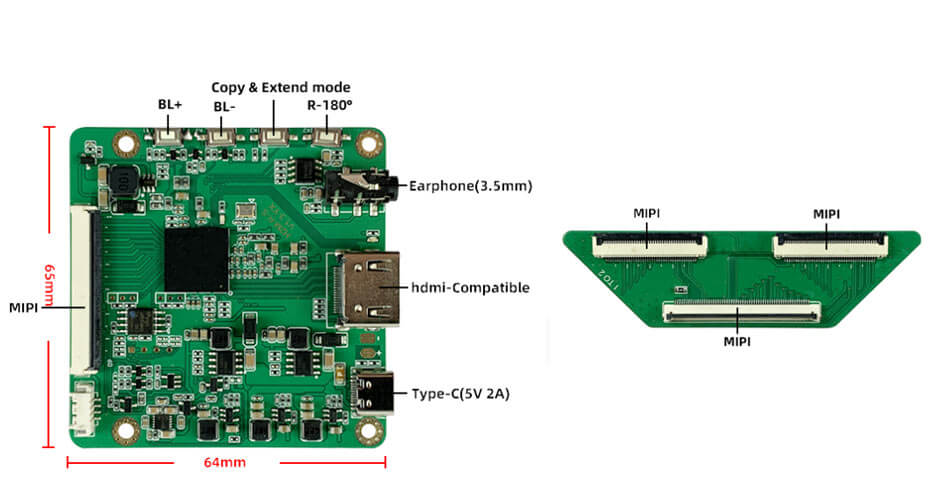

ET101WX01-W-Dual is a 10.1-inch IPS dual LCD display module with a resolution of 800×1280, designed for gaming applications. It features a normally black IPS panel with a MIPI interface and supports 60 Hz operation. The display offers an active area of 216.58 × 135.36 mm within a slim outline dimension of 228.6 × 143 × 2.6 mm, delivers a typical brightness of 350 cd/m², operates from −20 to 60 °C (storage −20 to 70 °C), and is supplied with a driver board without touch support.
Size: 10.1 inch
Resolution: 800(RGB)x1280
Brightness: 350 cd/m2 (TYP)
Interface: MIPI
Display mode
IPS,Normally black

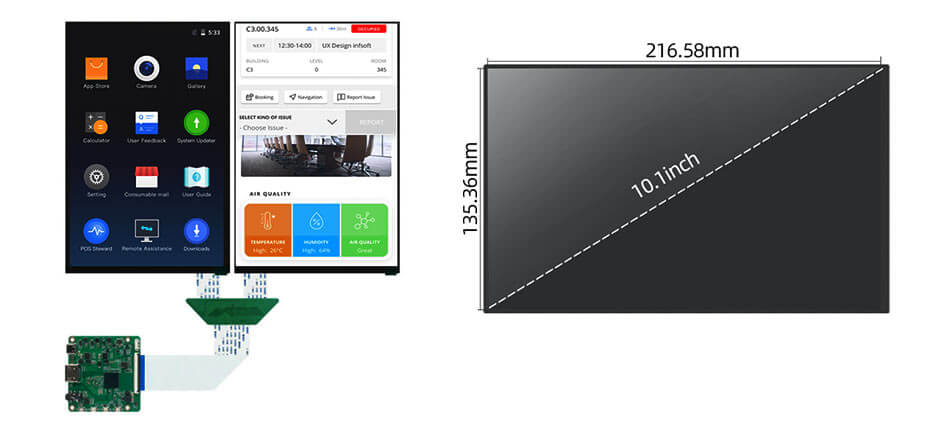

Active area: 216.58x135.36mm
Pixel pitch: 0.1692x0.1692mm
LCM size: 228.60x143x2.6mm
Pixel arrangement: RGB Vertical stripe
Surface Treatment: 2H Clare
Contrast Ratio: 800(TYP)
Operation Temperature: -20°~60°
Storage Temperature: -20°~70°
