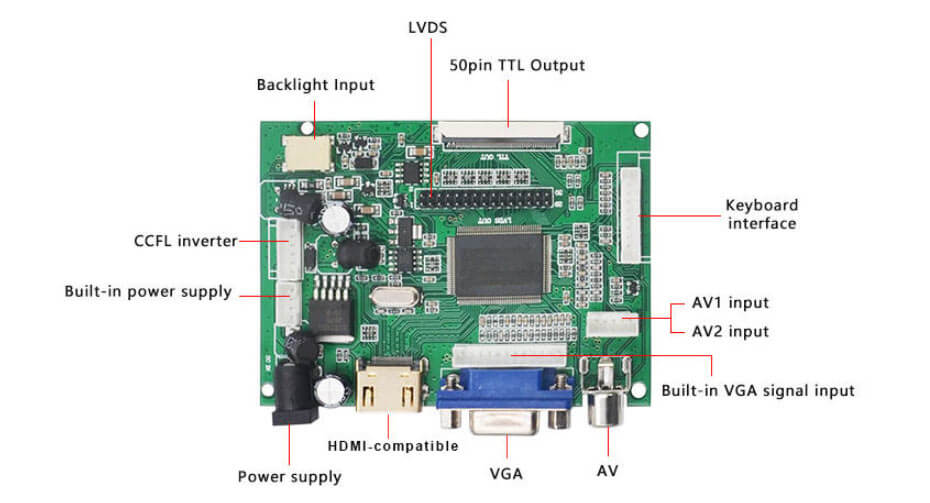

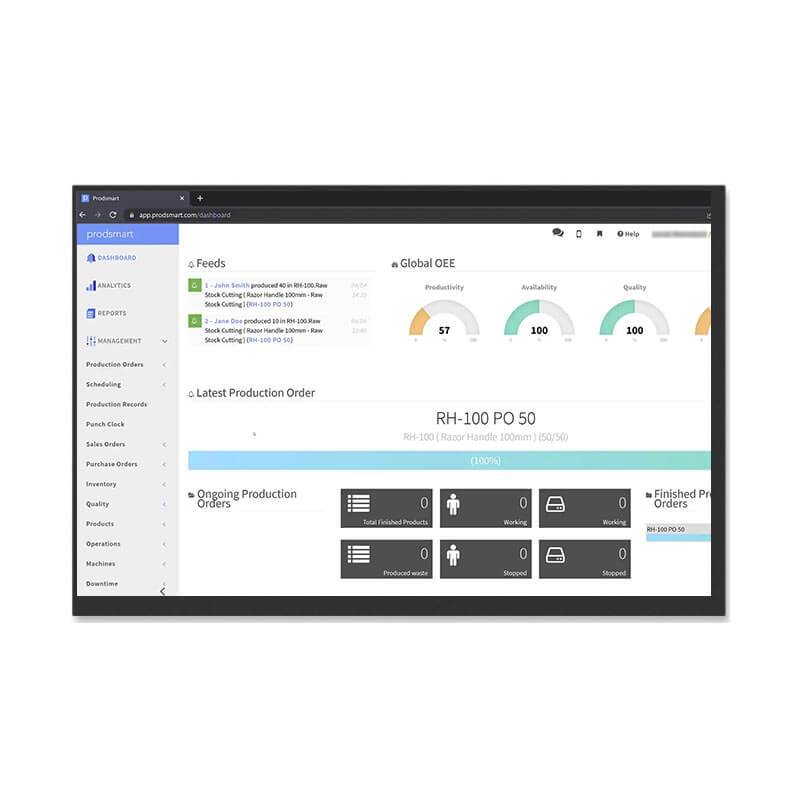

10.1 Inch TFT LCD Display 1280x800 IPS LVDS USB Touchscreen LCD Module With Driver Board.

Part No.:ET101WX01-W1
Size:10.1″ inch
Resolution:1280x800
Panel Interface:LVDS (1 ch,8-bit)
Display mode:PLS,Transmissive

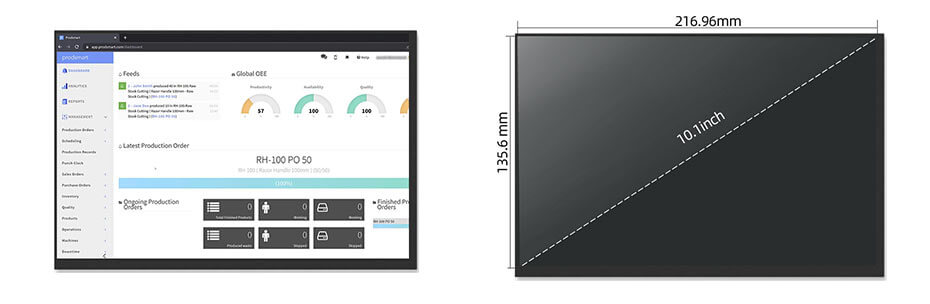

Outline Dimension:228.21x148.86x4.59mm
Active Area:216.96x135.6mm
Viewing Angle L/R/U/D:89/89/89/89 (Typ.)
Brightness（cd/m2）:450cd/m²(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:yes

10.1 Inch LCD Display Overview
10.1 Inch TFT LCD Display 1280x800 IPS LVDS USB Touchscreen LCD Module With Driver Board.

Panel Size: 10.1 inch
Panel Type: LCM, a-Si TFT-LCD
Resolution: 1280(RGB)×800 (WXGA)
Pixel Format: RGB Vertical Stripe
Display Area: 216.96x135.6mm
Outline Size: 228.21x148.86x4.59mm
Bezel Area: 218.56x137.2mm
Brightness: 450 cd/m² (Typ.)
Contrast Ratio: 900:1 (Typ.) (TM)
Viewing Angle: 89/89/89/89 (Typ.)
Lamp Type: 4 strings WLED , No Driver
Response Time: 30 (Typ.)(Tr+Td) ms
Work Mode: PLS, Normally Black, Transmissive
Refresh Rate: 60Hz
Application: Pad, Tablet
Signal Interface: LVDS (1 ch, 8-bit) , 45 pins Connector
Storage Temp.: -20 ~ 60 °C
Operating Temp.: 0 ~ 50 °C
