7.1"-10.1" LCD Display (10.1")

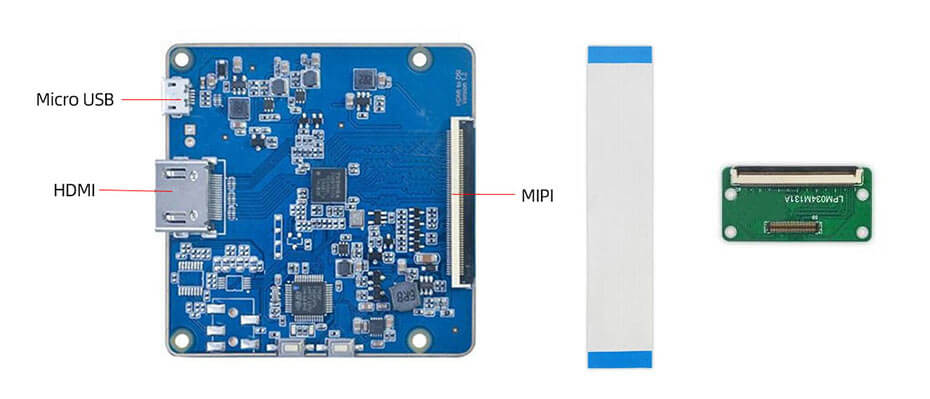

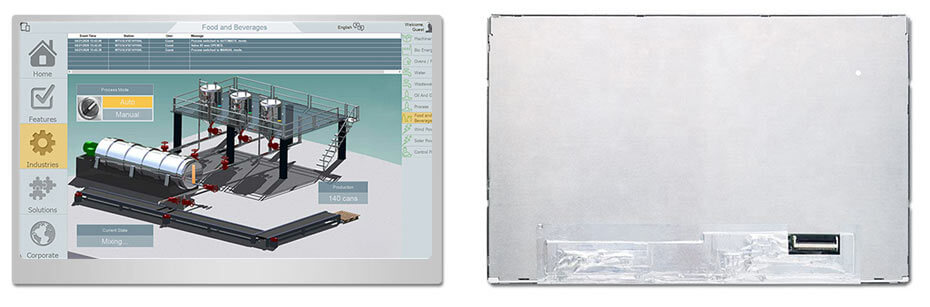

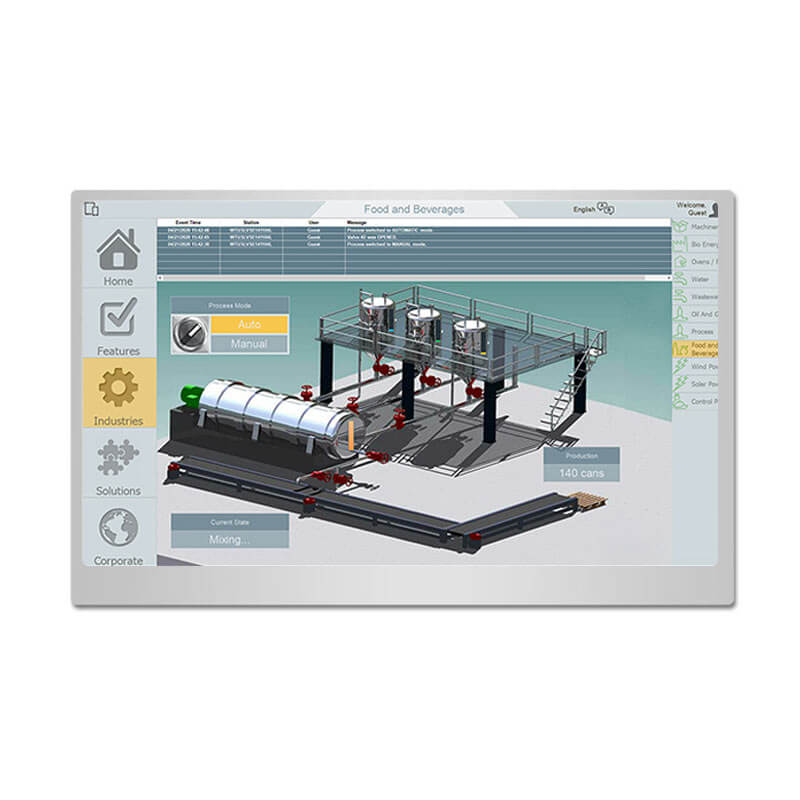

10.1 Inch High Brightness LCD Display 1280x720 Outdoor Touch Screen With Driver Board For Advertising

Part No.:ET101HD01-W
Size:10.1″ inch
Resolution:1280x720
Panel Interface:LVDS
Display mode:LCM,a-Si TFT-LCD
Outline Dimension:238.6x148x9.7mm
Active Area:223.68x125.82mm
Viewing Angle L/R/U/D:/
Brightness（cd/m2）:/
Operation / Storage Temp:/ / /
Touch:yes

10.1 Inch LCD Display Overview
10.1 Inch High Brightness LCD Display 1280x720 Outdoor Touch Screen With Driver Board For Advertising.

Diagonal Size: 10.1 inch
Type: a-Si TFT-LCD, LCM
Pixel Format: 1280(RGB)x720[WXGA]
Configuration: RGB Vertical Stripe
Active Area: 223.68x125.82mm
Outline Dim.:238.6x148x9.7mm
Bezel Area:226.68x128.82mm
Luminance: 750 cd/m² (Typ.)
Contrast Ratio: 1000:1 (Typ.) (TM)
View Direction: Symmetry
Response Time: 10/15 (Typ.)(Tr/Td)
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
Operating Mode: AAS, Normally Black, Transmissive
Operating Temperature: -30 ~ 85 °C
Storage Temperature: -40 ~ 90 °C
