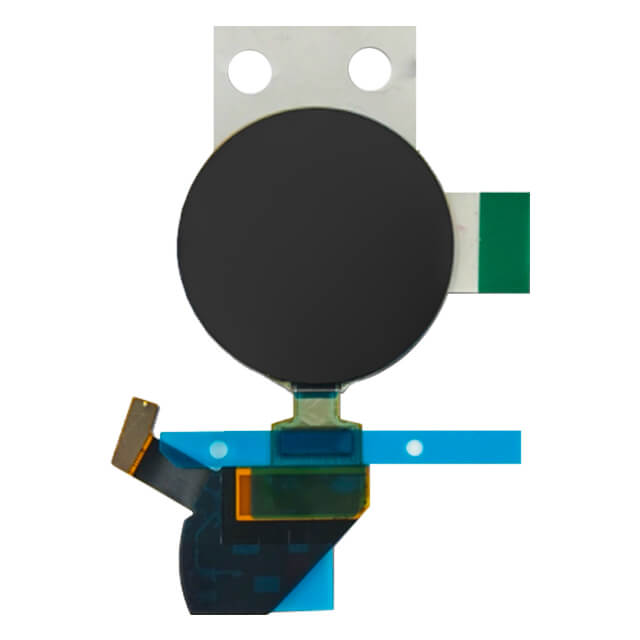

Product size
|
1.2-inch
|
Type
|
AM-OLED, OLED
|
||
|
Pixel Format
|
390(RGB)×390 325PPI
|
Configuration
|
RGB Vertical Stripe
|
||
|
Active Area
|
30.42(H)×30.42(V) mm
|
Outline Dim.
|
33.22(H)×33.75(V) ×0.75(D) mm
|
||
|
Luminance
|
350 cd/m² (Typ.)
|
Contrast Ratio
|
10000:1 (Min.) (TM)
|
||
|
View Direction
|
Symmetry
|
Response Time
|
-
|
||
|
Viewing Angle
|
80/80/80/80 (Min.)(CR≥1600)
|
Operating Mode
|
-
|
||
|
Support Color
|
16.7M 101% NTSC
|
Light Source
|
self
|
||
|
Weight
|
-
|
Designed For
|
Wearable Round Display
|
||
|
Frequency
|
45Hz
|
Touch Panel
|
Without
|
||
|
D-IC Detail
|
COG Built-in W022 ASIC
|
||||
|
Interface Type
|
MIPI (2 data lanes) , 20 pins Connector
|
||||
|
Power Supply
|
1.8/3.3/3.3/-3.3V (Typ.)(VDDIO/VCI/ELVDD/ELVSS)
|
||||
|
Environment
|
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 85 °C
|
||||
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
