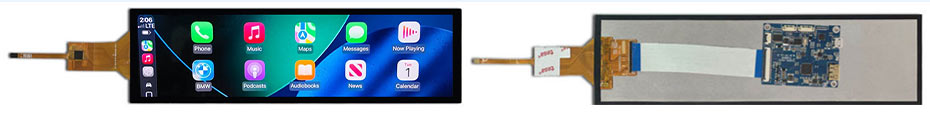

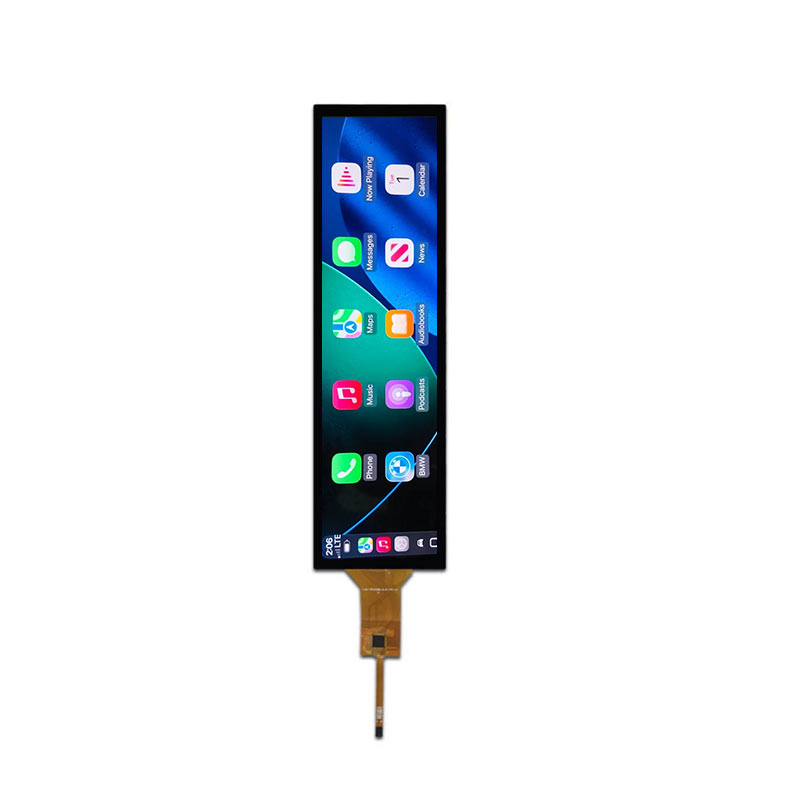

8.8 Inch Stretched Bar Display Overview
ET088WF01-TT-HDMI is an 8.8-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 480 × 1920 pixels and uses a MIPI interface for high-speed signal transmission. The display provides an active area of 54.72 (W) × 218.88 (H) mm within an outline dimension of 64.1 (W) × 231.2 (H) mm, making it ideal for tall, vertical-oriented applications. With wide viewing angles of 80° in all directions (L/R/U/D), it delivers stable and consistent image quality. The typical brightness reaches 550 cd/m², ensuring excellent visibility even in bright ambient-light conditions. ET088WF01-TT-HDMI is designed for reliable operation across a broad temperature range, supporting −20 to 70°C operating temperature and −30 to 80°C storage temperature. This model is supplied without touch functionality, making it suitable for high-brightness stretched bar display applications in industrial systems, transportation equipment, and embedded devices.

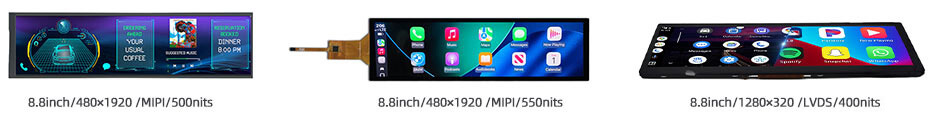

More 8.8 Inch Bar Displays For Reference
ET088WF01-T (400x1920, MIPI, IPS, 500nits, -20~70°C, 64.3x231.3mm)
ET088WF01-TT-HDMI (400x1920, MIPI, IPS, 550nits, -20~70°C, 64.1x231.2mm)
ET088BA01-S (1280x320, LVDS, IPS, 400nits, -20~70°C, 229.66x67.5mm)
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
