5.8 Inch Stretched Bar Display Overview

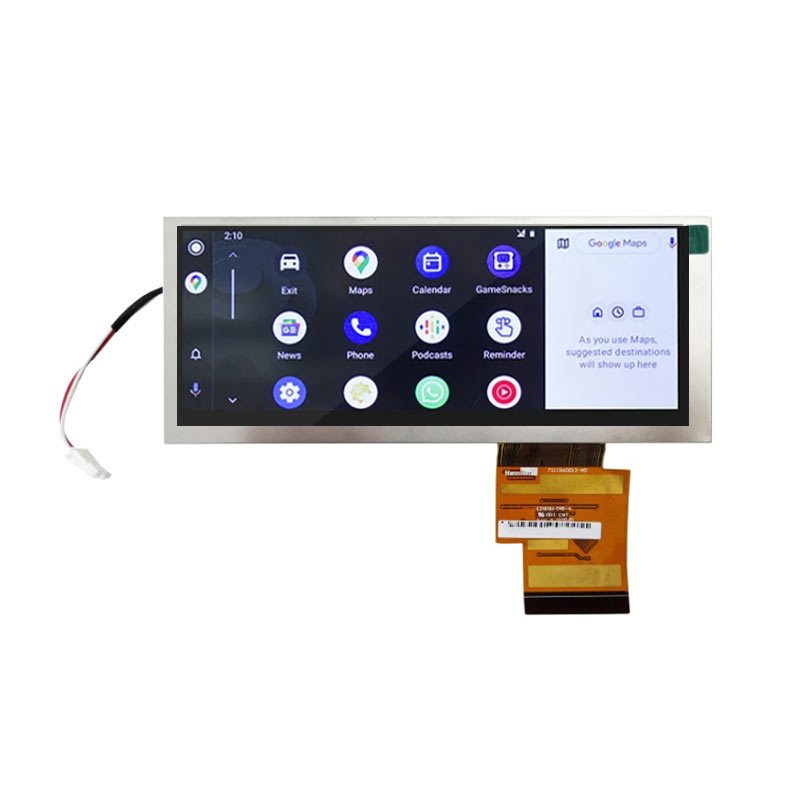

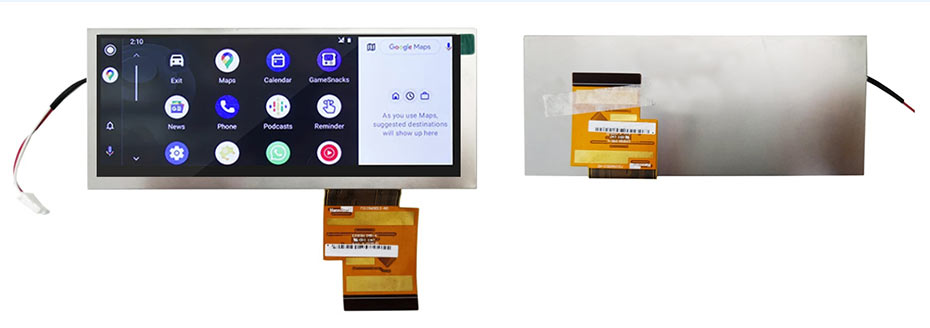

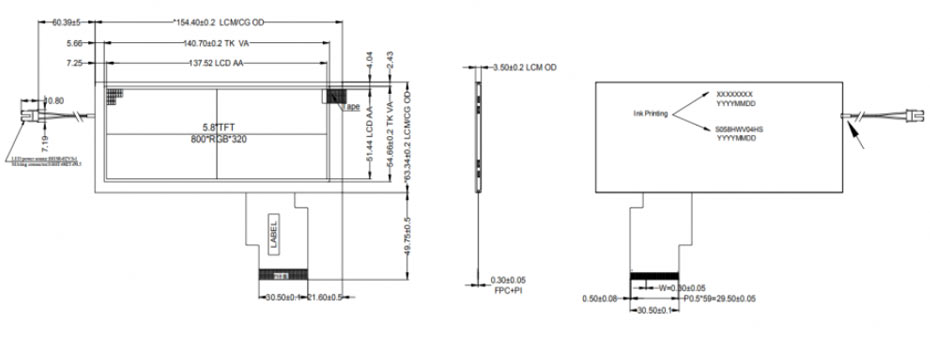

ET058BA01-S is a 5.8-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 800 × 320 pixels and uses a TTL interface for signal transmission. The display provides an active area of 137.52 (W) × 51.44 (H) mm, with an overall outline dimension of 155.2 (W) × 64.46 (H) mm, making it suitable for wide, horizontal elongated applications. The viewing angles are 65° left/right, 65° up, and 55° down, ensuring reliable visibility from multiple directions. With a minimum brightness of 500 cd/m², the display offers good readability in bright environments. ET058BA01-S is designed for wide-temperature operation, supporting an operating temperature range of −30 to 85°C and a storage temperature range of −40 to 85°C. This model is supplied without touch functionality, making it well suited for high-brightness, wide-temperature stretched bar display applications such as industrial equipment, transportation systems, and embedded devices.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
