0.48"-5" LCD Display

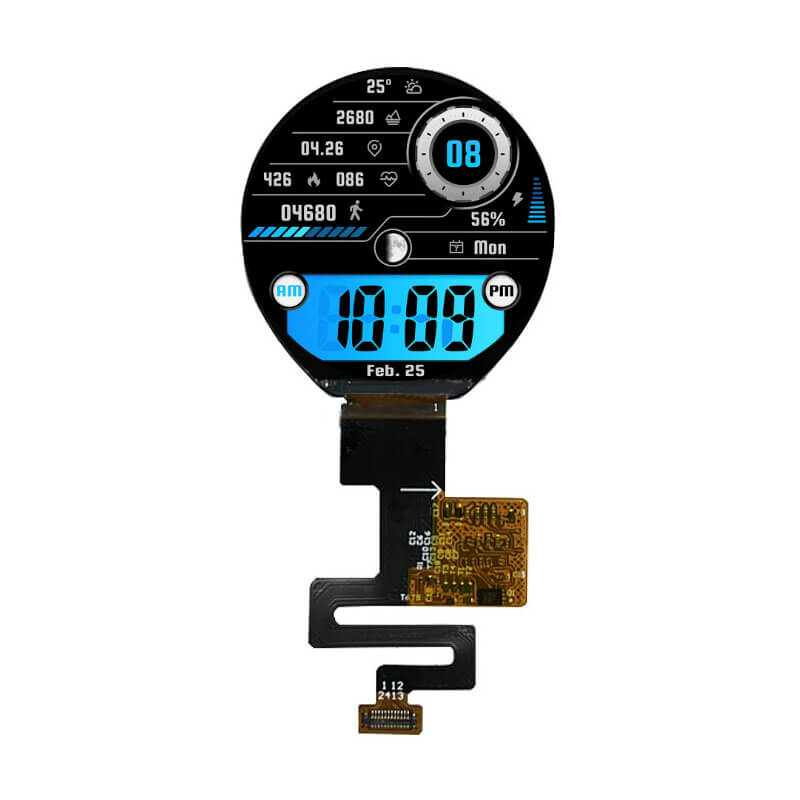

1.46 Inch Circular Display 412x412 SPI IPS Round LCD Display For Handheld & PDA

Part No.:ET015CR01-H
Size:1.46″ inch
Resolution:412x412
Panel Interface:SPI
Display mode:Transmissive
Outline Dimension:39.36x41.53mm
Active Area:36.96x36.96mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:450(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

1.46 Inch Circular Display Overview
1.46 Inch Circular Display 412x412 SPI IPS Round LCD Display For Handheld & PDA.

Circular Display Application

Production and Manufacturing
