16.8 Inch Stretched Bar Display 1920x540 IPS 500nits High Brightness LVDS TFT LCD Display

16.8 Inch Stretched Bar Display Overview

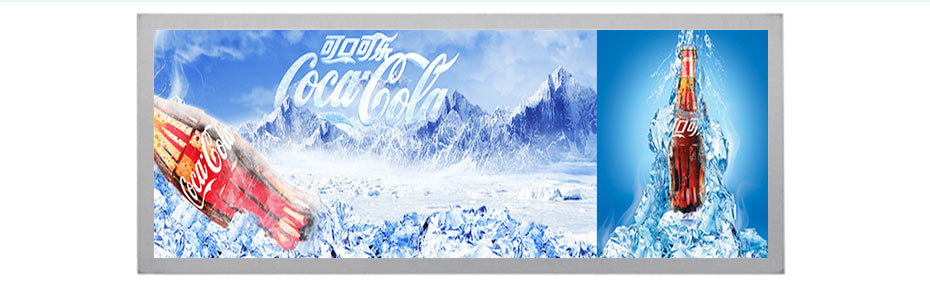

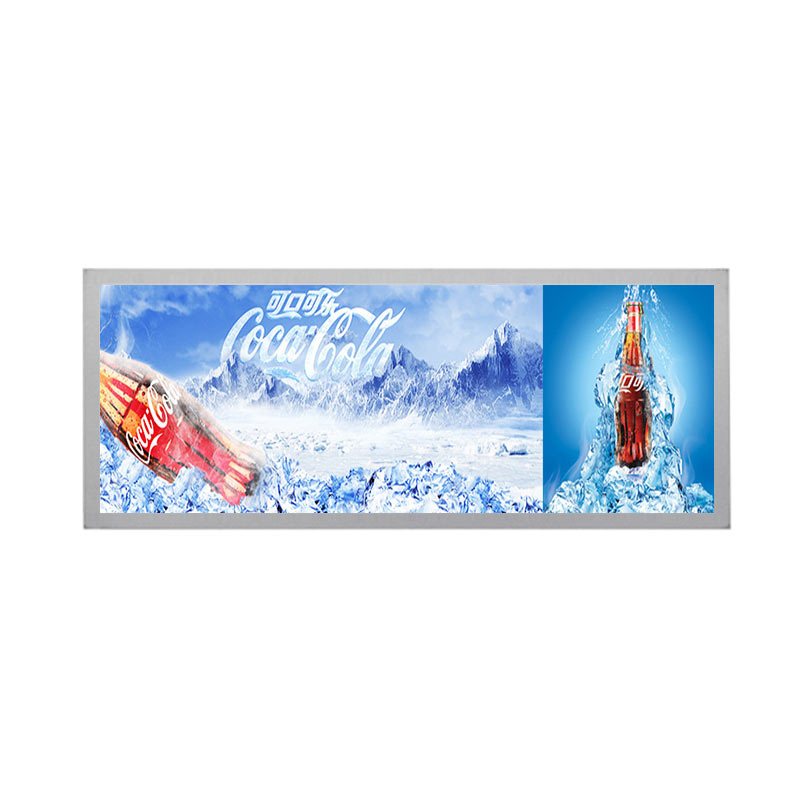

ET168BA01-HT is a 16.8-inch diagonal stretched bar TFT-LCD display product featuring a transmissive IPS panel. It supports a 1920 × 540 resolution, providing a high-definition wide-format display ideal for horizontal information presentation and graphical applications, with pixels arranged in a standard RGB sub-pixel structure. The display features an active area of 409.8 (W) × 115.2 (H) mm and an outline dimension of 439.8 (W) × 145.2 (H) mm, allowing integration into elongated and space-efficient system designs. ET168BA01-HT adopts an LVDS interface and delivers a typical brightness of 500 cd/m², ensuring good visibility in indoor and moderately bright environments. With ultra-wide viewing angles of 89° in all directions (L/R/U/D), it maintains consistent color and contrast from virtually any viewing position. The module is designed for reliable operation within a –20 to 70°C operating temperature range and a –30 to 80°C storage temperature range. This model does not support touch functionality and is well suited for applications such as industrial control panels, transportation displays, digital signage, and other wide-format embedded display solutions.

More 16.8 Inch Bar Displays For Reference

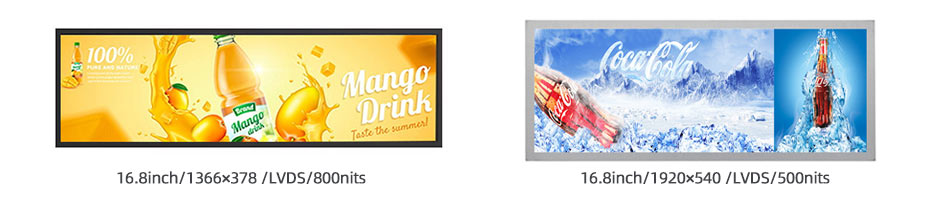

ET168BA01-RX (1366x378, LVDS, TN, 800nits, 0~50°C, 430.37x137.6mm)
ET168BA01-HT (1920x540, LVDS, IPS, 500nits, 0~50°C, 439.8x145.2mm)

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
