6.5 Inch Stretched Bar Display Overview

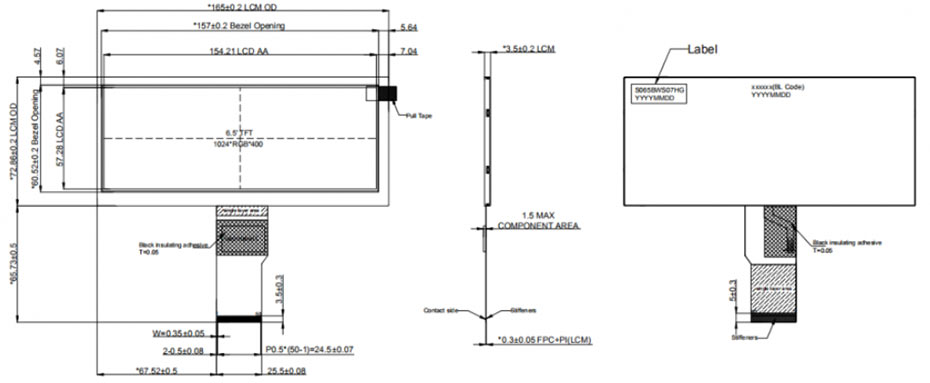

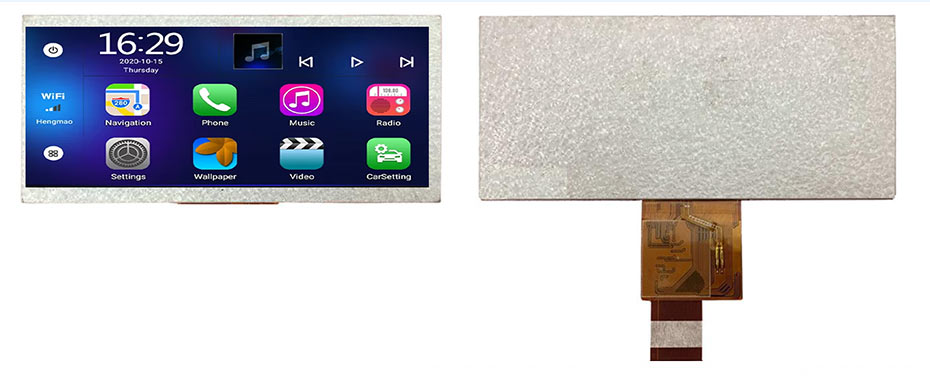

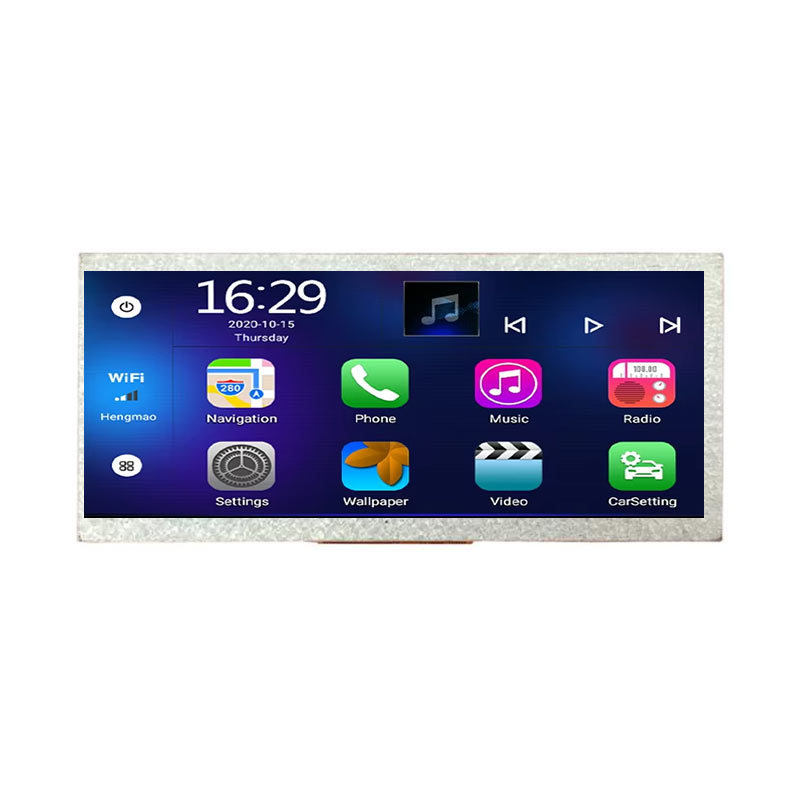

ET065BA01-S is a 6.5-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 1024 × 400 pixels and uses a TTL interface for signal communication. The display offers an active area of 154.21 (W) × 57.28 (H) mm within a compact outline dimension of 165 (W) × 72.86 (H) mm, making it suitable for wide, horizontal elongated applications. With wide viewing angles of 85° in all directions (L/R/U/D), it delivers consistent image quality from multiple perspectives. The typical brightness reaches 600 cd/m², ensuring excellent readability in bright ambient-light environments. ET065BA01-S is designed for reliable performance across a broad temperature range, supporting −20 to 70°C operating temperature and −30 to 80°C storage temperature. This model is supplied without touch functionality, making it ideal for high-brightness stretched bar display applications such as industrial control panels, automotive auxiliary displays, and embedded systems.
More 6.5 Inch Bar Displays For Reference
ET065BA01-S (1024x400 , TTL, IPS, 600nits, -20~70°C, 165x72.86mm)
ET065BA02-S (1024x400, LVDS, IPS, 800nits, -20~70°C, 165x72.86mm)
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
