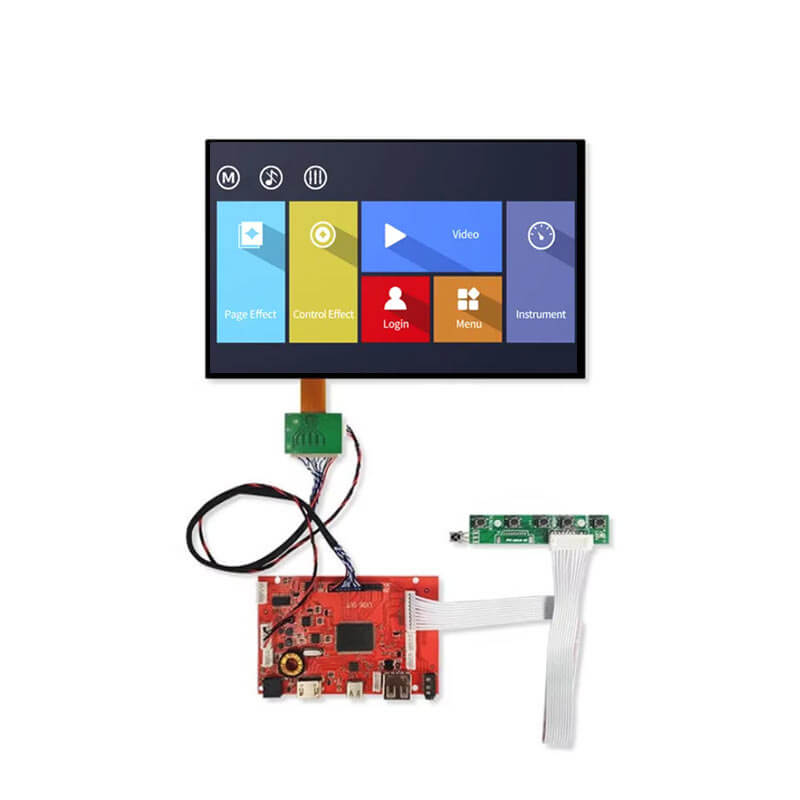

G101ICE-LH2 Innolux 10.1 Inch TFT LCD Display 1280x800 Ultra High Brightness 1200nits LCD Module With Driver Board

10.1 Inch LCD Display Overview

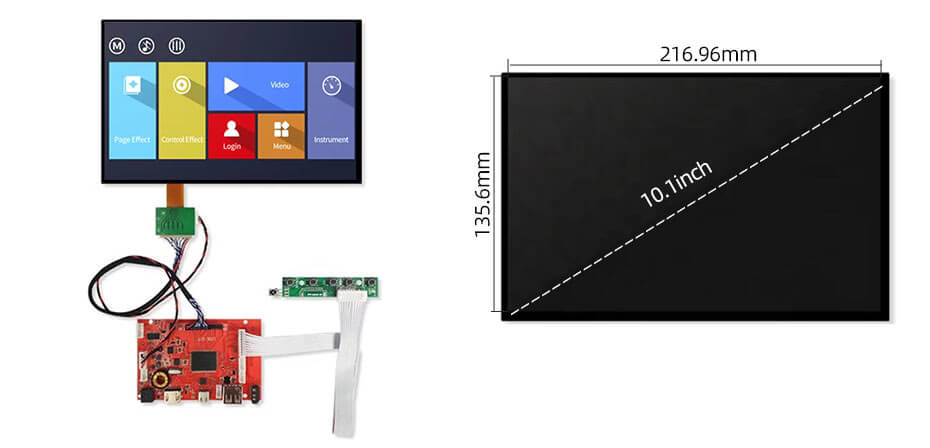

G101ICE-LH2 is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. G101ICE-LH2 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 230.7(W)×152.55(H)×7(D) mm, viewing area size of 218.96(W)×137.6(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 300/315g (Typ./Max.). As a AAS, Normally Black, Transmissive LCM product, G101ICE-LH2 can provides 1200 cd/m² display brightness 800:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 13/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G101ICE-LH2 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

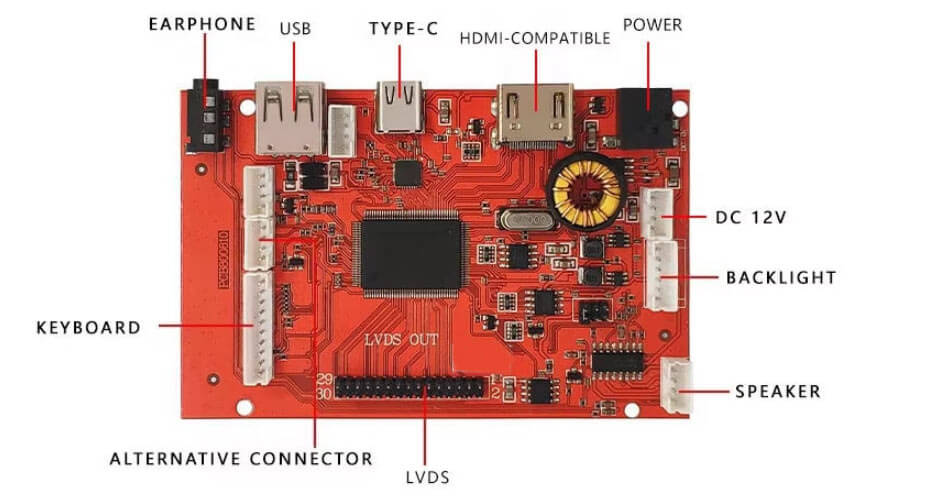

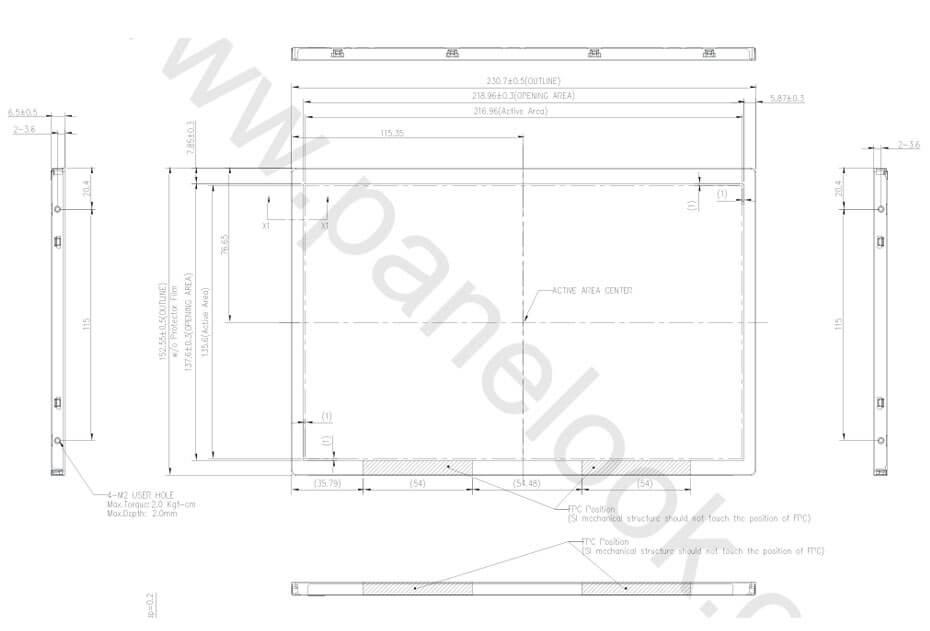

10.1 Inch LCD Display Drawing

PRODUCTION AND MANUFACTURING
