LTL106HL01-001 Samsung 10.6 Inch TFT LCD Display 1920x1080 LVDS Touch Display With Driver Board

10.6 Inch LCD Display Overview

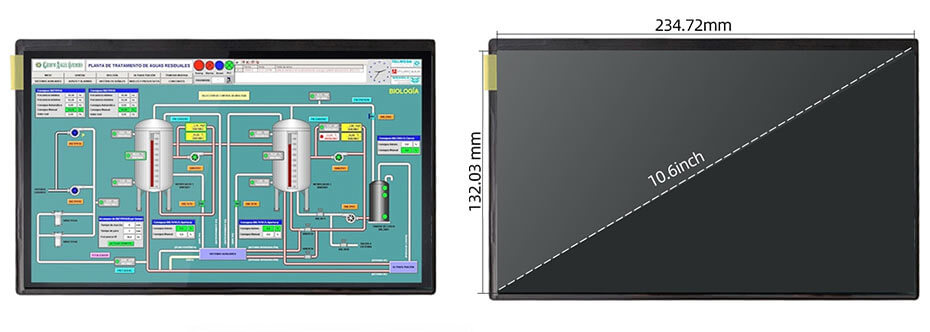

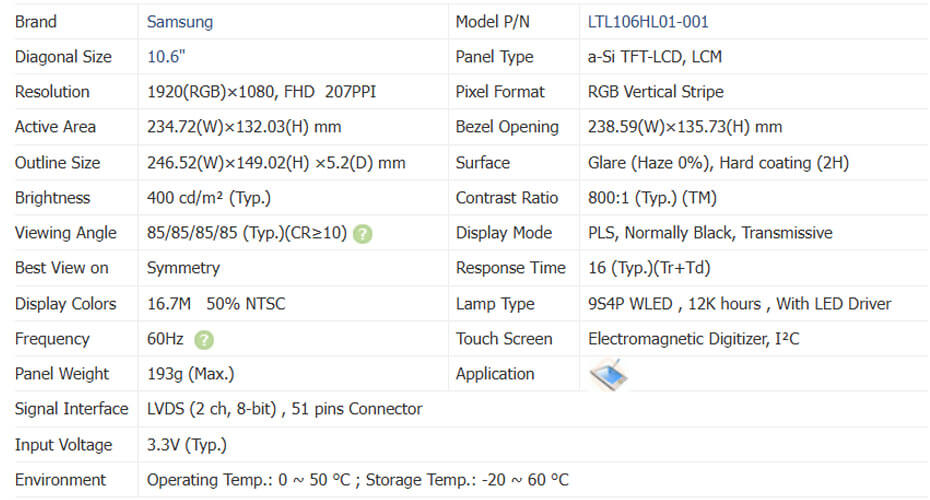

 LTL106HL01-001 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 234.72(W)×132.03(H) mm, outline size of 246.52(W)×149.02(H)×5.2(D) mm, viewing area size of 238.59(W)×135.73(H) mm, with surface treament of Glare (Haze 0%), Hard coating (2H), net weight of 193g (Max.). As a PLS, Normally Black, Transmissive LCM product, LTL106HL01-001 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 9S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, With LED Driver. LTL106HL01-001 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

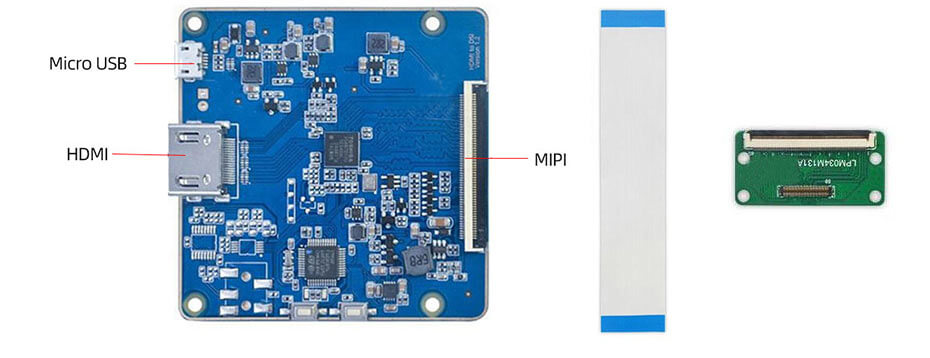

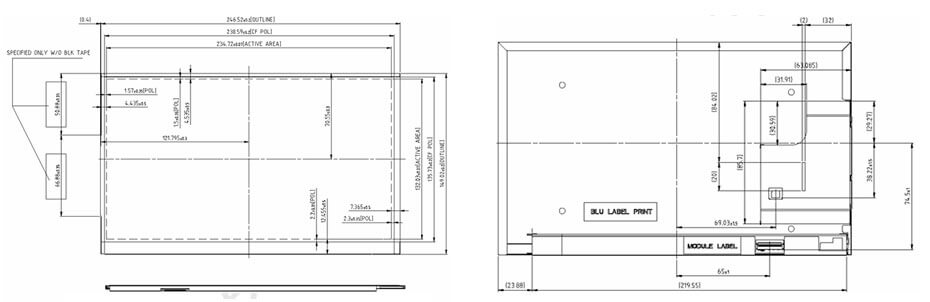

10.6 Inch LCD Display Drawing
