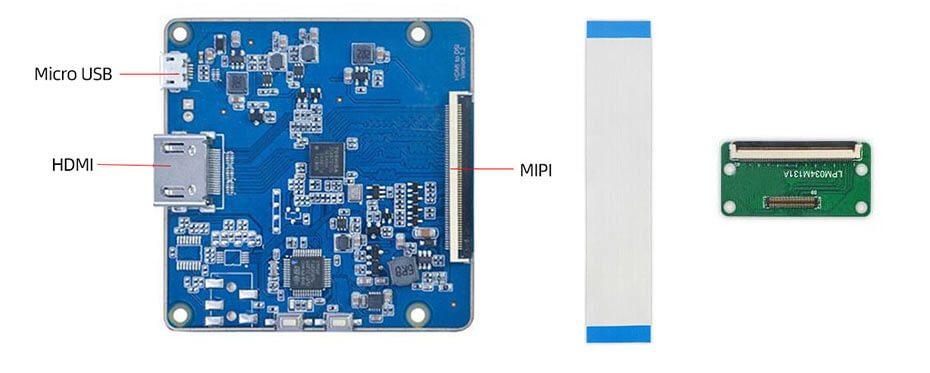

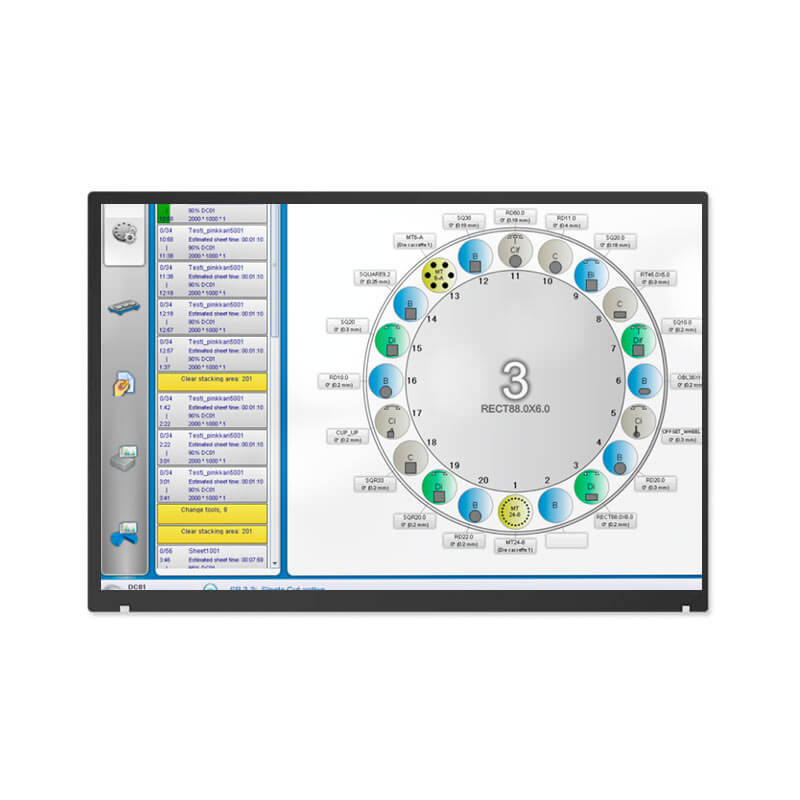

LQ101R1SX01A 10.1 Inch TFT LCD Display 2560x1600 MIPI LCD Module With Driver Board For Medical Equipments

10.1 Inch LCD Display Overview

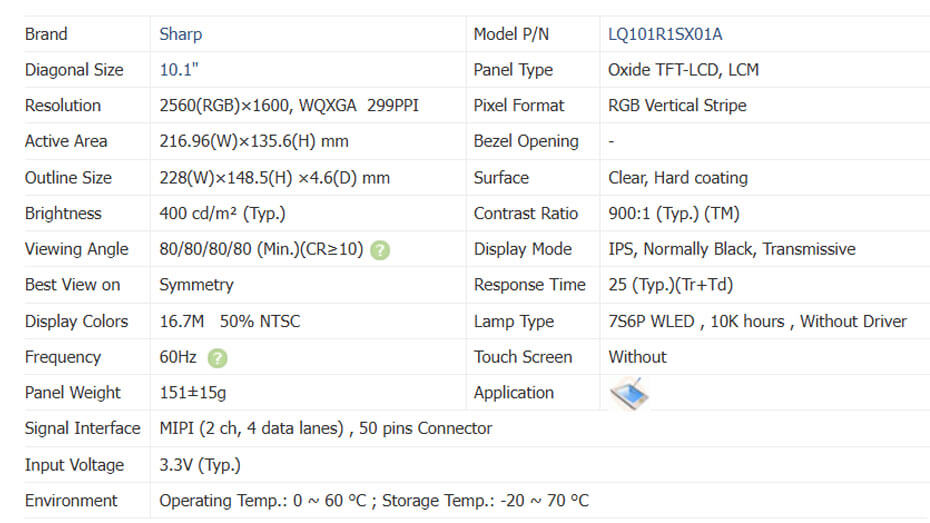

LQ101R1SX01A is a 10.1 inch diagonal Oxide TFT-LCD display screen with an incorporated WLED lighting system, without backlight driver, without touch screen.LQ101R1SX01A supports display 2560(RGB)×1600 (WQXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 299 PPI. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 228(W)×148.5(H)×4.6(D) mm, with surface treament of Clear, Hard coating, net weight of 151±15g. As a IPS, Normally Black, Transmissive LCM product, LQ101R1SX01A can provides 400 cd/m² display brightness 900:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. LQ101R1SX01A utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

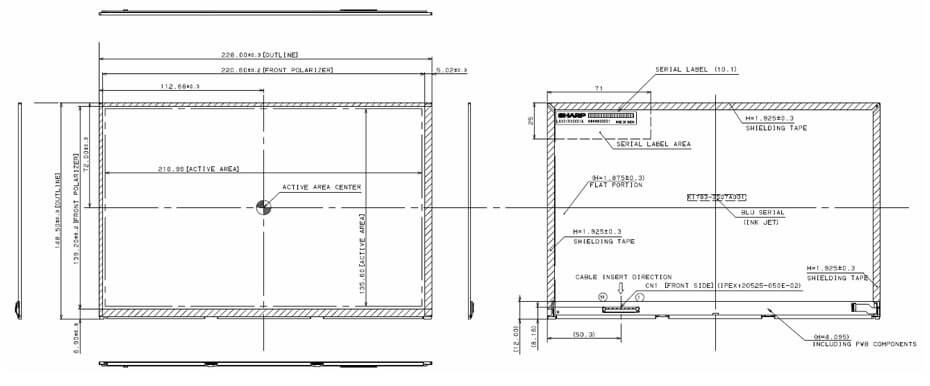

10.1 Inch LCD Display Drawing
