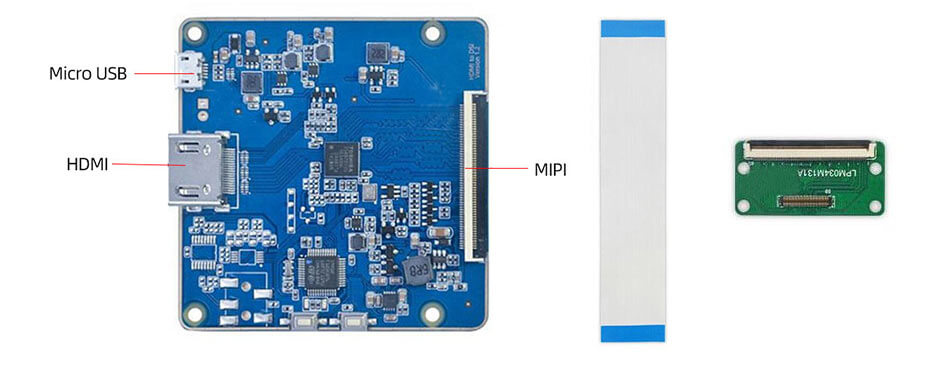

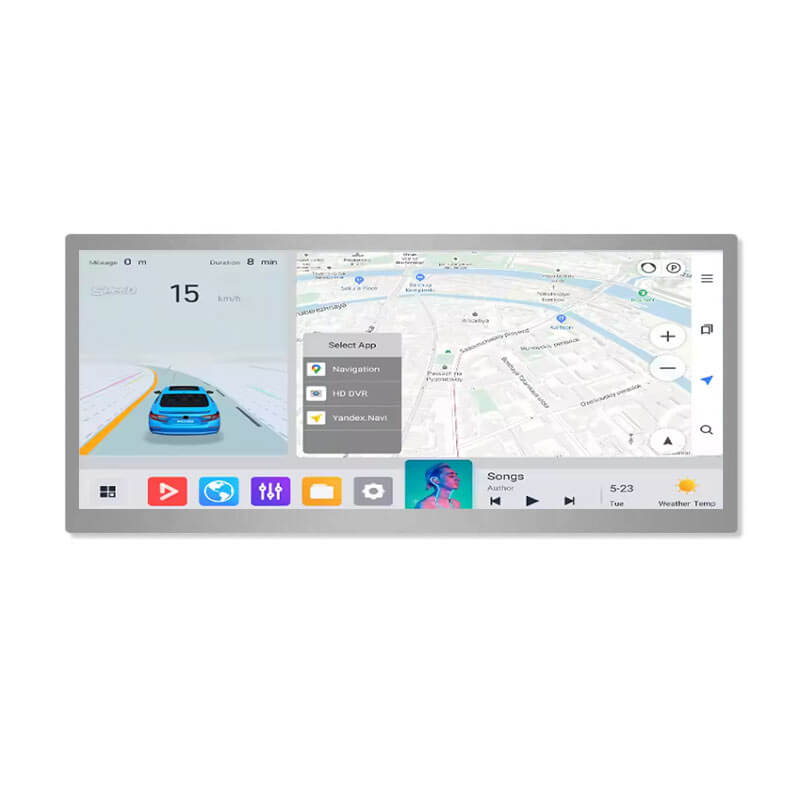

HSD103KPW2-A10 10.3 Inch TFT LCD Display 1920x720 Outdoor High Brightness Wide Temperature LCD Module With Driver Board

10.3 Inch LCD Display Overview

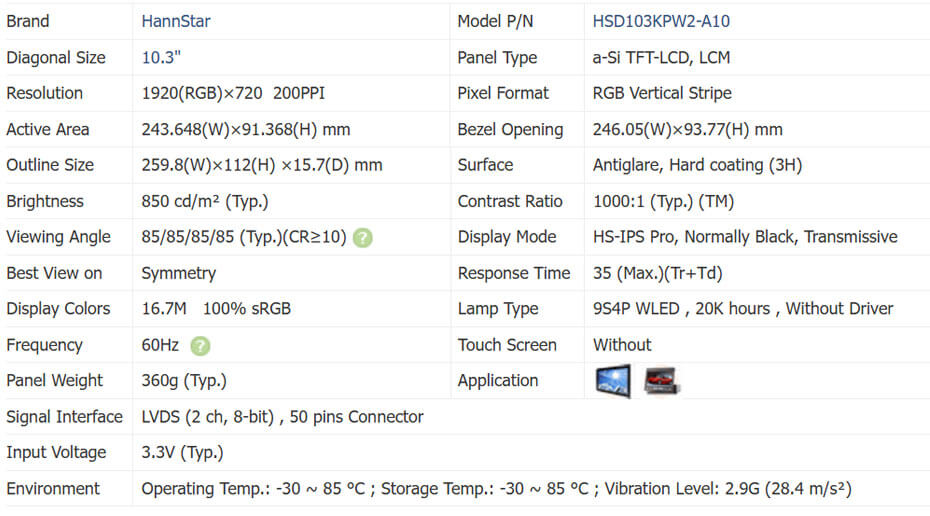

HSD103KPW2-A10 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 243.648(W)×91.368(H) mm, outline size of 259.8(W)×112(H)×15.7(D) mm, viewing area size of 246.05(W)×93.77(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 360g (Typ.). As a HS-IPS Pro, Normally Black, Transmissive LCM product, HSD103KPW2-A10 can provides 850 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 9S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. HSD103KPW2-A10 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

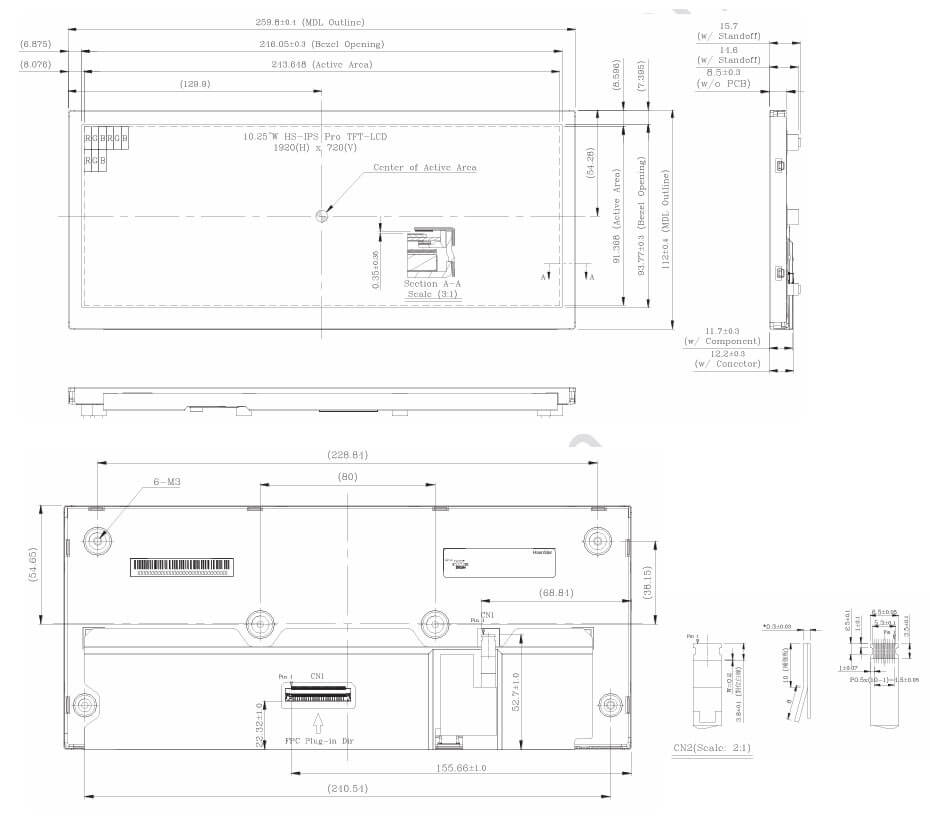

10.3 Inch LCD Display Drawing
