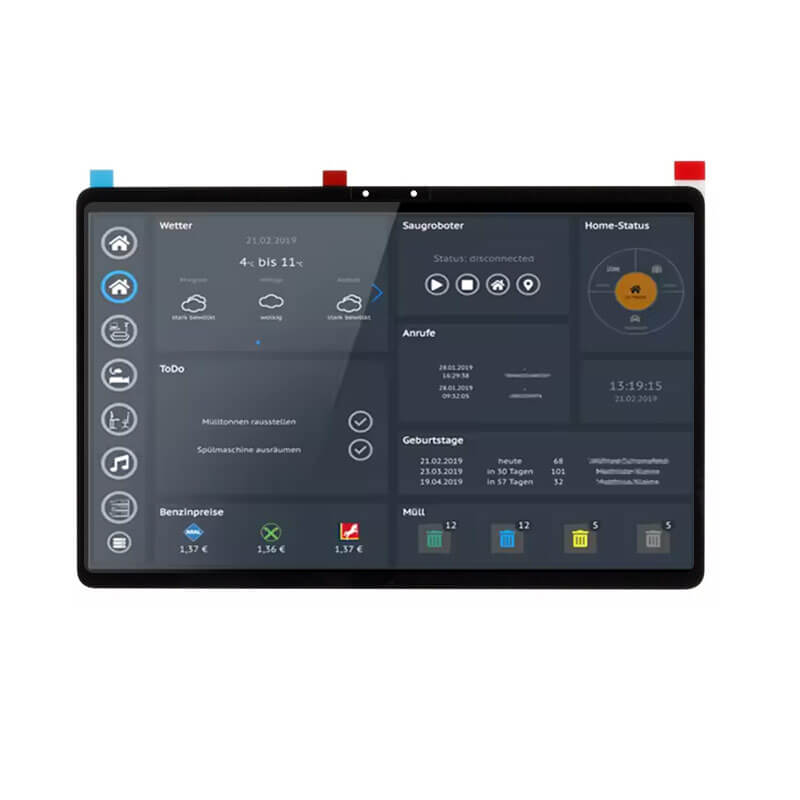

11.5 Inch OLCD Display 2560×1600 MIPI IPS AMOLED Display With On-Cell Touch

11.5 Inch AMOLED Display Overview

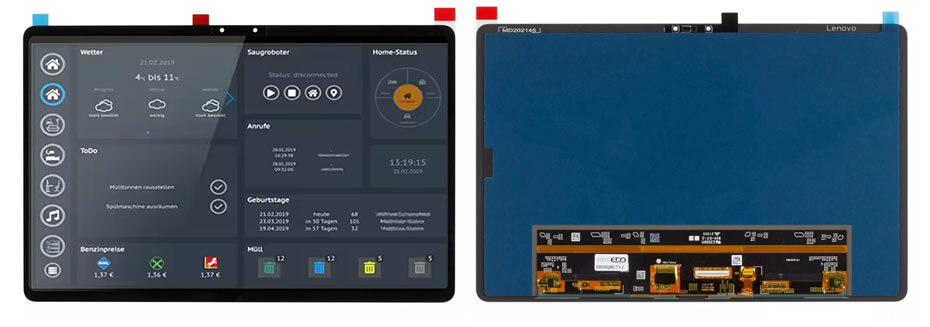

EB50QBC73.C is a 11.5 inch diagonal AM-OLED display screen product from EDO, it self emiting, touchscreen On-Cell Touch. EB50QBC73.C supports display 2560(RGB)×1600 (WQXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 262 PPI. As for mechanical detail, it features active area of 247.68(W)×154.8(H) mm, outline size of 261.88(W)×169(H) mm. EB50QBC73.C can provides 350 cd/m² display brightness 60000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 2 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself and have a working life time of 10K hours. EB50QBC73.C utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm Connector. It's typical vertical frame rate (Fv) is 60Hz.

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
