0.48"-5" LCD Display (2.8")

2.8 Inch Round Display 480×480 RGB Circular Display with Capacitive Touchscreen & HDMI Driver Board

Part No.:ET028CR02-GX
Size:2.8″ inch
Resolution:480x480
Panel Interface:RGB
Display mode:Normally Black
Outline Dimension:73.03x76.48x2.3mm
Active Area:/
Viewing Angle L/R/U/D:IPS Full View
Brightness（cd/m2）:350nits
Operation / Storage Temp:-20~60°C / /
Touch:no

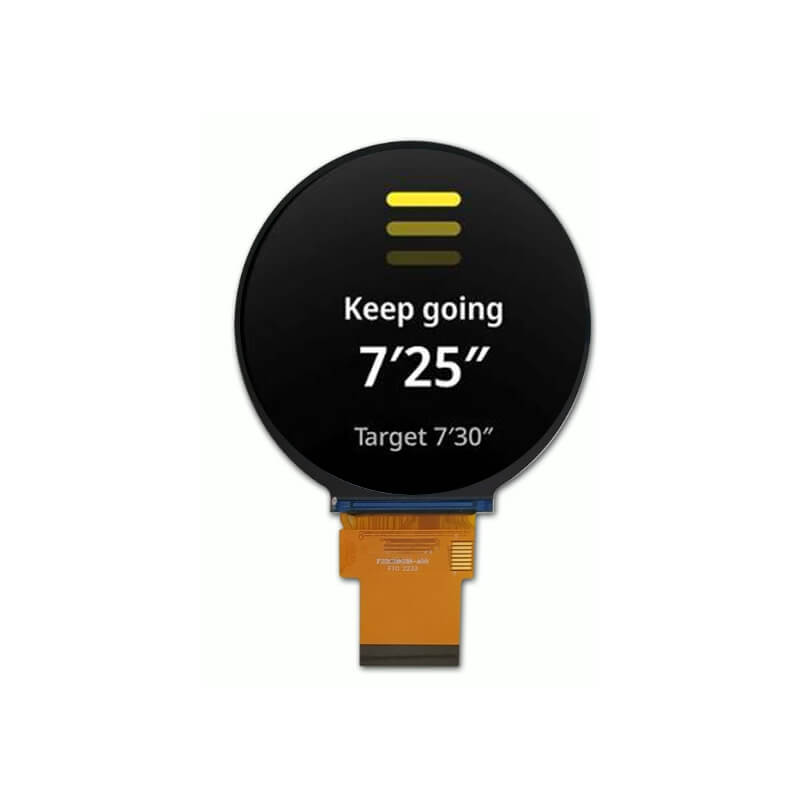

2.8 Inch Round Display 480×480 RGB Circular Display with Capacitive Touchscreen & HDMI Driver Board Overview
ET028CR02-GX is a 2.8-inch round RGB TFT-LCD display featuring a 480×480 resolution and a Normally Black display mode. It uses an RGB interface and provides an IPS full-view viewing angle for clear and consistent image quality from different directions. The display features a brightness of 350 cd/m² and an outline dimension of 73.03(W) × 76.48(H) × 2.30(D) mm. ET028CR02-GX supports an operating temperature range of -20°C to 60°C and is designed for compact embedded applications requiring a high-quality circular display. A capacitive touchscreen and HDMI driver board can be offered as optional solutions for complete display applications.

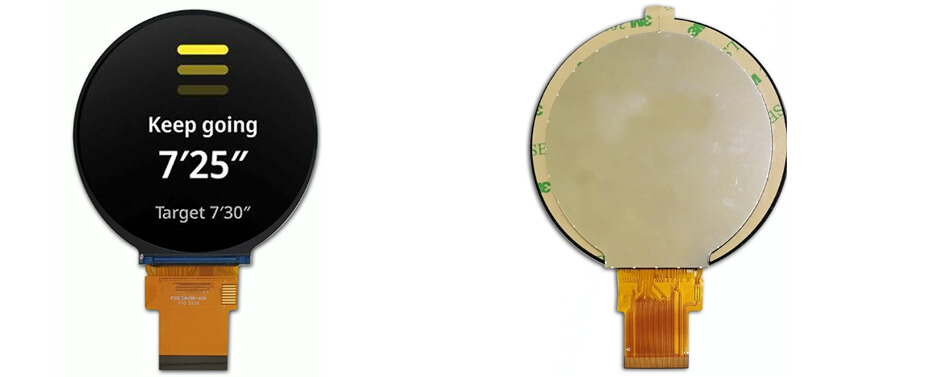

2.8 Inch Round Display 480×480 RGB Circular Display with Capacitive Touchscreen & HDMI Driver Board
2.8 Inch Circular Display Drawing

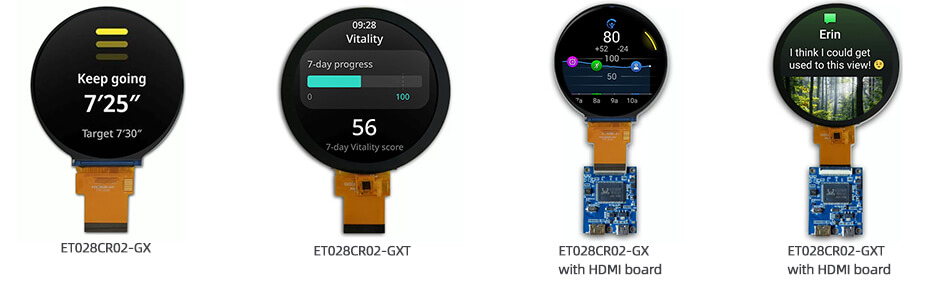

More 2.8 Inch Circular Display Solution For Reference
ET028CR02-GX (Non Touch)
ET028CR02-GXT (Capacitive Touch)
ET028CR02-GX with HDMI board
ET028CR02-GXT with HDMI board
2.8 Inch Round Display 480×480 RGB Circular Display with Capacitive Touchscreen & HDMI Driver Board
