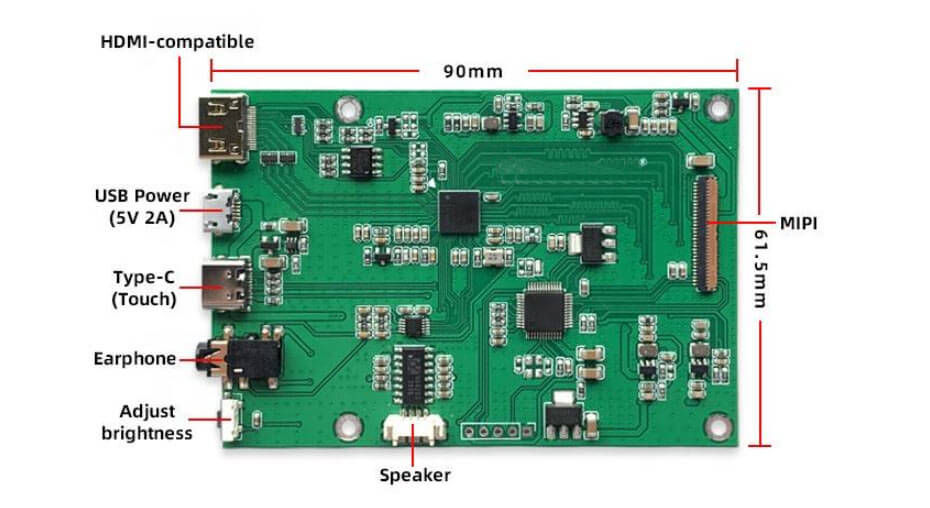

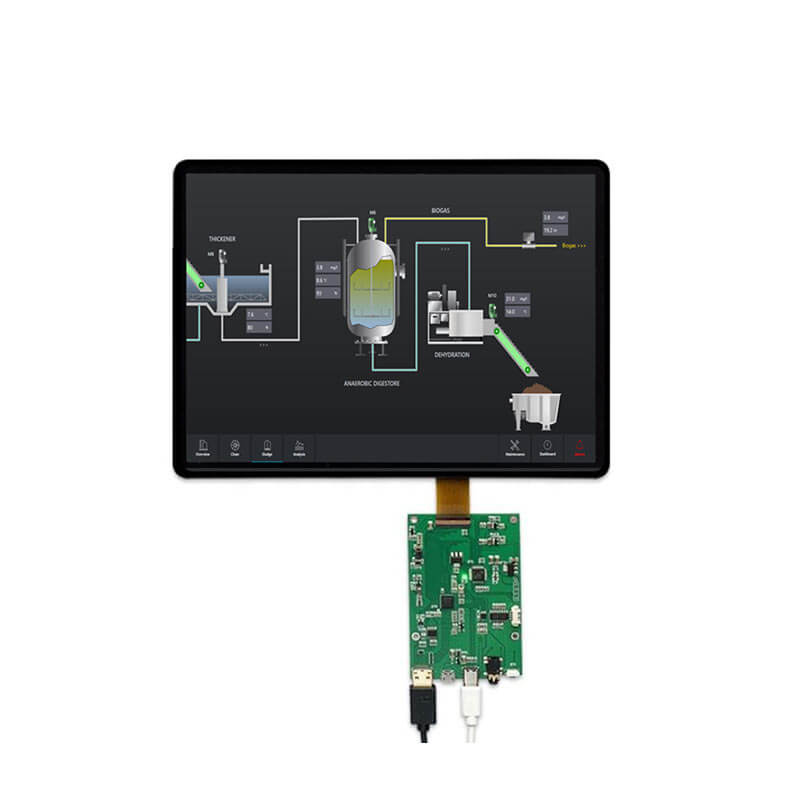

EB00QBC73.A 11 Inch AMOLED Display 1728x2368 MIPI Touch OLED Display With Driver Board

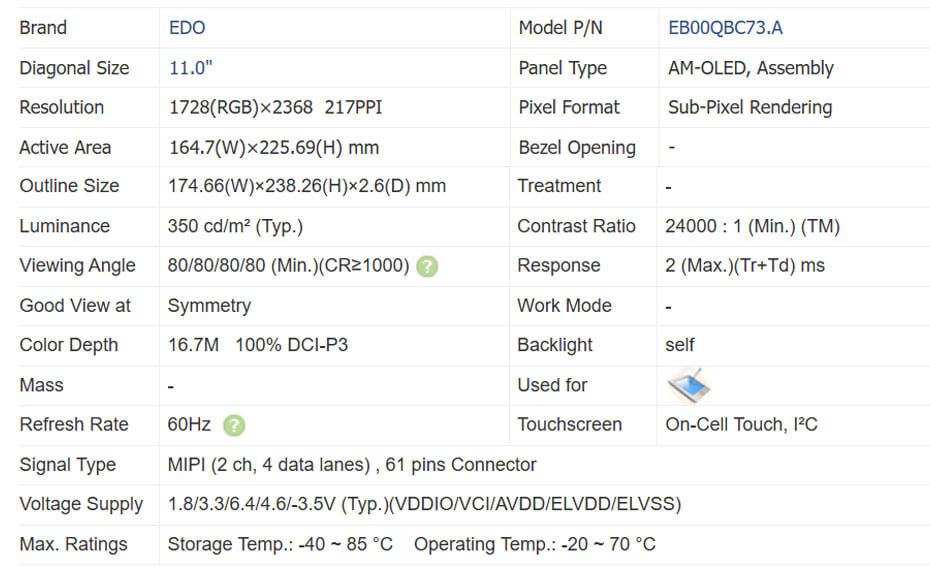

Part No.:EB00QBC73.A
Size:11″ inch
Resolution:1728x2368
Panel Interface:MIPI (2 ch,4 data lanes)
Display mode:/
Outline Dimension:174.66x238.26mm

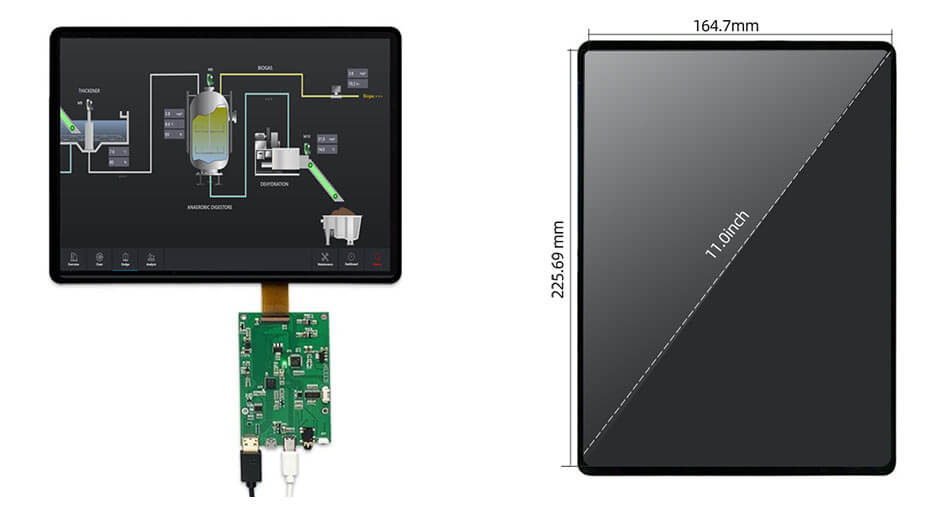

Active Area:164.7x225.69mm
Viewing Angle L/R/U/D:80/80/80/80 (Min.)
Brightness（cd/m2）:350cd/m²(Typ.)
Operation / Storage Temp:-20~70°C / -40~85°C
Touch:yes

11 Inch AMOLED Display Overview
EB00QBC73.A supports display 1728(RGB)×2368 with aspect ratio of 3:4 (W:H), whose pixels are arranged in Sub-Pixel Rendering. It features active area of 164.7(W)×225.69(H) mm, outline size of 174.66(W)×238.26(H)×2.6(D) mm. EB00QBC73.A can provides 350 cd/m² display brightness 24000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥1000) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 2 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself . EB00QBC73.A utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 61 pins Connector with power supply voltage of 1.8/3.3/6.4/4.6/-3.5V (Typ.)(VDDIO/VCI/AVDD/ELVDD/ELVSS). It's typical vertical frame rate (Fv) is 60Hz.
