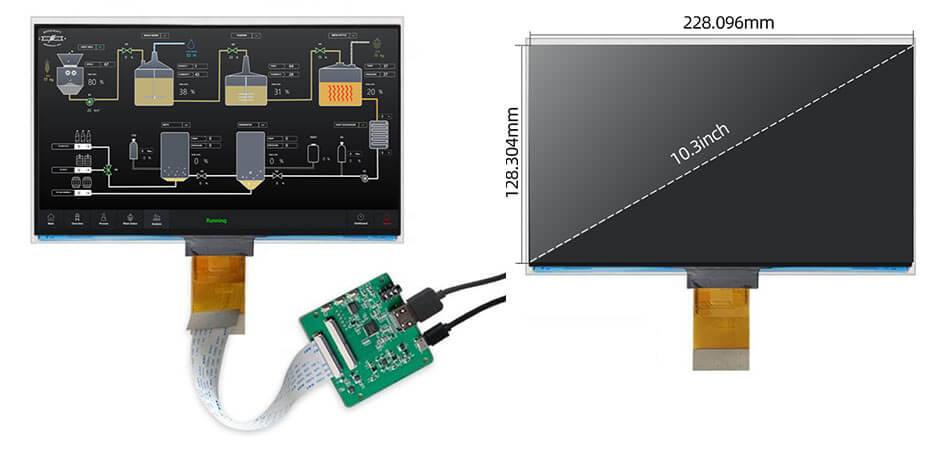

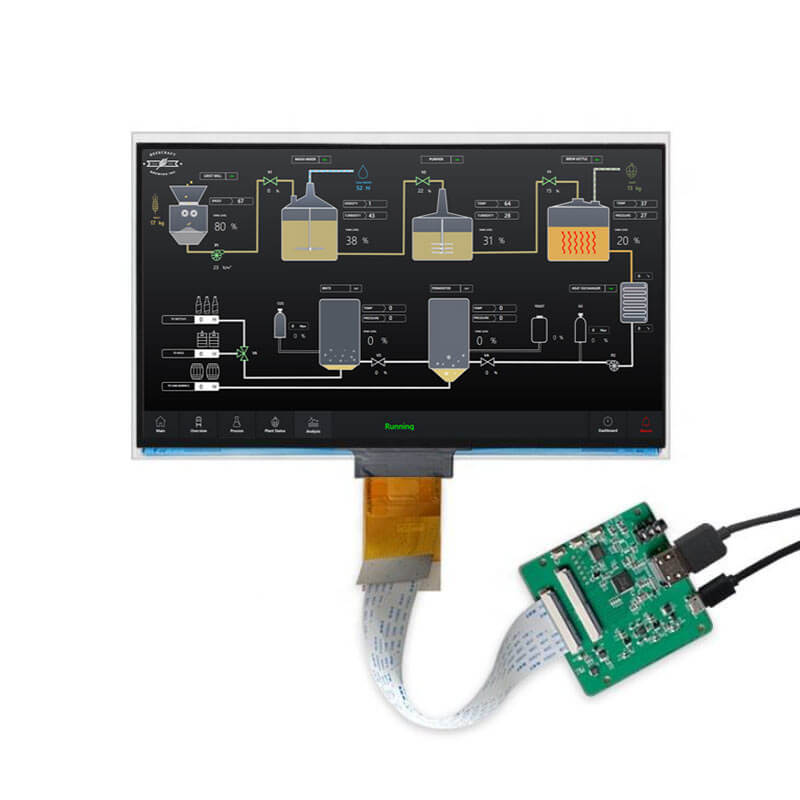

10.3 Inch TFT LCD Display 7680x4320 MIPI DSI Monochrome 8K LCD Module With Driver Board

Part No.:ET103M8K01
Size:10.3″ inch
Resolution:7680x4320
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:232.096x138.402mm
Active Area:228.096x128.304mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:/
Operation / Storage Temp:-20~60°C / -40~80°C
Touch:no

10.1 Inch LCD Display Overview
ET103M8K01 is a 10.3-inch TFT LCD display featuring an ultra-high monochrome resolution of 7680×4320 (8K) with a transmissive display mode. It adopts a MIPI DSI interface and provides an active area of 228.096 × 128.304 mm within an outline dimension of 232.096 × 138.402 mm. The display offers wide 80° viewing angles in all directions, supports operation from −20 to 60 °C (storage −40 to 80 °C), is supplied with a driver board, and does not support touch functionality.

Product Tags: Mono TFT LCD, Wide Temperature LCD, IPS LCD
Application: 3D Printer, Industrial
Panel Type: LTPS TFT-LCD
Panel Composition: LCM
Panel Size: 10.3"
Resolution: 7680×4320
Aspect Ratio: 16:9 (W:H)
Form Factor: Flat Rectangle
Active Area: 228.096x128.304mm
Outline Dimension: 232.096x138.402mm
Max. Depth: 1.24 mm
LC Family: IPS
Polarizer: Transmissive
Contrast Ratio: 300:1 (Min.)
Viewing Angle: 80/80/80/80 (L/R/U/D)
Interface Type: MIPI
